Darkmatter® · Designed and manufactured in India

Stack 750

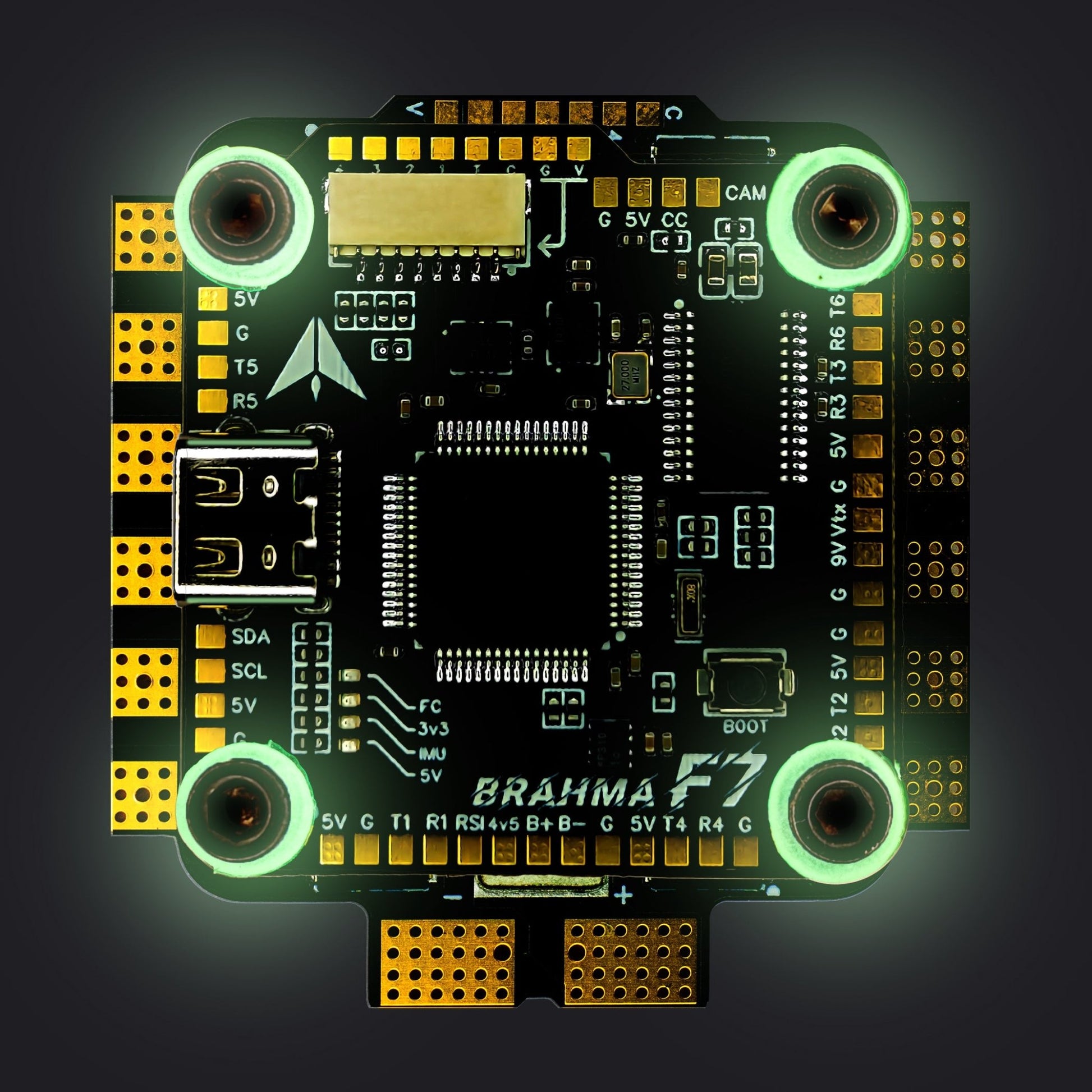

The actual 3D design of the stack: Brahma F7 on Vishnu 50. Turn it over and look at it from any side.

Darkmatter® Stack 750
Applications · on the frame

Where the Stack 750 goes.

Four M3 screws come up through the frame on the standard 30.5 × 30.5 mm pattern. Scroll to build it in.

Soft mount

Grommets first.

A soft TPE grommet presses into each mounting hole, so frame vibration stays out of the gyros. We injection-mould them ourselves.

Stack

Vishnu, then Brahma.

The Vishnu 50 slides down the screws first. The Brahma F7 sits on top.

Lock it down

Four nuts. One cable.

An 8-pin cable links the two boards. Tighten four nuts, close the frame, and you are wired.

What you can build

One stack.
Many machines.

01 · The stack

One board thinks.
One board moves.

Brahma F7 flight controller + Vishnu 50 4-in-1 ESC on a standard 30.5 × 30.5 mm pattern. Keep scrolling to take it apart.

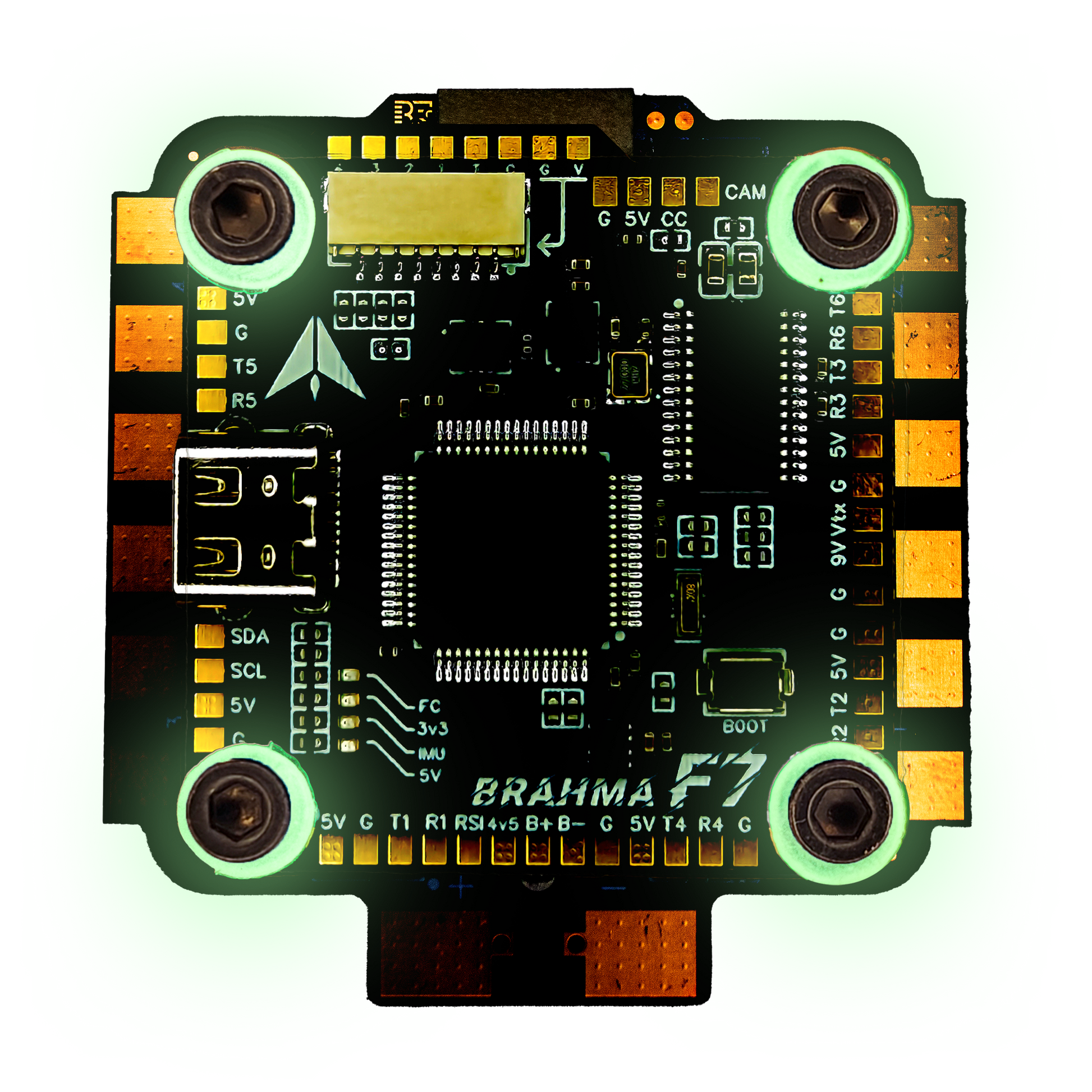

02 · Brahma F7 · the brain

Flight controller

  • MCUSTM32F722
  • GyroICM42688P
  • Ports6 UART · I²C
  • MotorsUp to 8
  • Logging32MB Blackbox
  • VideoHD FPV plug port

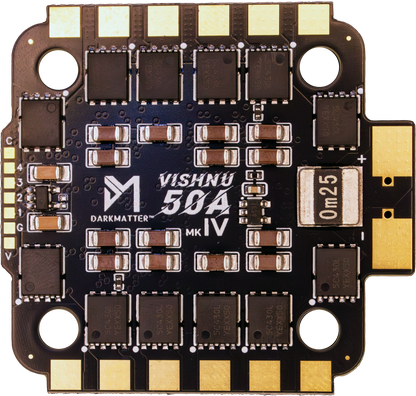

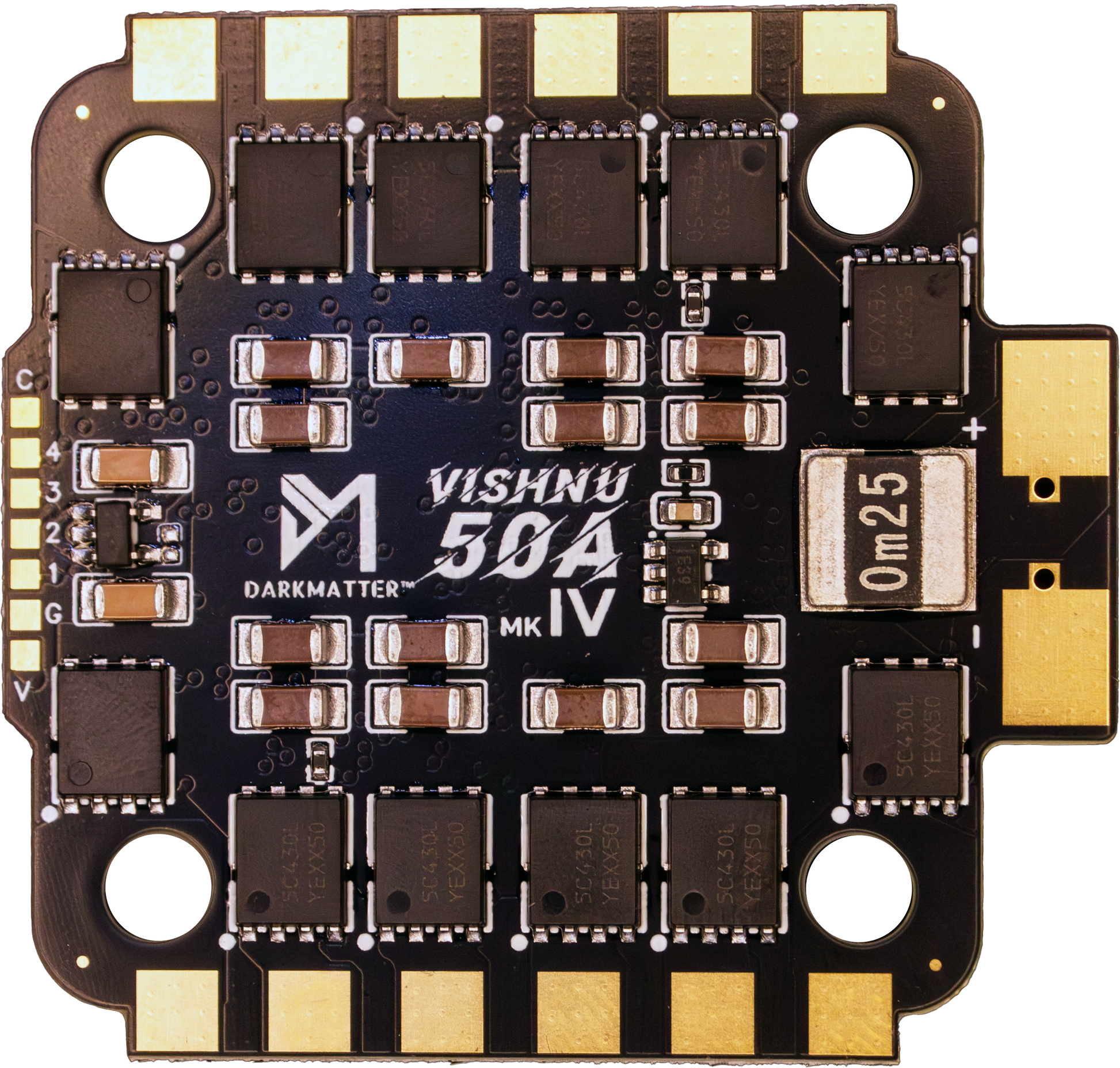

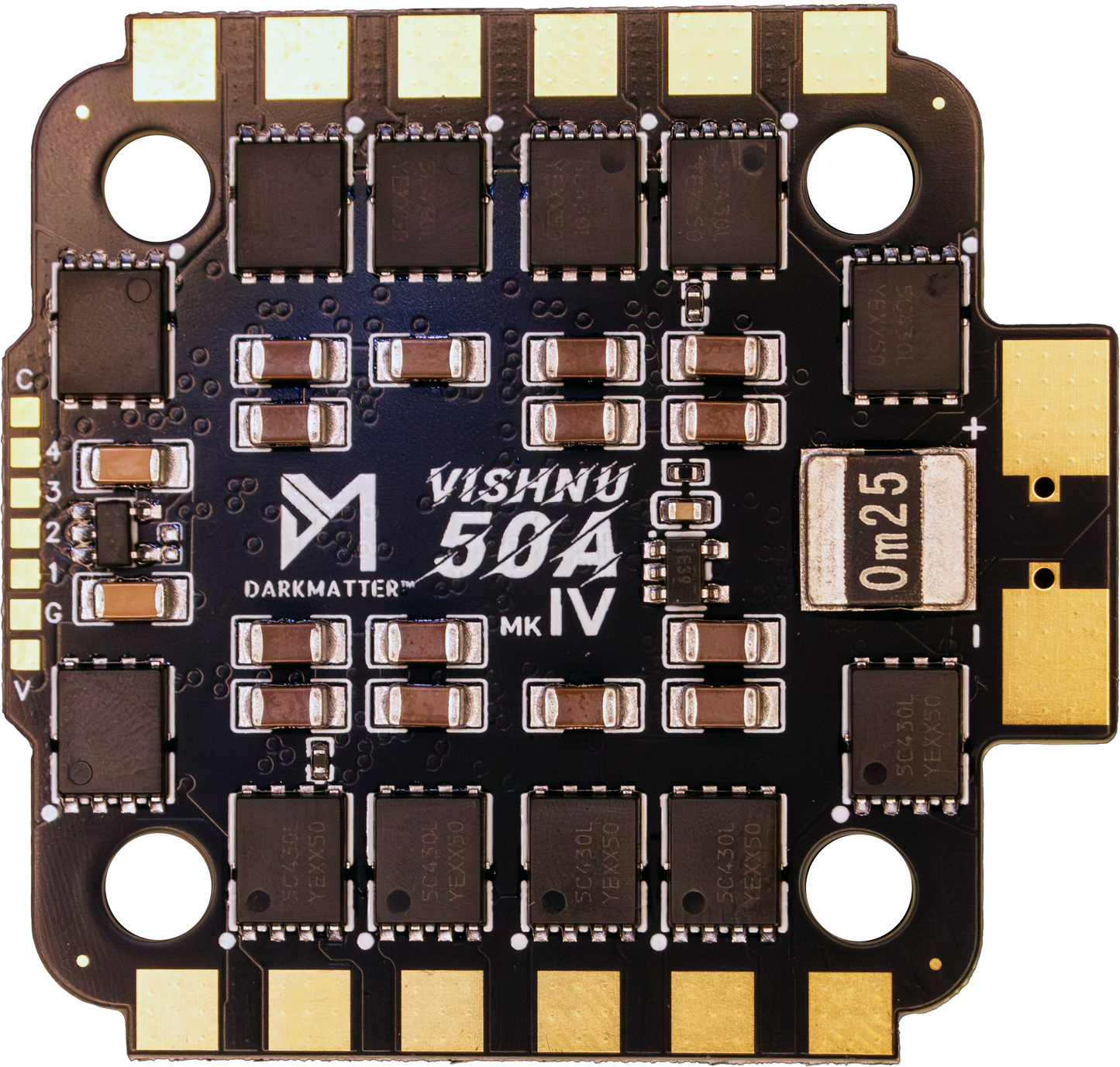

03 · Vishnu 50 · the muscle

Vishnu 50

  • Current50A · 70A burst (5s)
  • Input2S-6S LiPo or Li-ion
  • ProtocolDShot300 / 600
  • SensingInbuilt current sensor
  • Mounting30.5 × 30.5
  • Weight13g

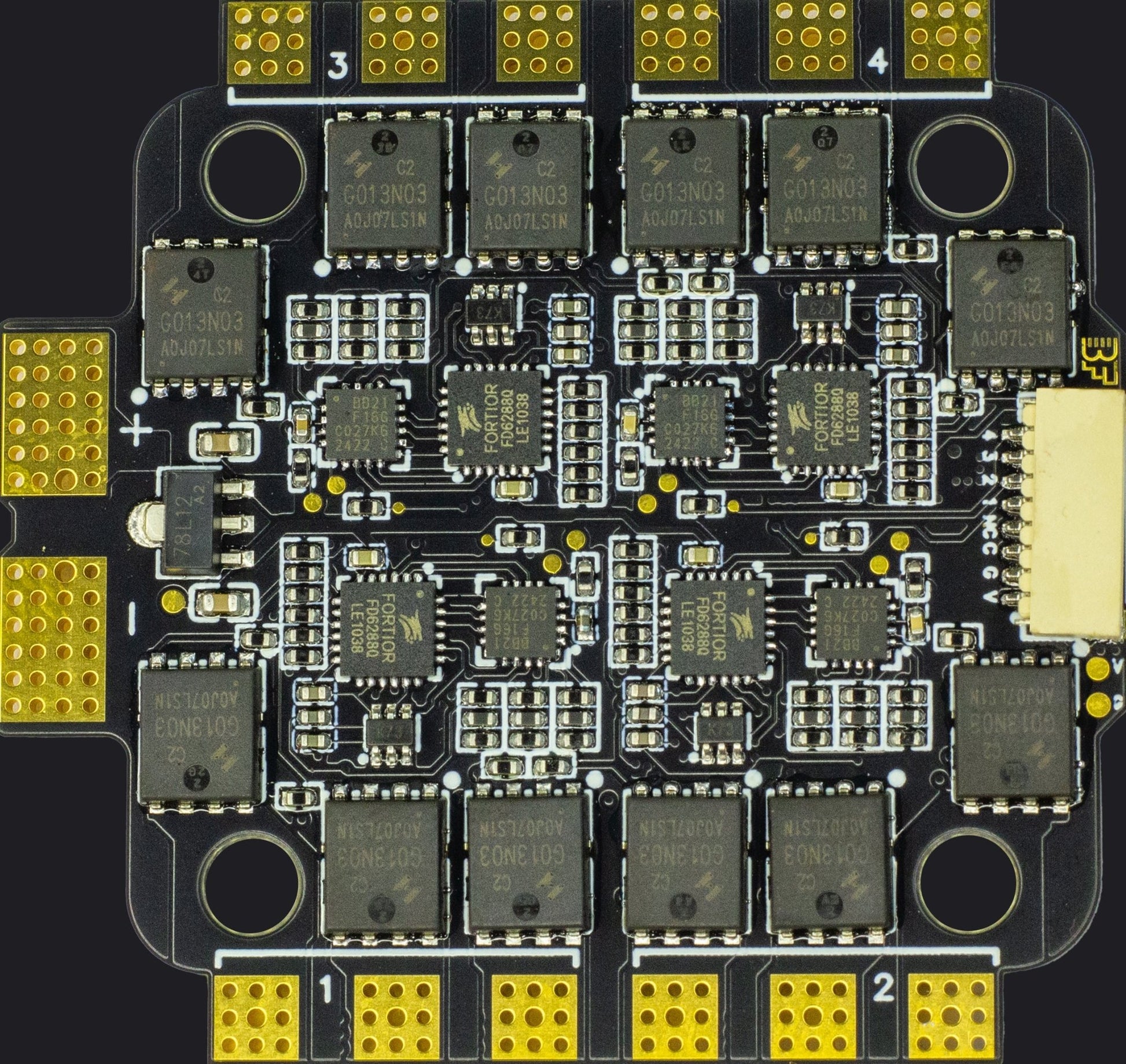

04 · Turn it over

VISHNU
50

Four-in-one, 200A continuous. Field tested and proven.

05 · Together

Drop in.
Flash. Fly.

Tuned as a pair and shipped as one stack, with every accessory in the box.

Brahma F7 and Vishnu 50 stack
Real 3D models · scroll to explore
Spec sheet

Stack 750 specifications

Brahma F7 flight controller and Vishnu 50 4-in-1 ESC, matched and shipped as one stack on a standard 30.5 × 30.5 mm mount.

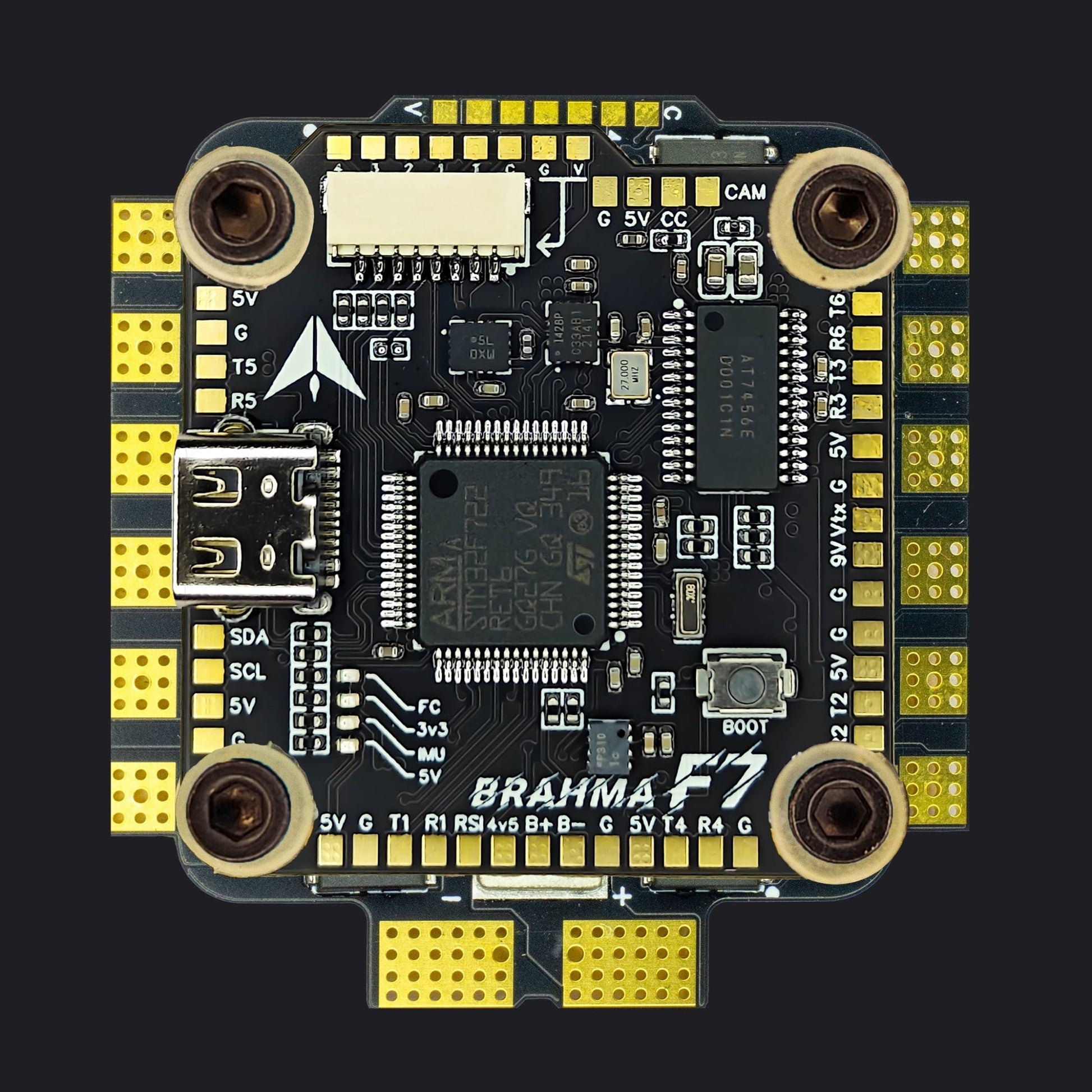

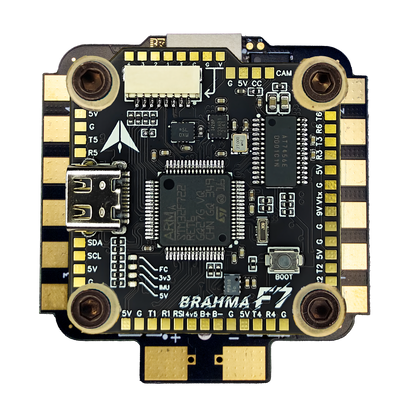

Brahma F7 flight controller

ProcessorSTM32F722
GyroscopeICM42688P
BarometerDPS310
On-screen displayAT7456E (analog)
Blackbox32MB onboard flash
USBType-C
FirmwareBetaflight, INAV
UARTs6
I²CYes, for compass, airspeed and other sensors
Motor outputs8 (M1–M8)
5V output2A
9V output2A, for digital VTX
4.5V outputPowered over USB, for the receiver while configuring
3.3V outputFor compasses and sensors
Digital FPVHD FPV plug-and-play port
InputsRSSI, SBUS
ProtectionReverse polarity, USB ESD, power filtering
Mounting30.5 × 30.5 mm (M3)
Dimensions39 × 37 × 5 mm
Weight9 g
Made inDesigned and manufactured in India (Bally, West Bengal)

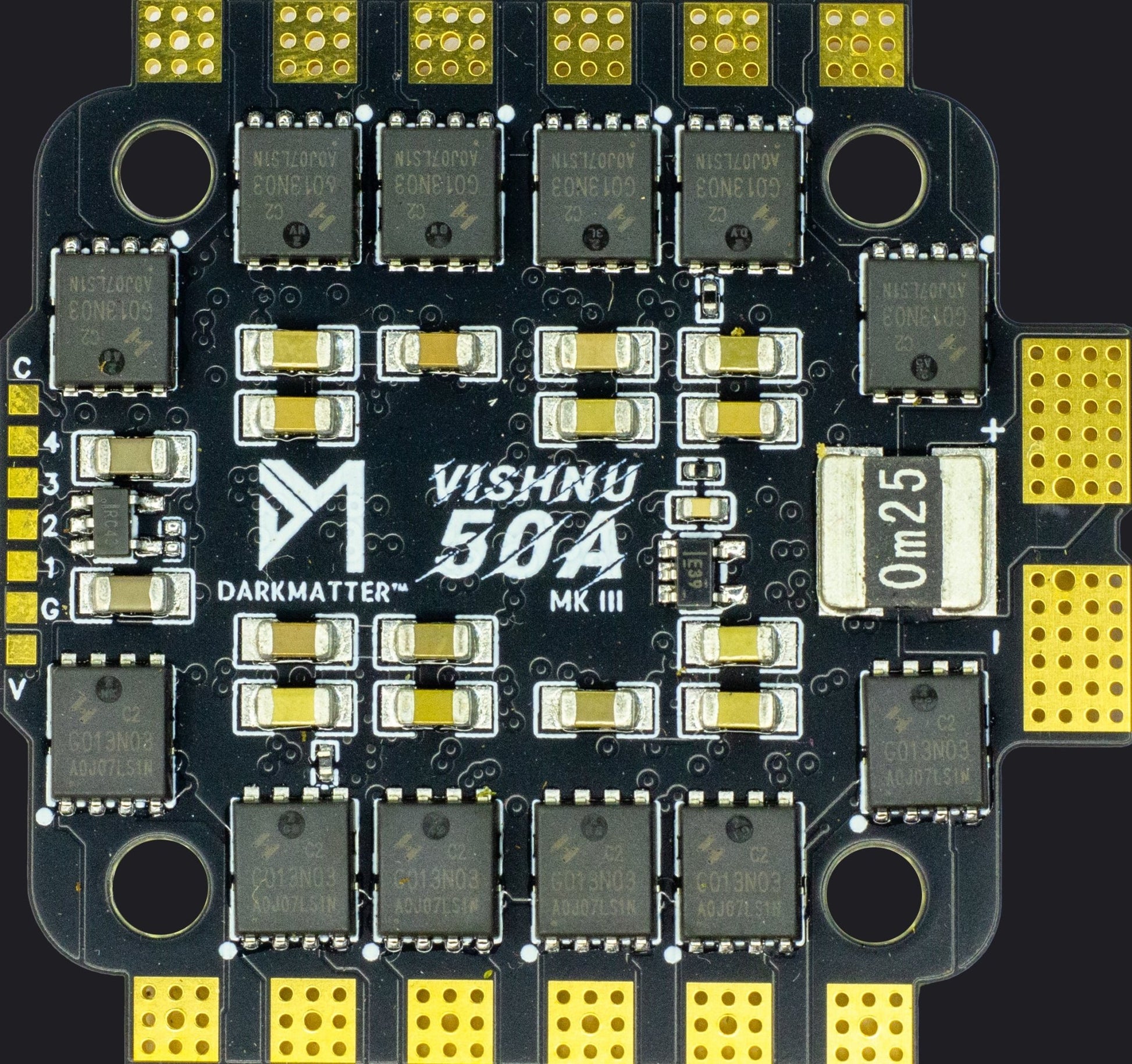

Vishnu 50 ESC

Type4-in-1 ESC
Continuous current50A per channel, 200A in total
Burst current70A for 5 seconds
FirmwareBLHeli_S or BlueJay
ProtocolDShot300 / DShot600
Input2S-6S LiPo or Li-ion
Current sensorBuilt in
Motors1900KV or below on 6S
CapacitorLow-ESR 1000 µF included
Flight controller connection8-pin plug, or direct solder pads
Mounting30.5 × 30.5 mm
Dimensions46 × 48.8 × 5.7 mm
Weight13 g
Operating temperature−20 °C to 70 °C
Made inDesigned and manufactured in India (Bally, West Bengal)
Ready when you are

Book your Stack 750

Message us on WhatsApp. We reply with availability, price and delivery time, and help you pick the right parts for your build.

Book on WhatsApp
Skip to product information
1 of 7

Darkmatter®

STACK 750

STACK 750

Designed & Manufactured In India 🇮🇳

Regular price Rs. 11,399.00
Regular price Rs. 17,999.00 Sale price Rs. 11,399.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Firmware

Choose the firmware we pre-flash for you. You can flash any supported firmware yourself later.

Quantity

Brahma F7 flight controller and Vishnu 50 4-in-1 ESC, matched and shipped as one stack on a standard 30.5 × 30.5 mm mount.

Full specs ↓
View full details

Meet India's First F722 Stack For FPV Drones

User manual

Stack 750 user manual

Point at any label to see the wire and the part it belongs to. Step through the flashing guides. Zoom in on anything.

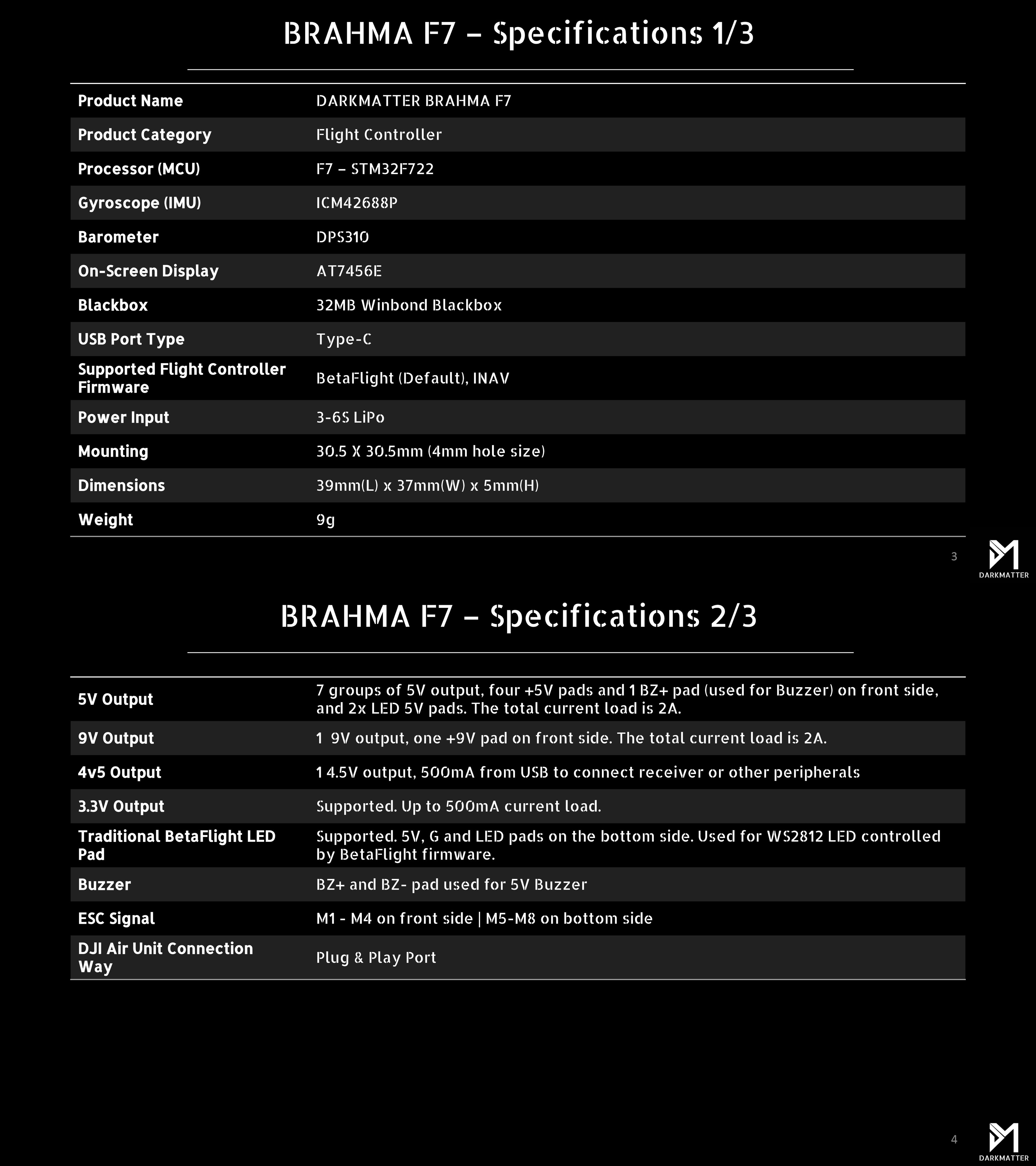

BRAHMA F7: Specifications 1/3

Point at a label or a wire to trace it. Click to keep it lit. Double-click to zoom.

Read the Stack 750 manual as text

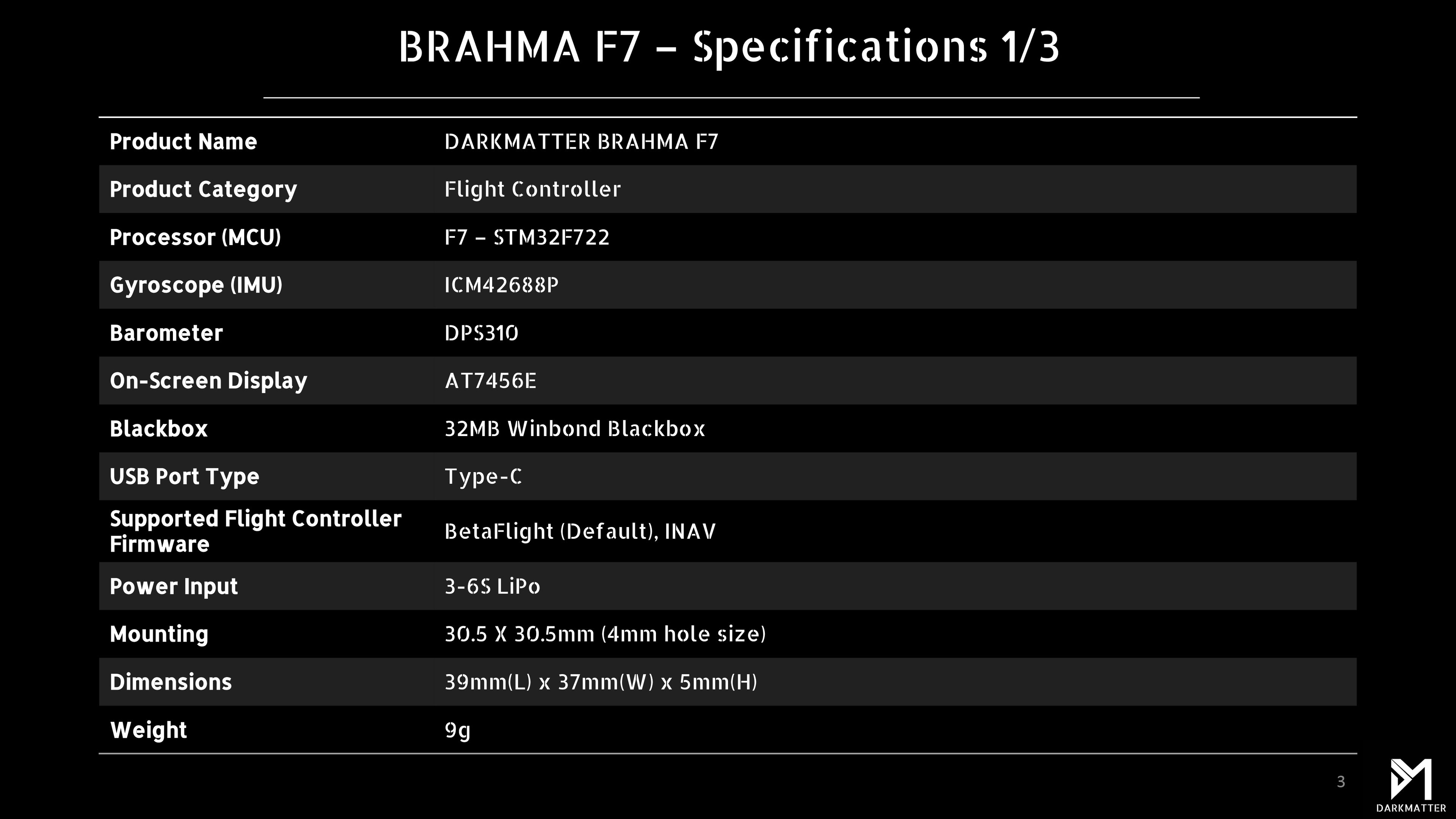

BRAHMA F7: Specifications 1/3

Product NameDarkmatter® Brahma F7
Product CategoryFlight Controller
Processor (MCU)F7 – STM32F722
Gyroscope (IMU)ICM42688P
BarometerDPS310
On-Screen DisplayAT7456E
Blackbox32MB Winbond Blackbox
USB Port TypeType-C
Supported Flight Controller FirmwareBetaFlight (Default), INAV
Power Input2S-6S LiPo or Li-ion
Mounting30.5 X 30.5mm (4mm hole size)
Dimensions39mm(L) x 37mm(W) x 5mm(H)
Weight9g

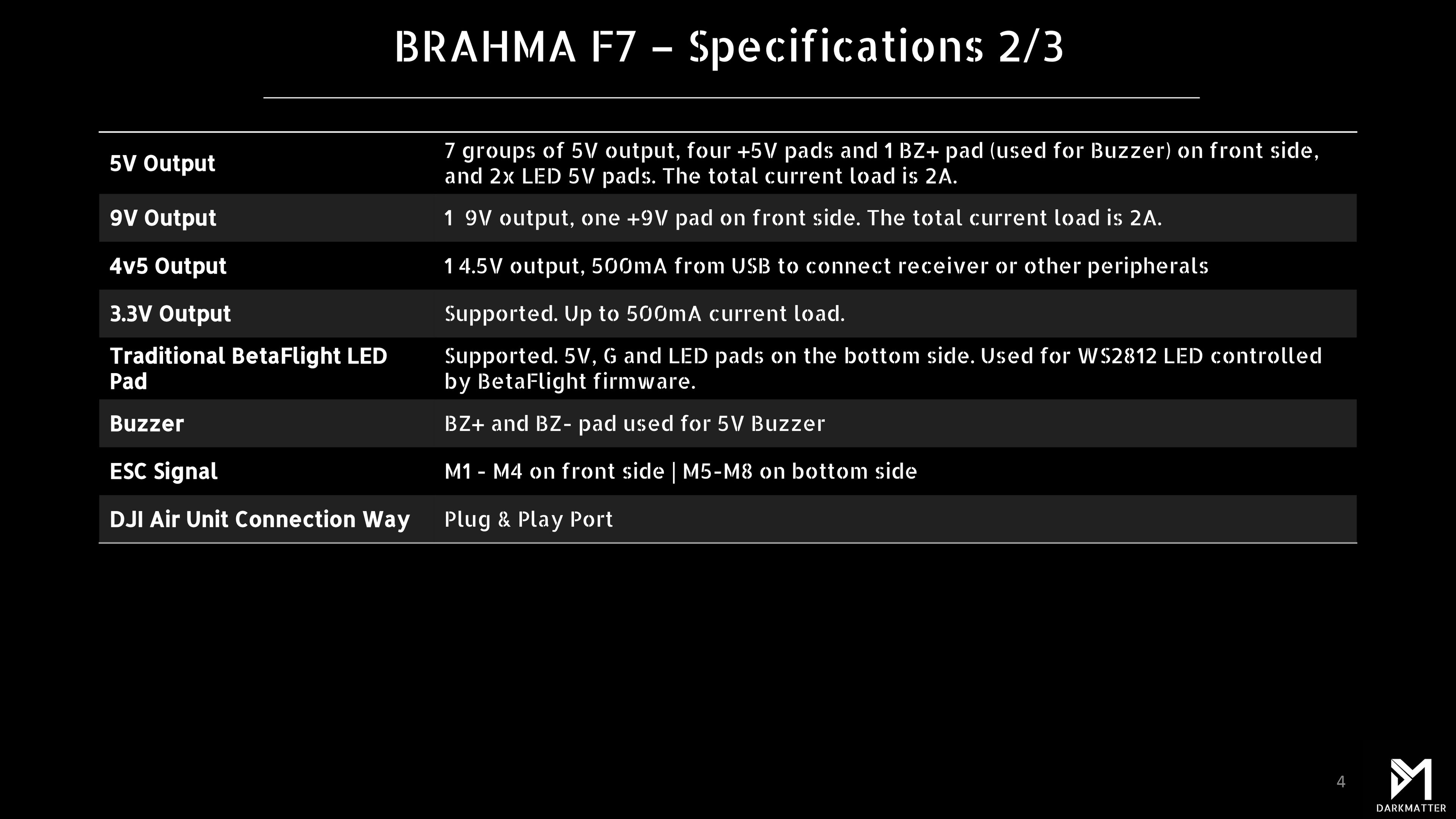

BRAHMA F7: Specifications 2/3

5V Output7 groups of 5V output, four +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 2x LED 5V pads. The total current load is 2A.
9V Output1 9V output, one +9V pad on front side. The total current load is 2A.
4v5 Output1 4.5V output, 500mA from USB to connect receiver or other peripherals
3.3V OutputSupported. Up to 500mA current load.
Traditional BetaFlight LED PadSupported. 5V, G and LED pads on the bottom side. Used for WS2812 LED controlled by BetaFlight firmware.
BuzzerBZ+ and BZ- pad used for 5V Buzzer
ESC SignalM1 - M4 on front side | M5-M8 on bottom side
DJI Air Unit Connection WayPlug & Play Port

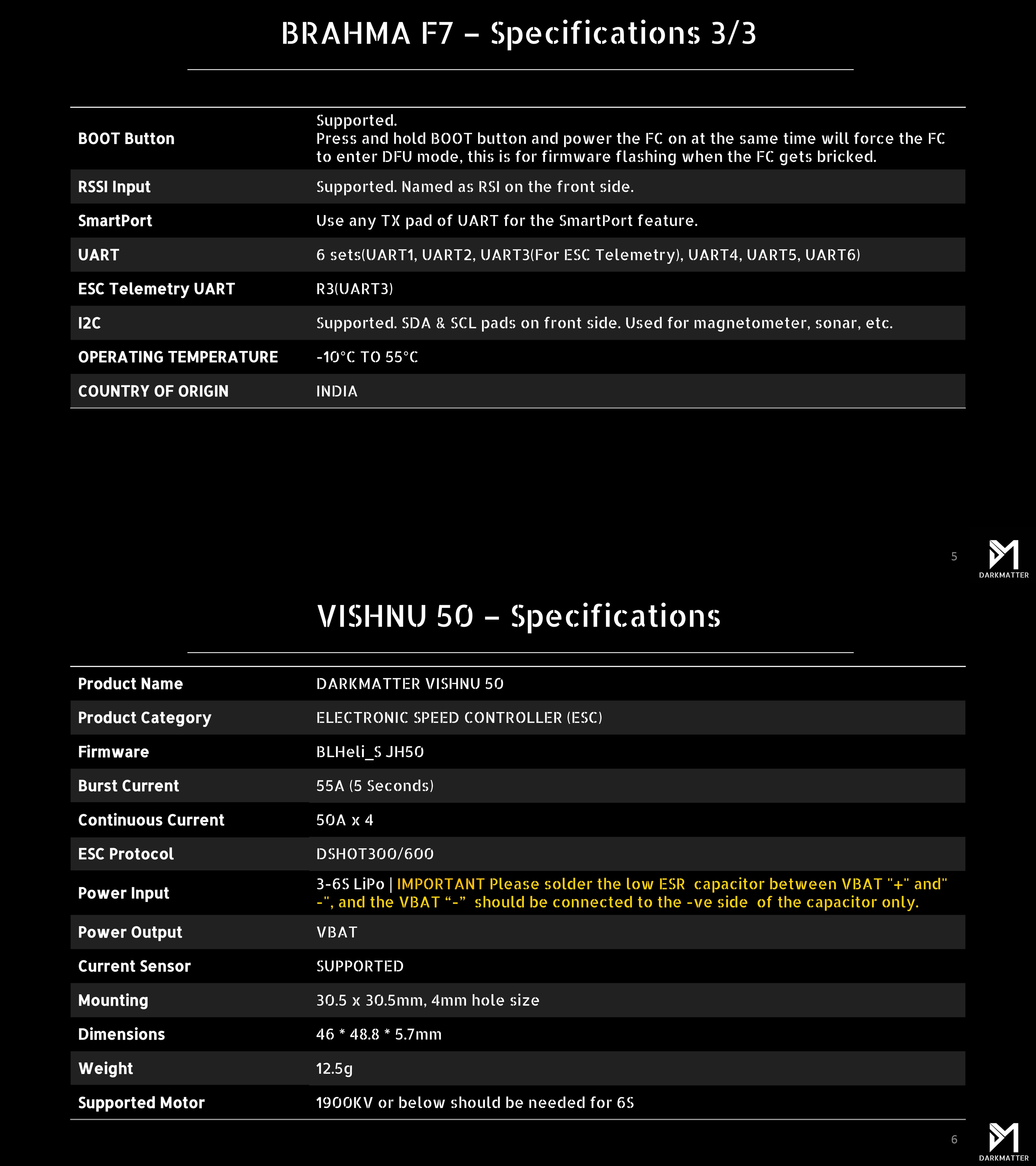

BRAHMA F7: Specifications 3/3

BOOT ButtonSupported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
RSSI InputSupported. Named as RSI on the front side.
SmartPortUse any TX pad of UART for the SmartPort feature.
UART6 sets(UART1, UART2, UART3(For ESC Telemetry), UART4, UART5, UART6)
ESC Telemetry UARTR3(UART3)
I2CSupported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
OPERATING TEMPERATURE-20°C TO 70°C..
COUNTRY OF ORIGINDESIGNED AND MANUFACTURED IN INDIA

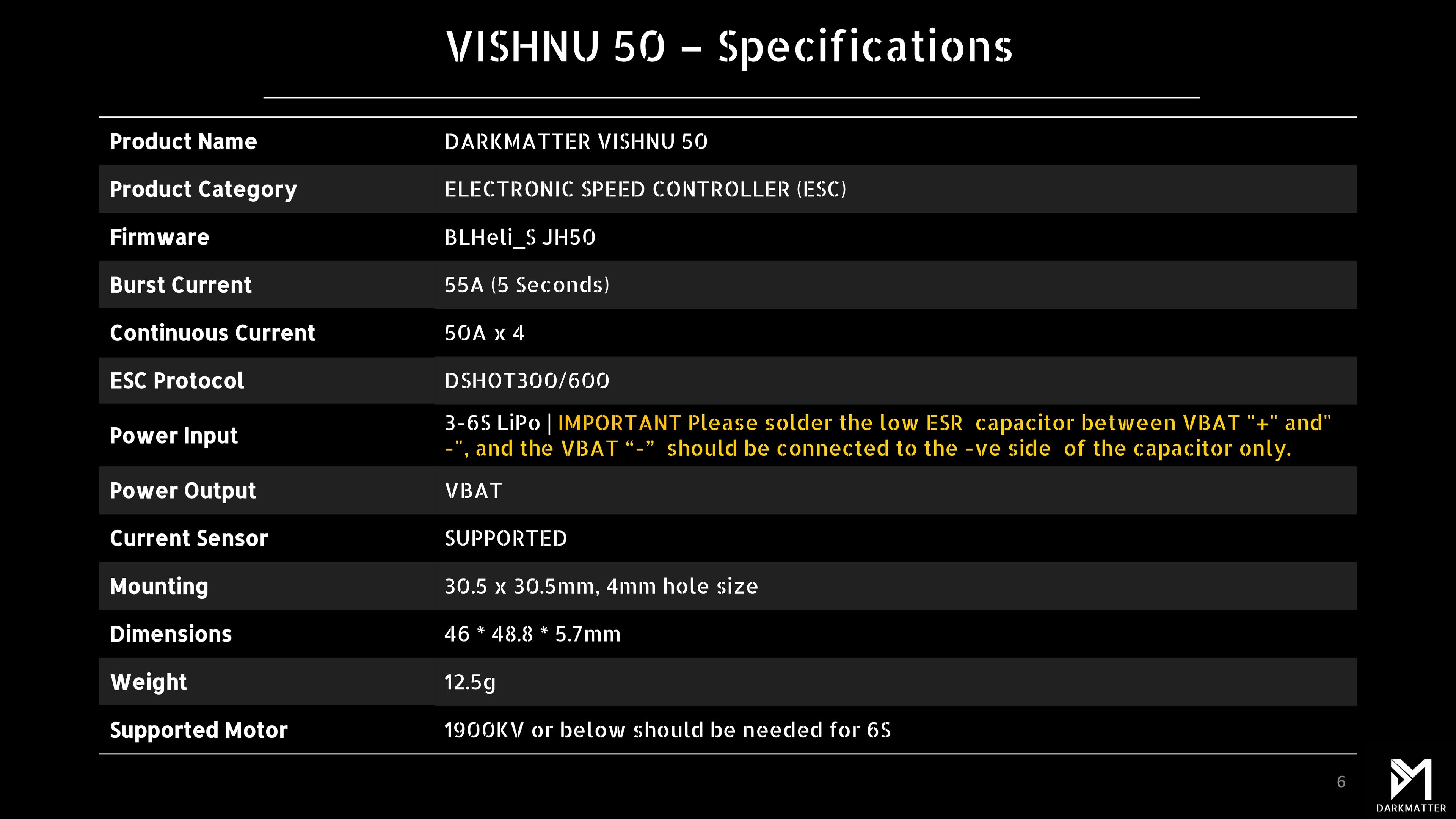

VISHNU 50: Specifications

Product NameDarkmatter® Vishnu 50
Product CategoryELECTRONIC SPEED CONTROLLER (ESC)
FirmwareBLHeli_S JH50
Burst Current55A (5 Seconds)
Continuous Current50A x 4
ESC ProtocolDSHOT300/600
Power Input2S-6S LiPo or Li-ion | IMPORTANT Please solder the low ESR capacitor between VBAT "+" and" -", and the VBAT “-” should be connected to the -ve side of the capacitor only.
Power OutputVBAT
Current SensorSUPPORTED
Mounting30.5 x 30.5mm, 4mm hole size
Dimensions46 * 48.8 * 5.7mm
Weight12.5g
Supported Motor1900KV or below should be needed for 6S

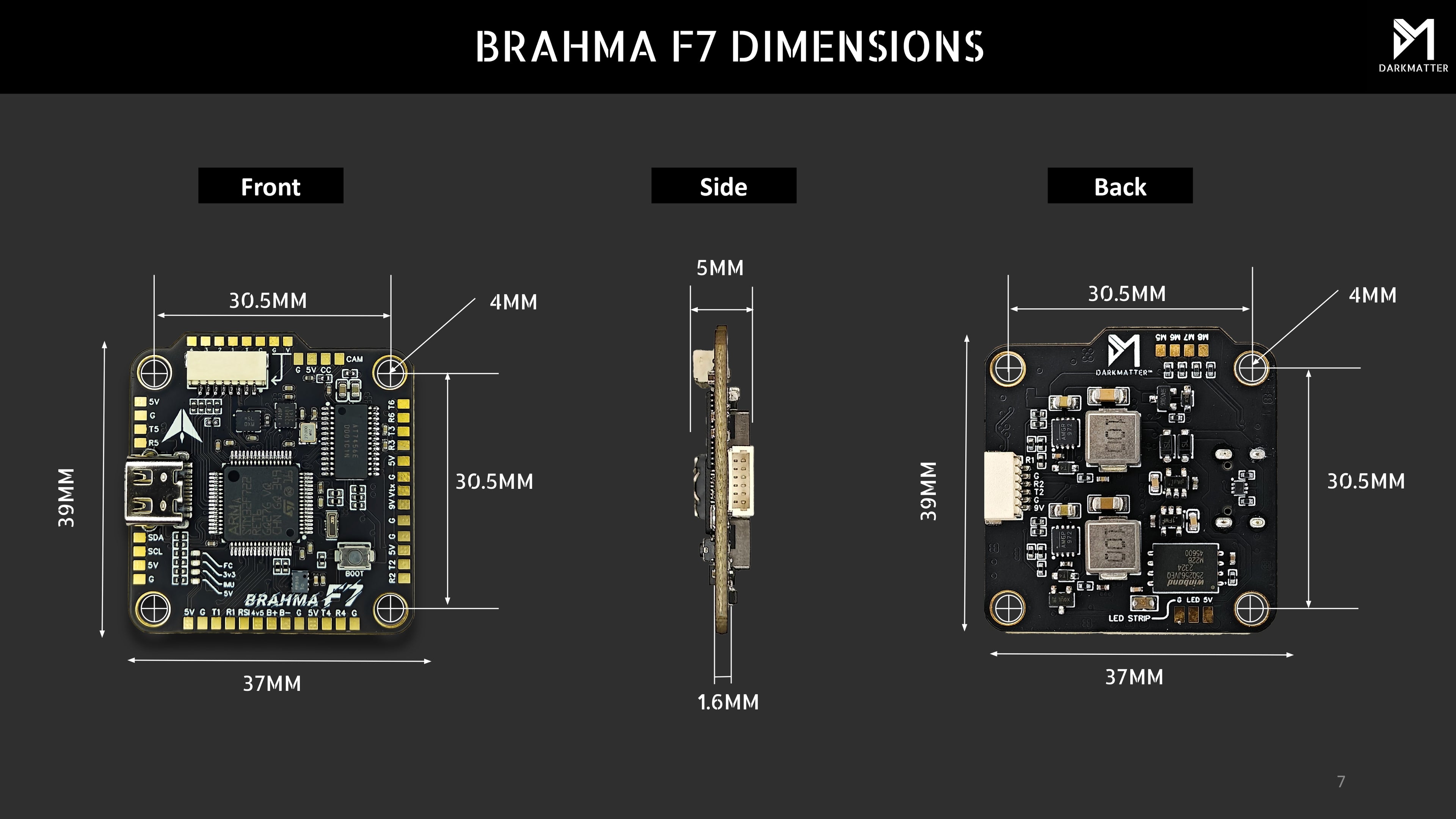

BRAHMA F7 DIMENSIONS

Front · Back · 30.5MM · 4MM · 39MM · 37MM · Side · 5MM · 1.6MM

DIMENSIONS

Front · Back · 30.5MM · 4MM · 46MM · 48.8MM · Side · 5.7MM · 1.6MM

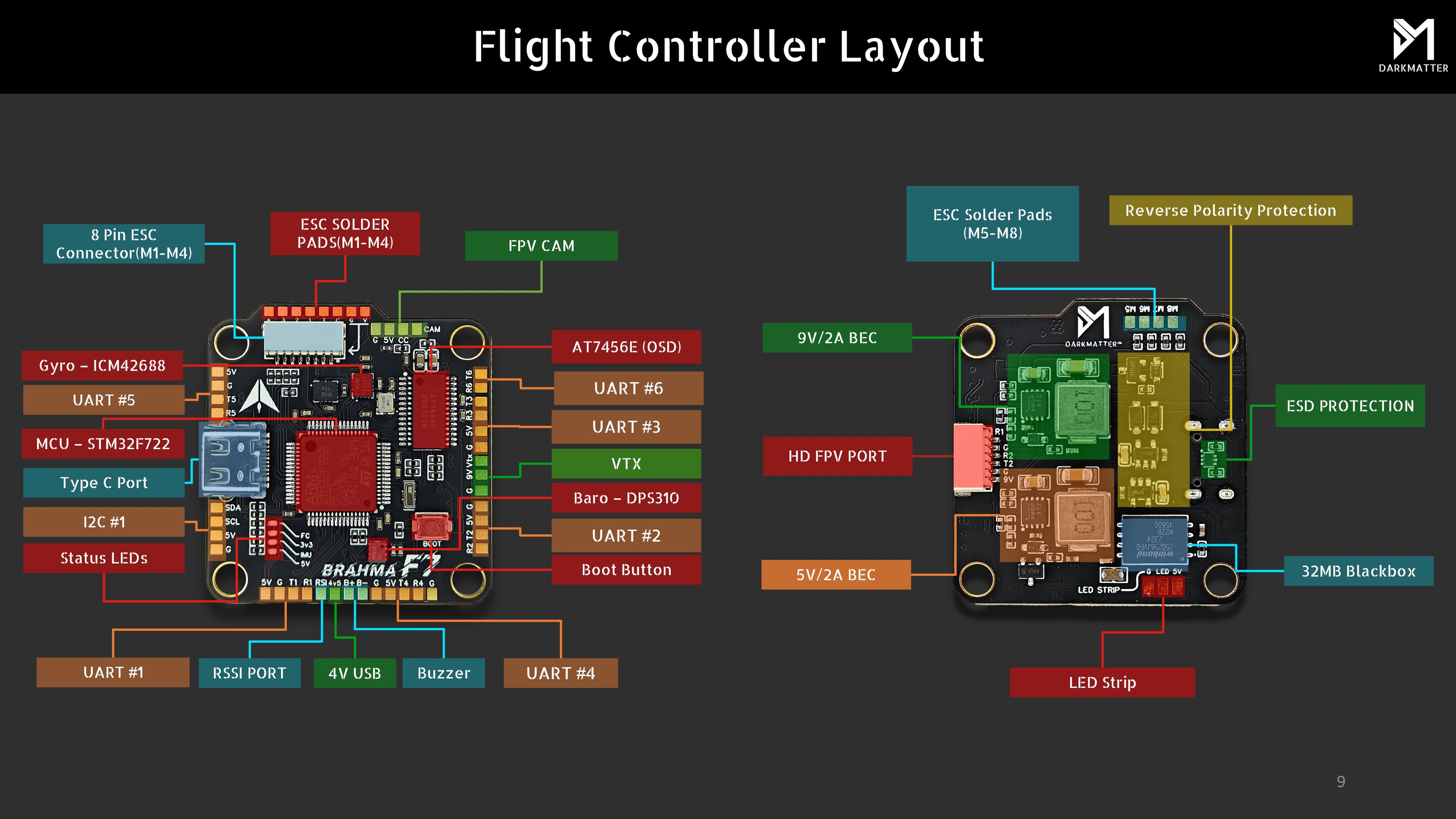

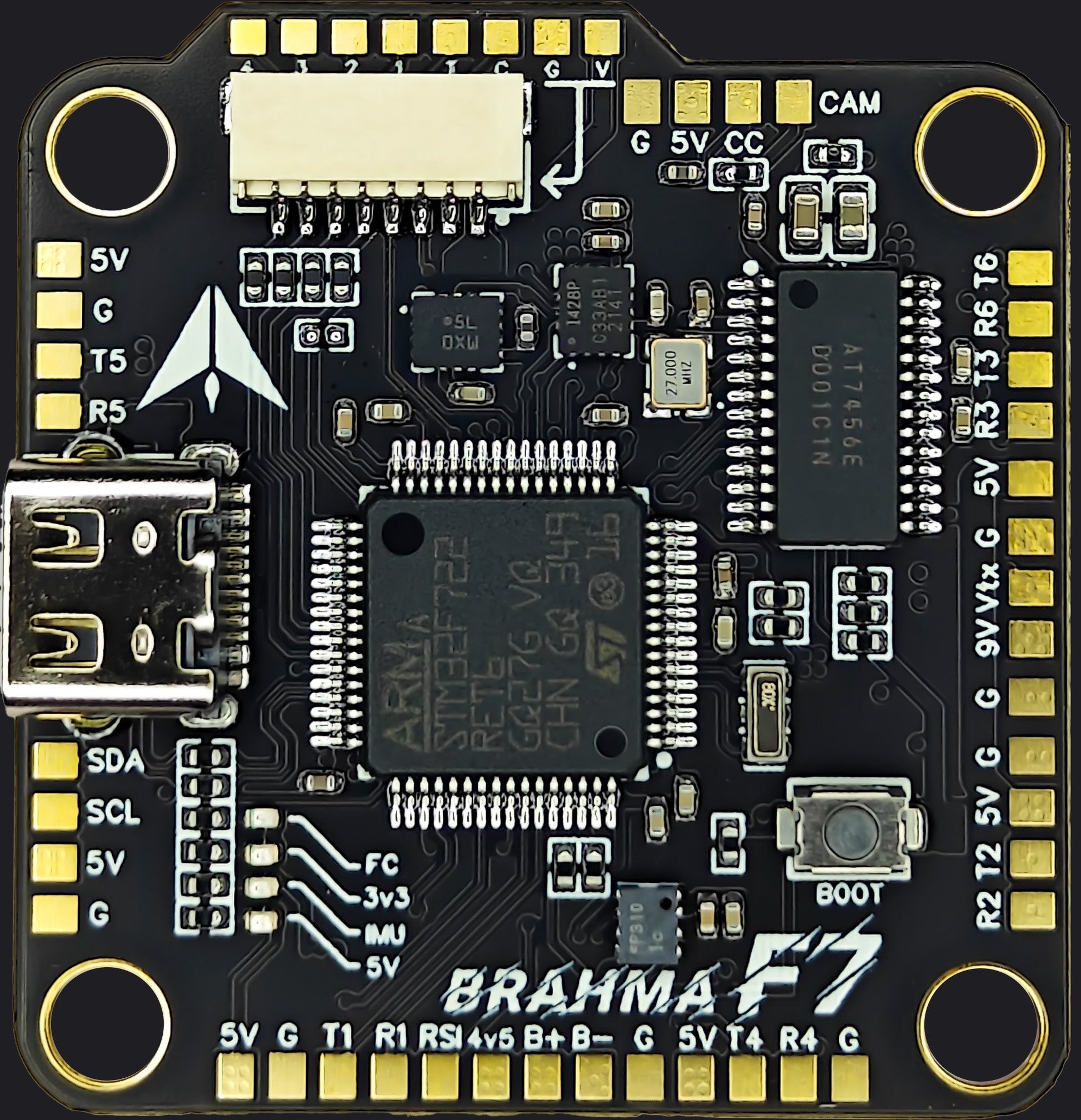

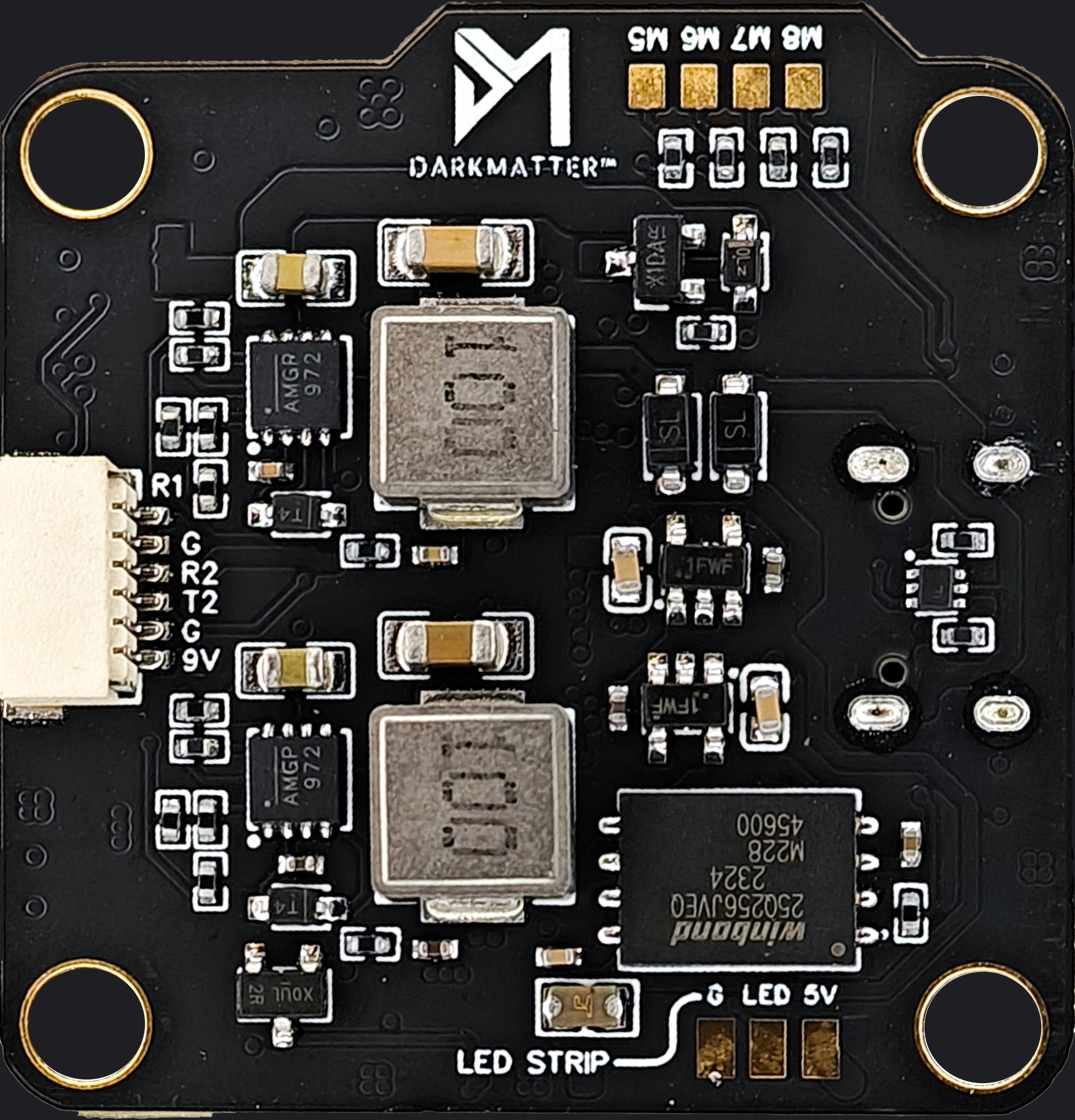

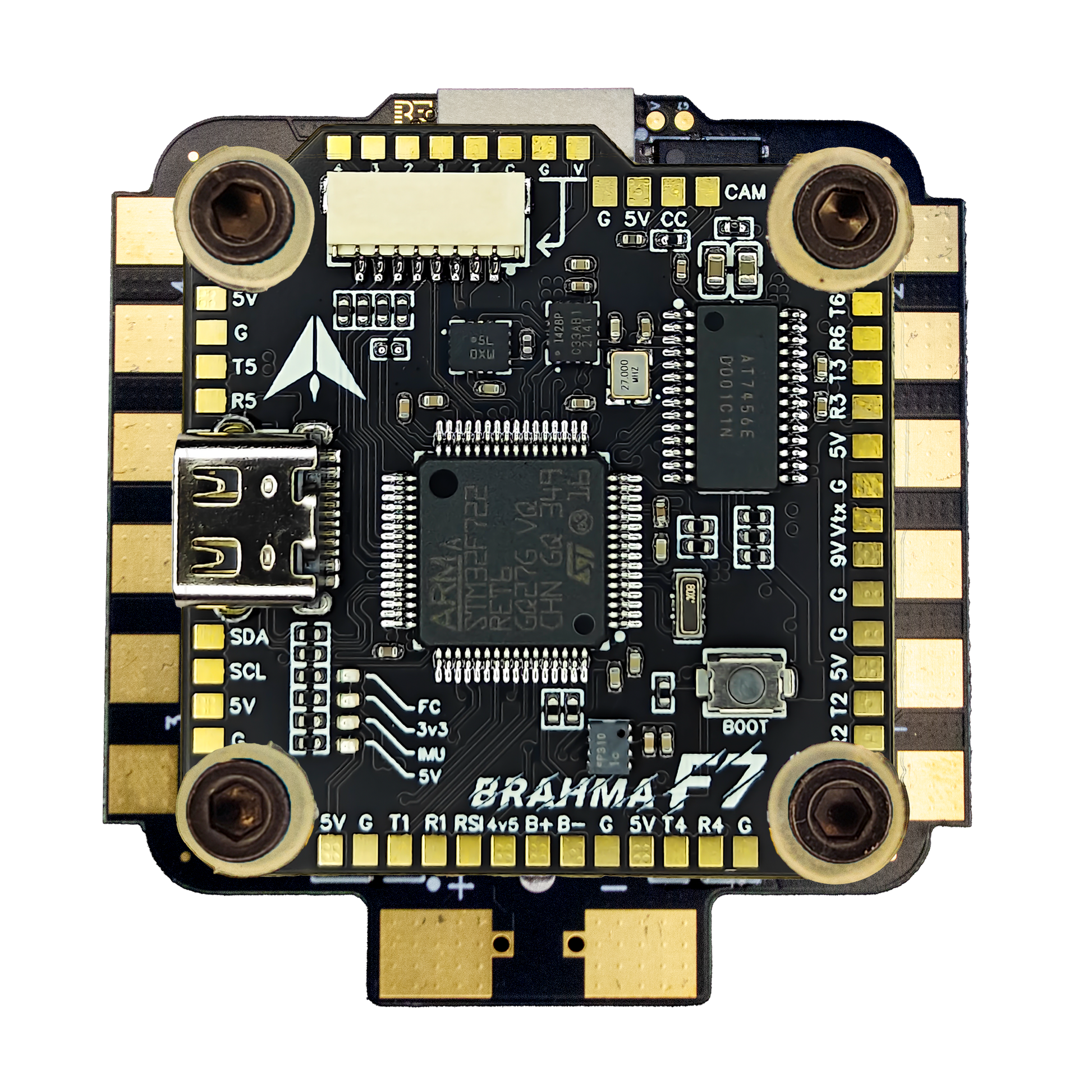

Flight Controller Layout

MCU – STM32F722 · AT7456E (OSD) · Gyro – ICM42688 · Baro – DPS310 · Boot Button · 8 Pin ESC Connector(M1-M4) · Type C Port · UART #5 · UART #1 · UART #4 · Buzzer · FPV CAM · ESC Solder Pads (M5-M8) · 9V/2A BEC · 5V/2A BEC · LED Strip · 32MB Blackbox · Reverse Polarity Protection · HD FPV PORT · ESD PROTECTION · Status LEDs · I2C #1 · UART #2 · VTX · UART #3 · UART #6 · ESC SOLDER PADS(M1-M4) · RSSI PORT · 4V USB

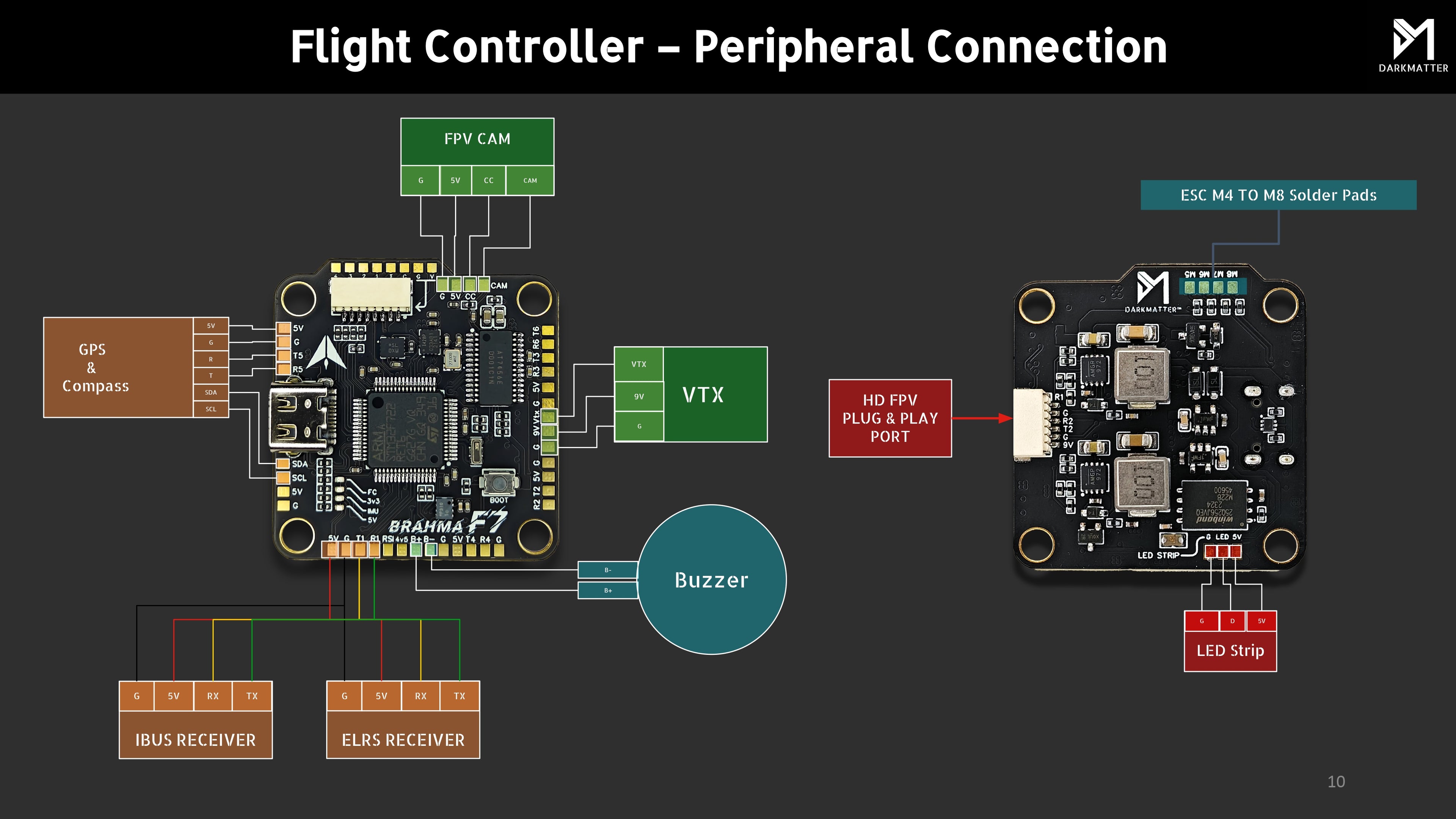

Flight Controller – Peripheral Connection

GPS & Compass · FPV CAM · ESC M4 TO M8 Solder Pads · HD FPV PLUG & PLAY PORT · 5V · SDA · SCL · B+ · B- · LED Strip · CAM · VTX · VTX · 9V · IBUS RECEIVER · ELRS RECEIVER · RX · TX · Buzzer · CC

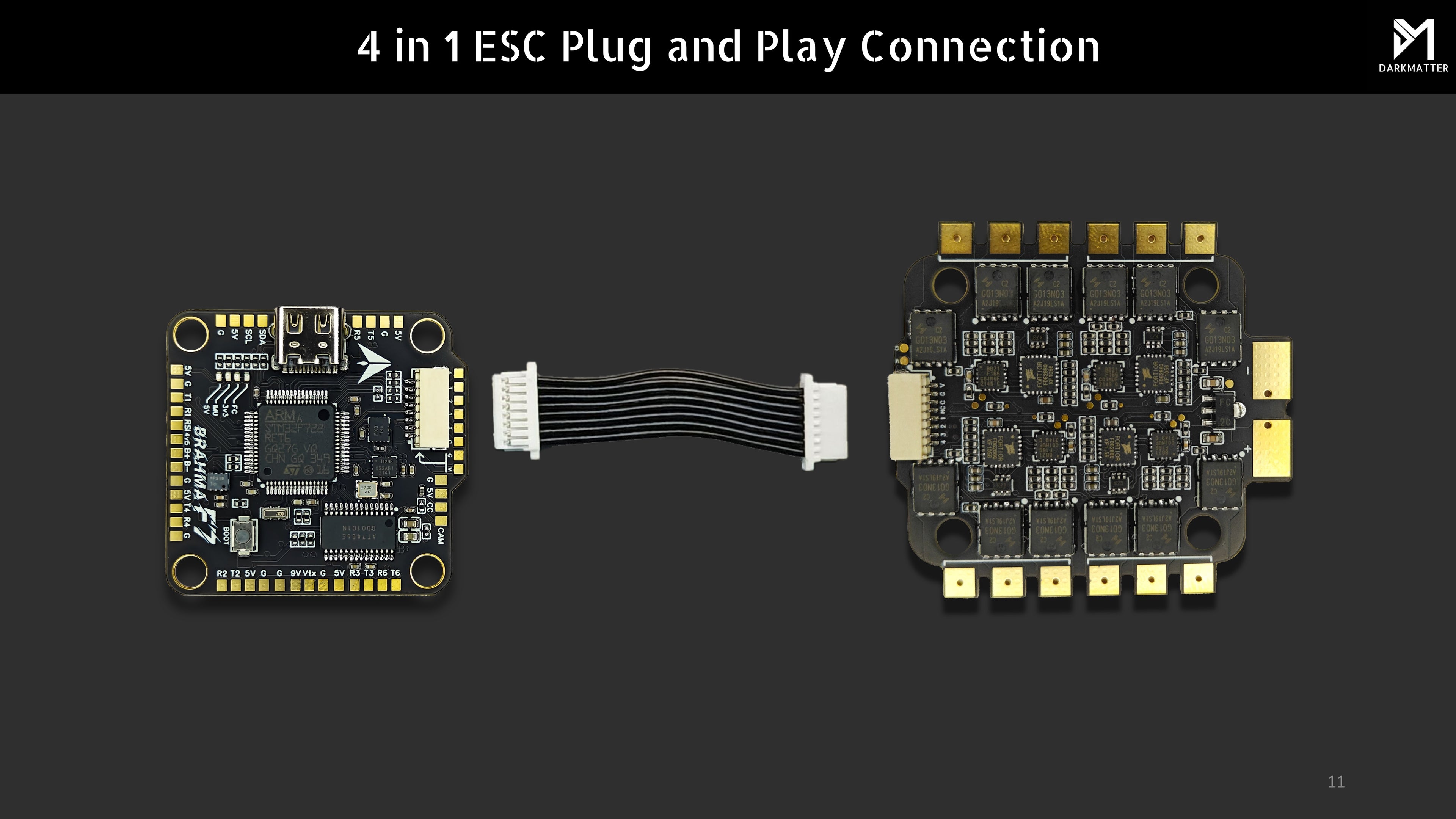

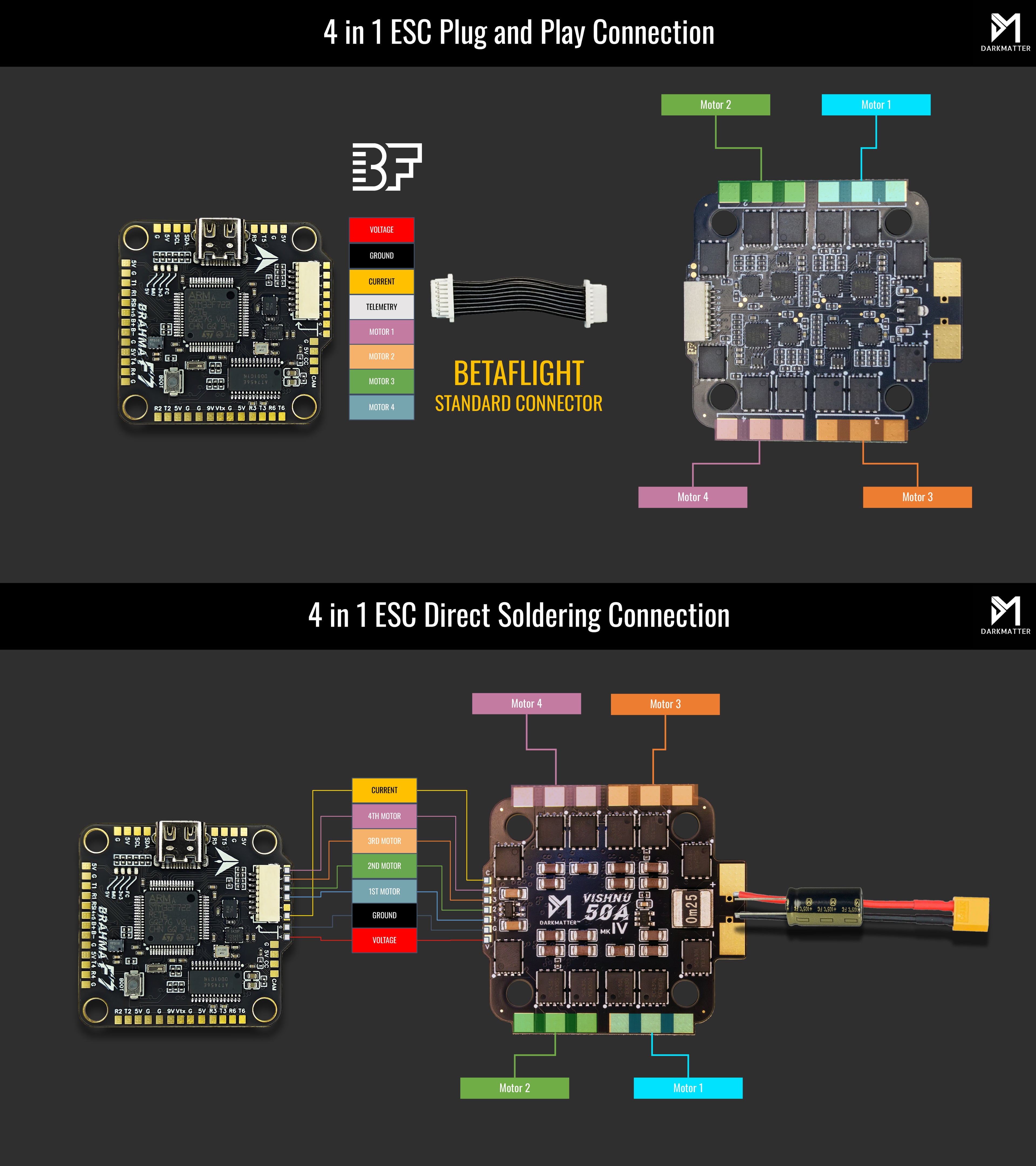

4 in 1 ESC Plug and Play Connection

CURRENT · MOTOR 1 · MOTOR 2 · MOTOR 3 · MOTOR 4 · GROUND · VOLTAGE · TELEMETRY · BETAFLIGHT STANDARD CONNECTOR · Motor 2 · Motor 4 · Motor 3 · Motor 1

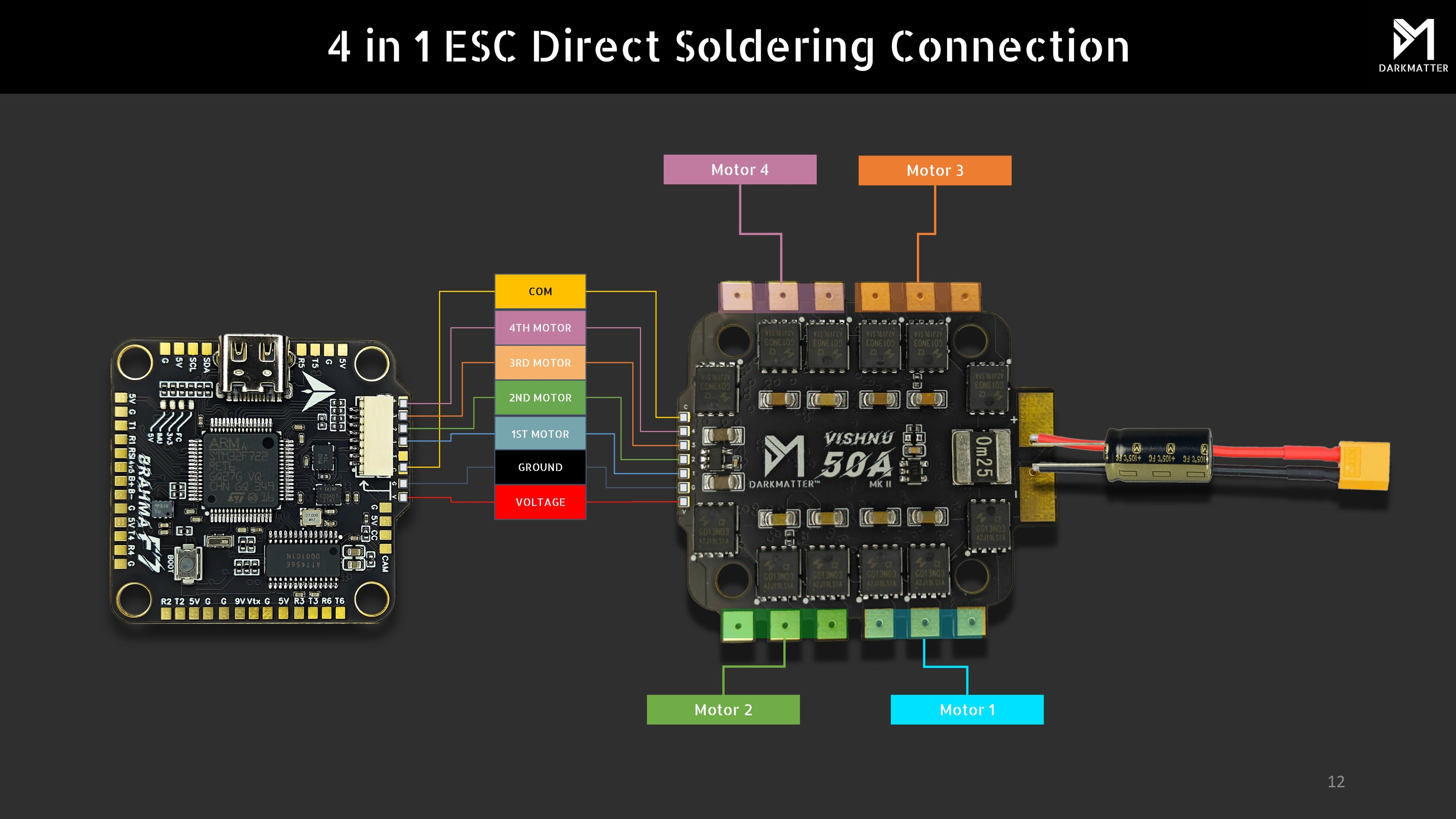

4 in 1 ESC Direct Soldering Connection

Motor 2 · Motor 4 · Motor 3 · Motor 1 · CURRENT · 4TH MOTOR · 3RD MOTOR · 2ND MOTOR · 1ST MOTOR · GROUND · VOLTAGE

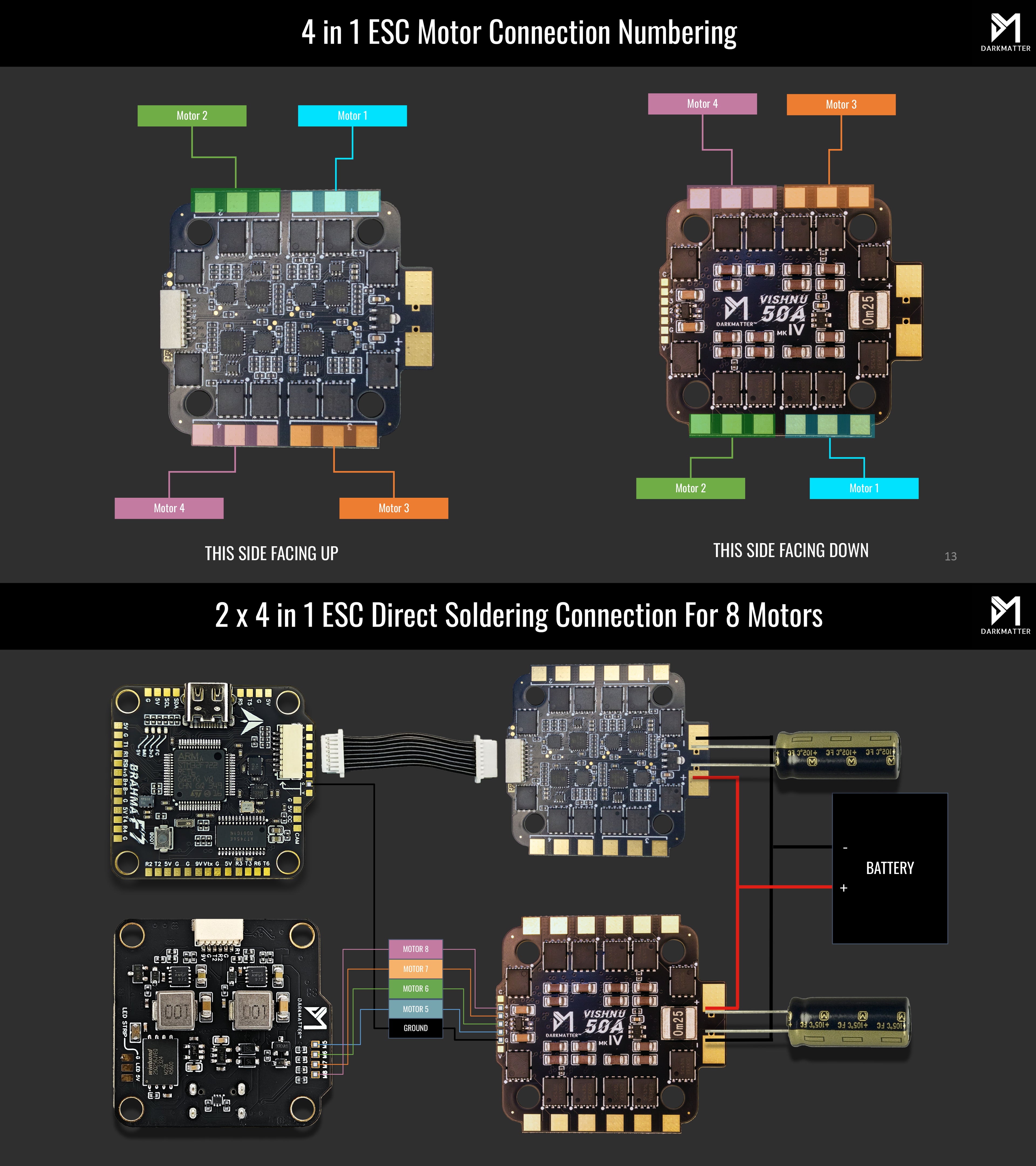

4 in 1 ESC Motor Connection Numbering

Motor 2 · Motor 4 · Motor 3 · Motor 1 · THIS SIDE FACING UP · THIS SIDE FACING DOWN

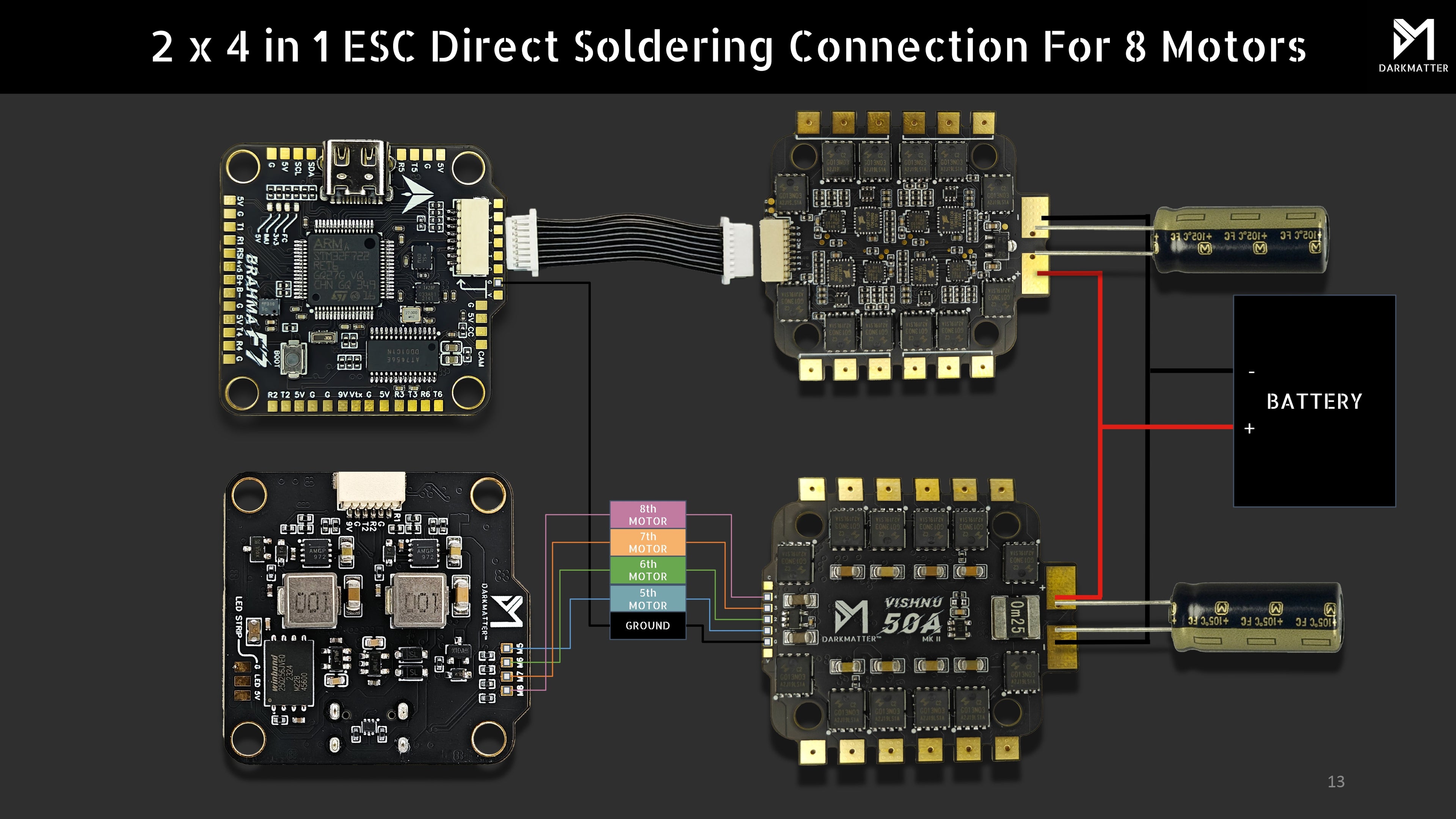

2 x 4 in 1 ESC Direct Soldering Connection For 8 Motors

MOTOR 8 · MOTOR 7 · MOTOR 6 · MOTOR 5 · GROUND · BATTERY

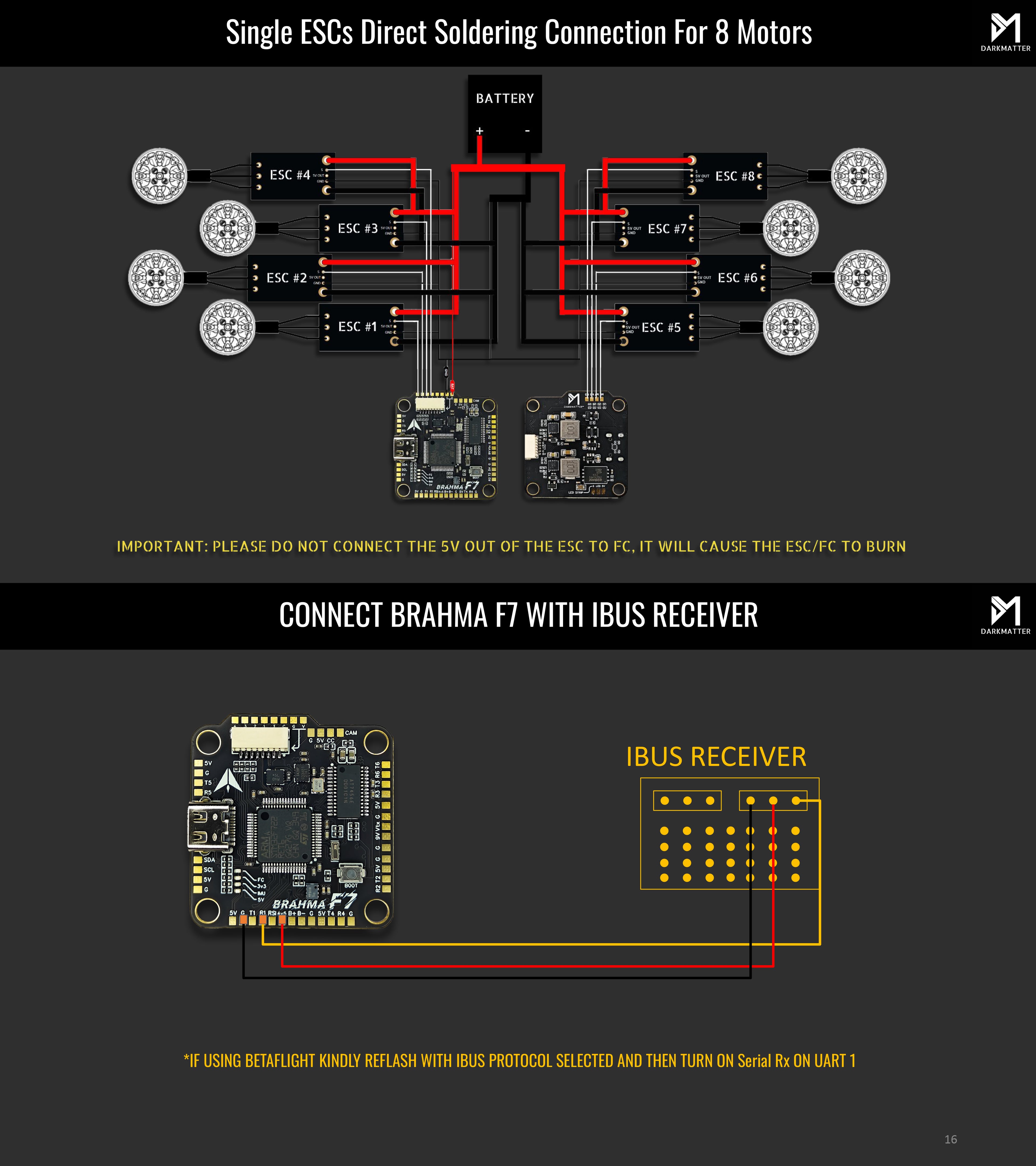

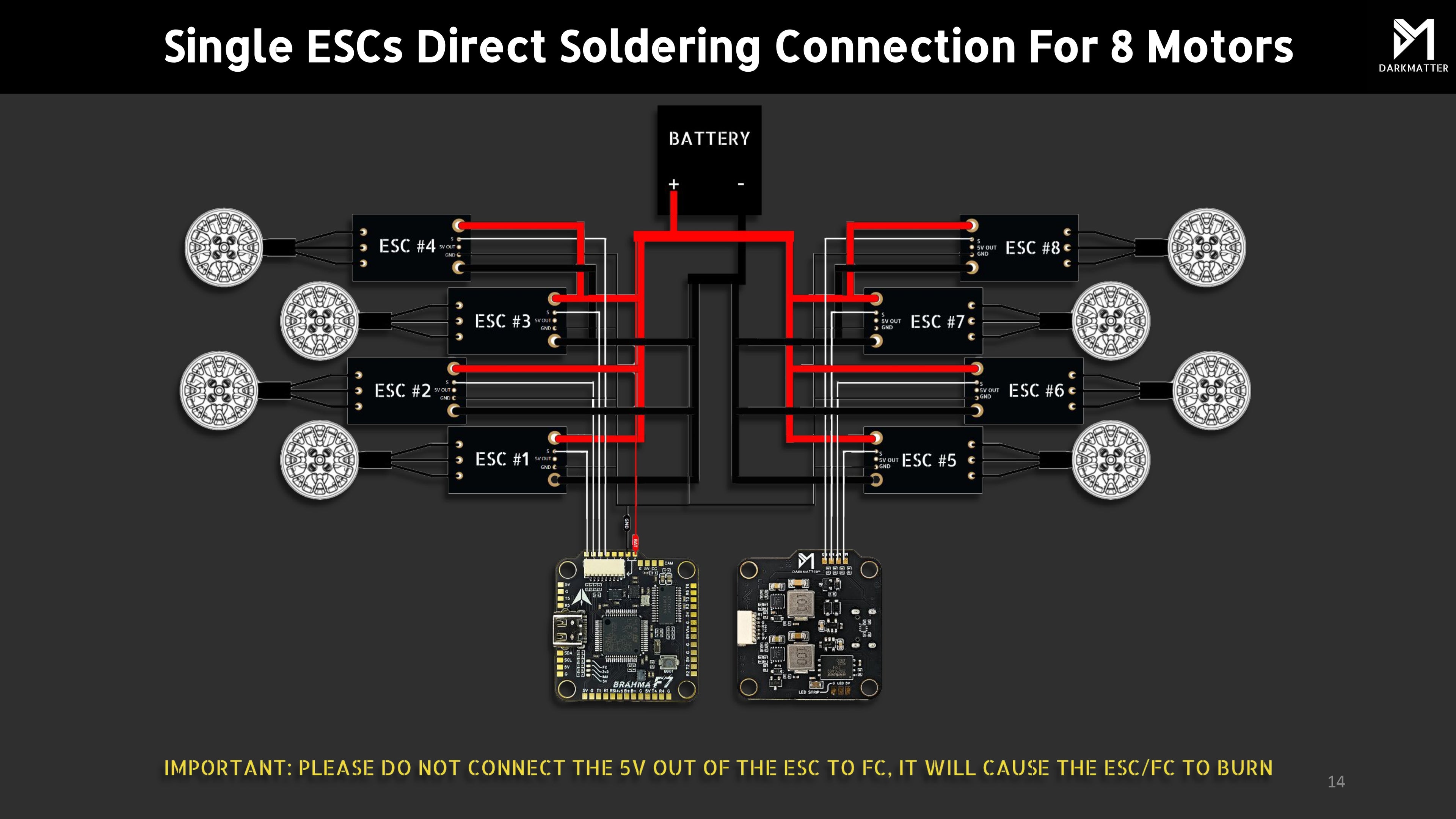

Single ESCs Direct Soldering Connection For 8 Motors

CONNECT BRAHMA F7 WITH IBUS RECEIVER

IBUS RECEIVER · *IF USING BETAFLIGHT KINDLY REFLASH WITH IBUS PROTOCOL SELECTED AND THEN TURN ON Serial Rx ON UART 1

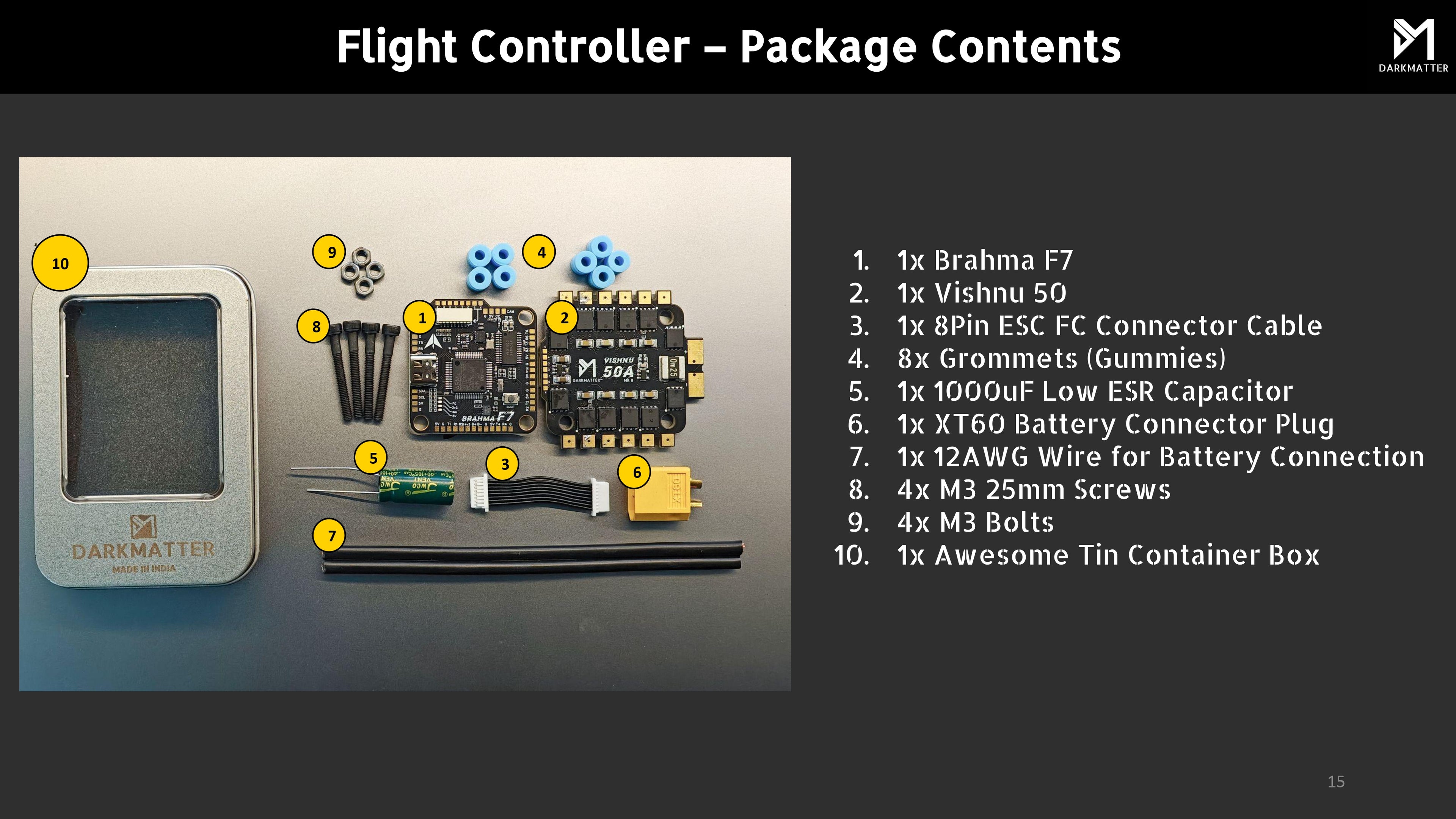

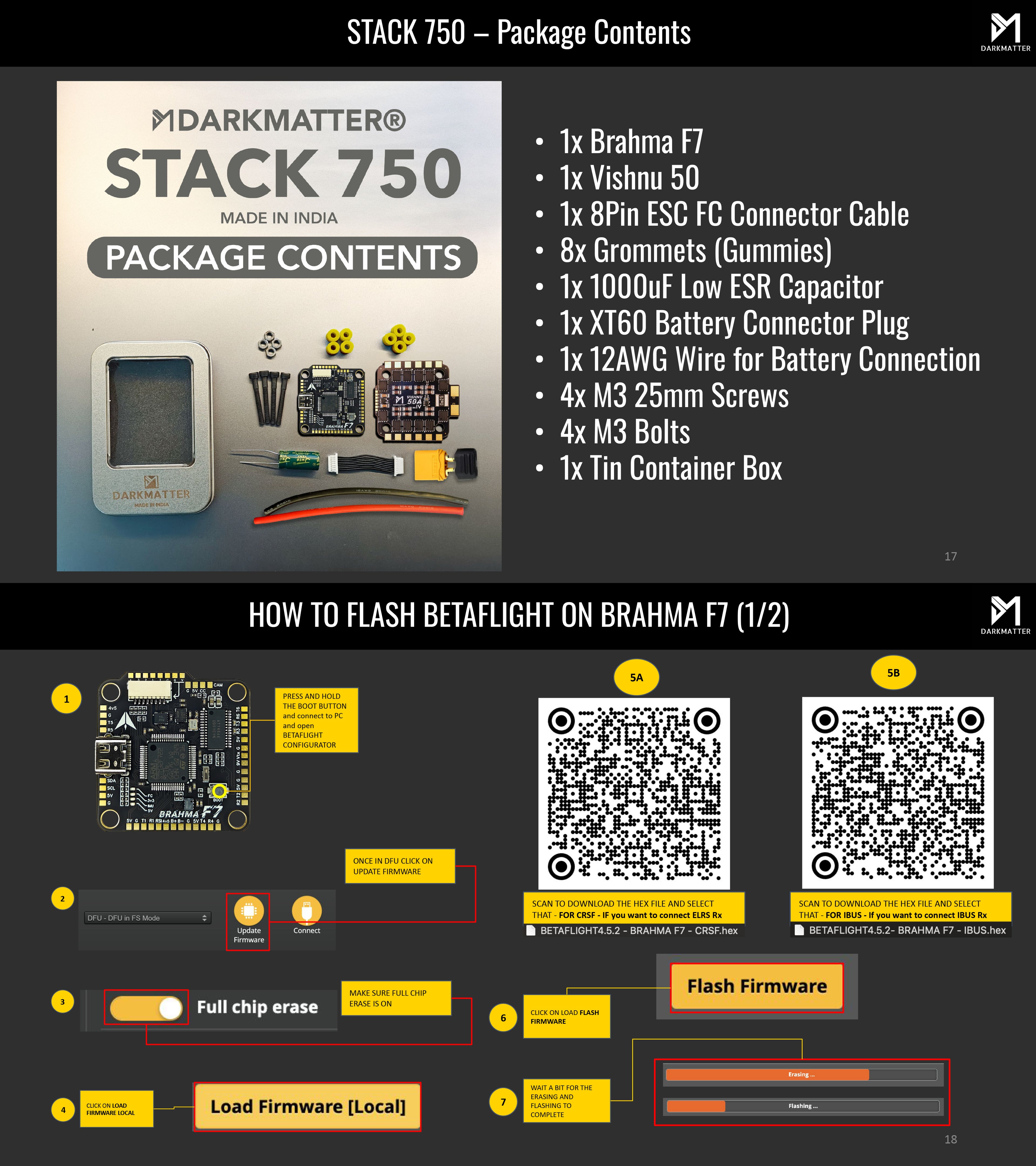

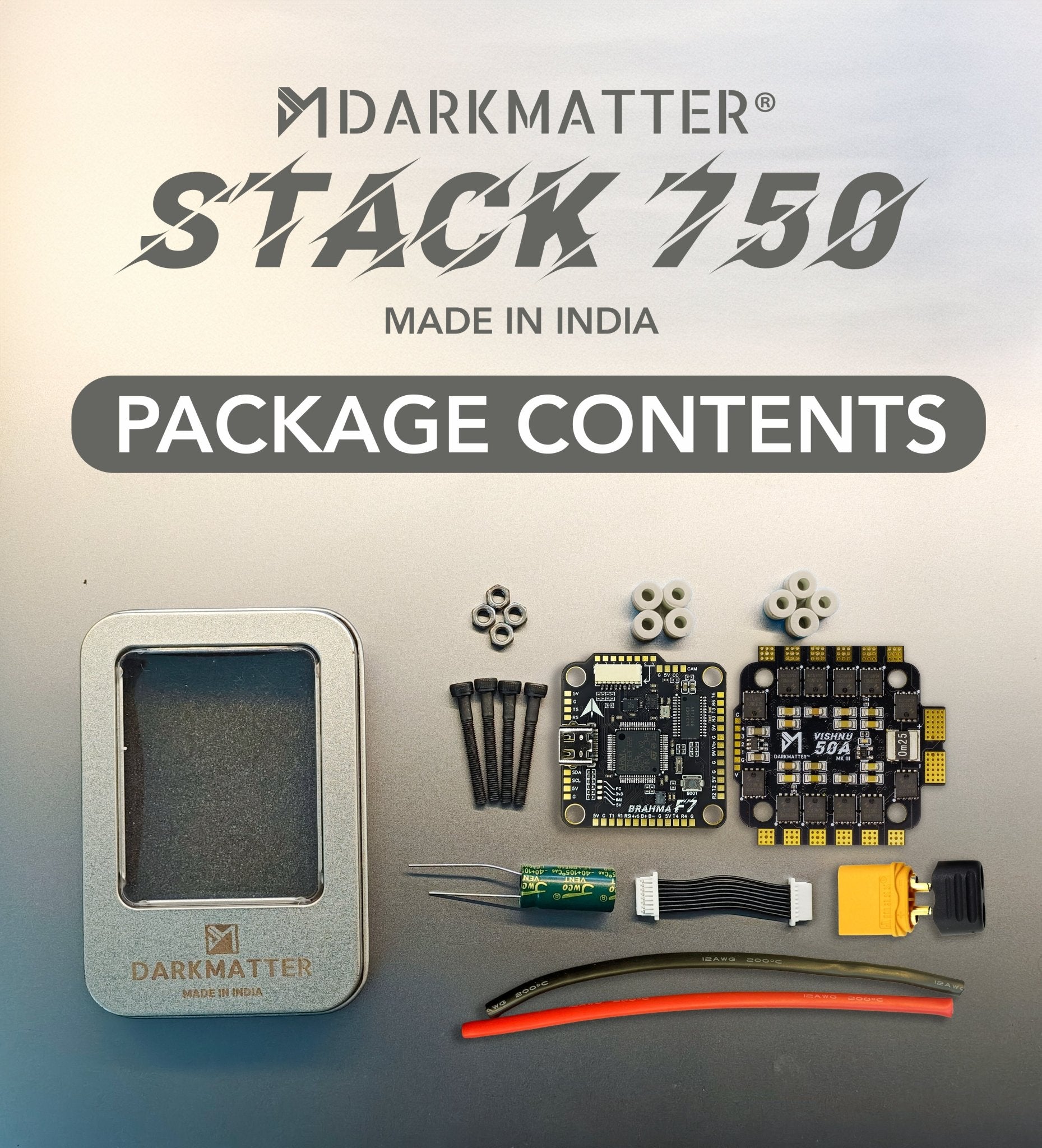

STACK 750: Package Contents

• 1x Brahma F7 • 1x Vishnu 50 • 1x 8Pin ESC FC Connector Cable • 8x Grommets (Gummies) • 1x 1000uF Low ESR Capacitor • 1x XT60 Battery Connector Plug • 1x 12AWG Wire for Battery Connection • 4x M3 25mm Screws • 4x M3 Bolts • 1x Tin Container Box

HOW TO FLASH BETAFLIGHT ON BRAHMA F7 (1/2)

  1. PRESS AND HOLD THE BOOT BUTTON and connect to PC and open BETAFLIGHT CONFIGURATOR
  2. ONCE IN DFU CLICK ON UPDATE FIRMWARE
  3. MAKE SURE FULL CHIP ERASE IS ON
  4. CLICK ON LOAD FIRMWARE LOCAL
  5. CLICK ON LOAD FLASH FIRMWARE
  6. WAIT A BIT FOR THE ERASING AND FLASHING TO COMPLETE

HOW TO FLASH BETAFLIGHT ON BRAHMA F7 (2/2)

  1. CLICK ON CLI FROM THE LEFT HAND SIDE MENU
  2. CLICK ON CLOSE

HOW TO FLASH INAV ON BRAHMA F7 (1/2)

  1. ONCE IN DFU CLICK ON FIRMWARE FLASHER
  2. PRESS AND HOLD THE BOOT BUTTON and connect to PC and open INAV CONFIGURATOR
  3. CLICK ON LOAD LOAD FIRMWARE ONLINE
  4. CLICK ON LOAD FLASH FIRMWARE
  5. WAIT A BIT FOR THE ERASING AND FLASHING TO COMPLETE

HOW TO FLASH INAV ON BRAHMA F7 (2/2)

  1. SELECT THE TYPE OF CRAFT YOU ARE MAKING
  2. SELECT THE UART & THE RECEIVER PROTOCOL FOR RX
  3. SELECT THE UART PORT FOR GPS

• Warranty Period: The STACK 750 comes with a 6-month warranty for any manufacturing defects from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover : • Any physical damage to the product due to usage like water damage, tampered components • Burnt circuit due to wrong wiring or overloading. • Burning ESC due to spinning motors without propellers beyond 15% during initial testing for motor direction. • Burning ESC due to arming the drone without propellers in Angle mode and expecting it to stop spinning by lowering the throttle, which it will not, as the FC is trying hard to level but it can't, as you guessed it, there is no propeller. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage and the points stated above. If the product is eligible, we will provide a replacement at no additional cost and support you for your build. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +918017193277.
