Brahma F7

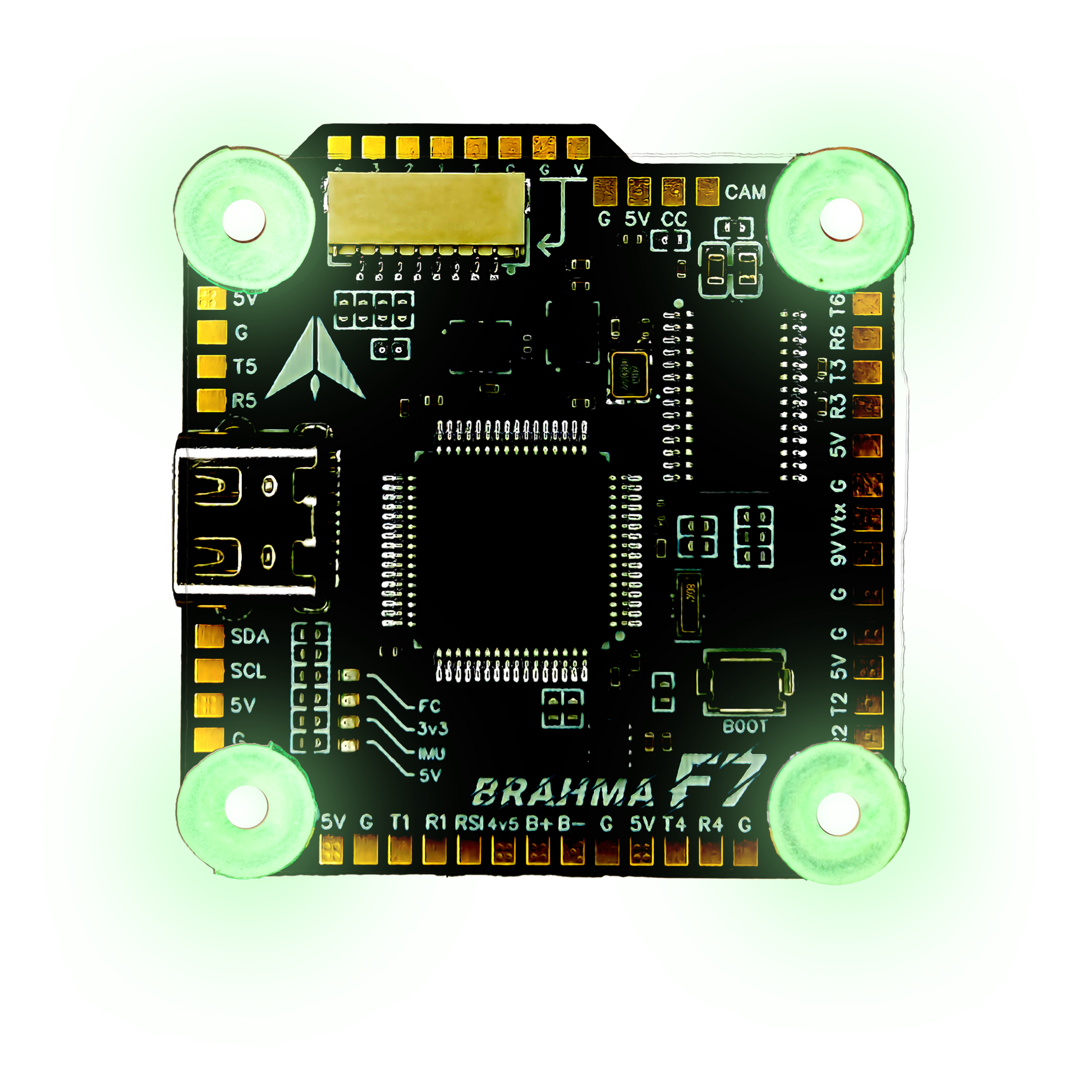

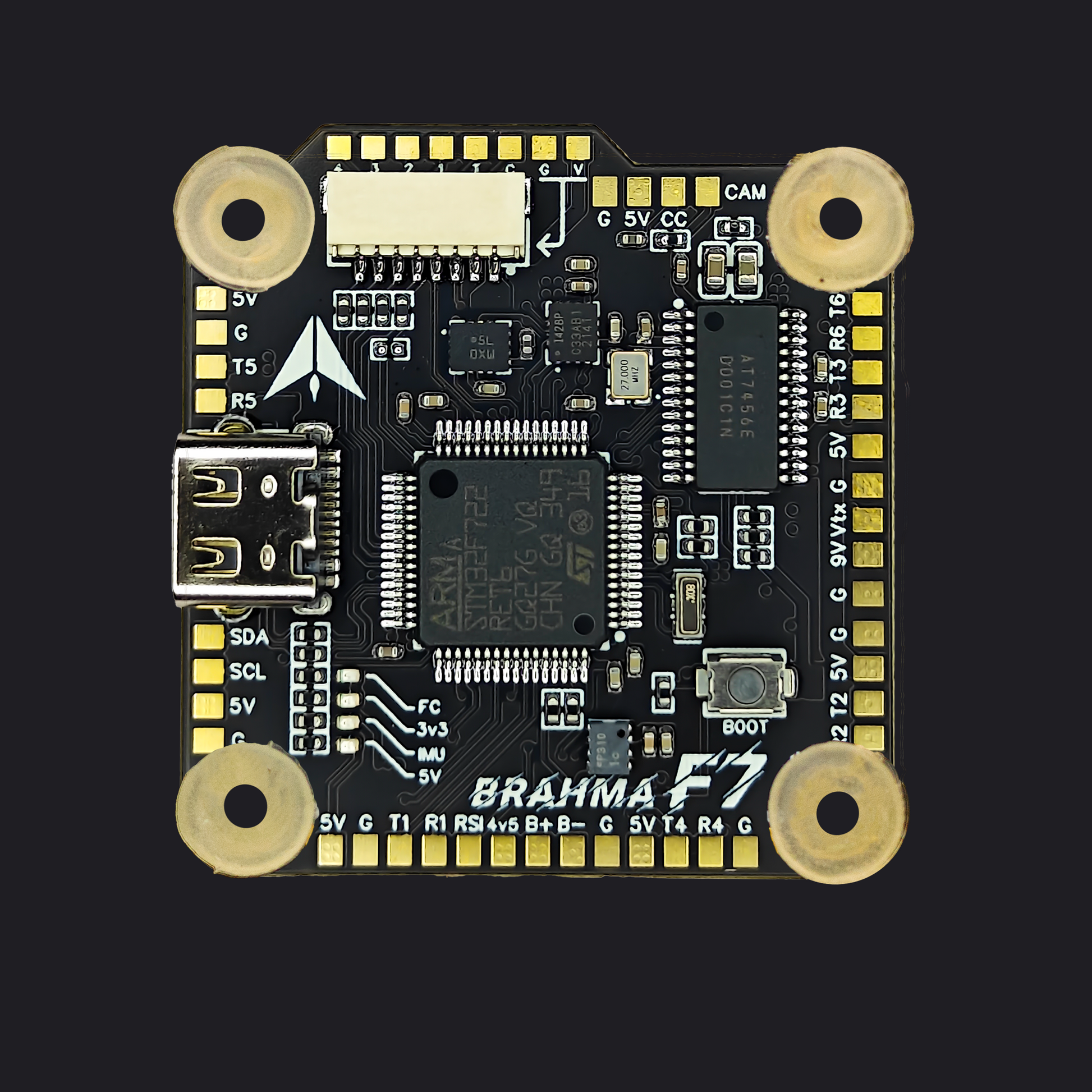

The actual 3D design of the flight controller. Turn it over and look at it from any side.

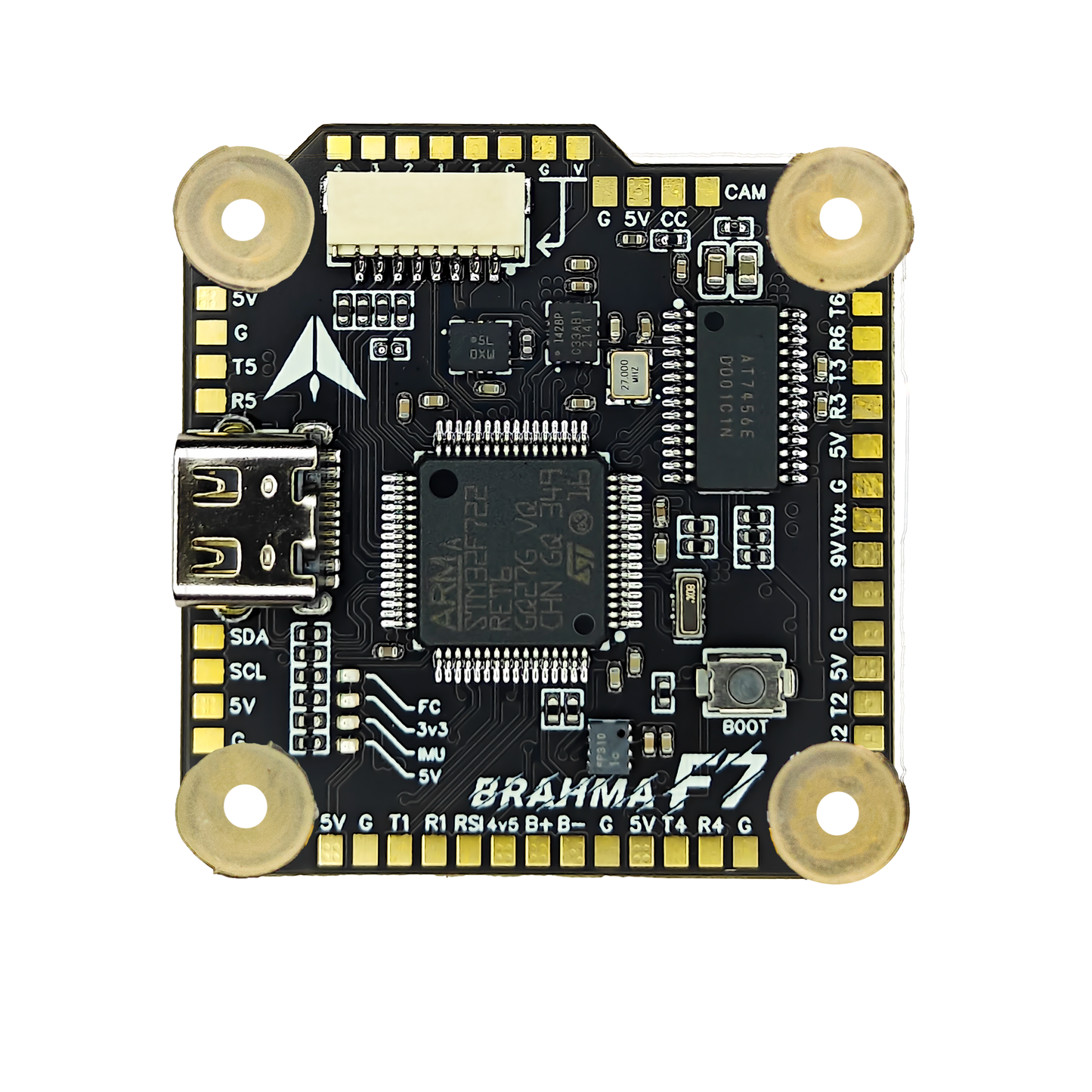

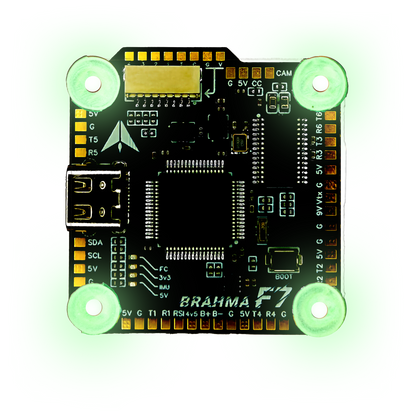

Darkmatter® Brahma F7
MCUSTM32F722
IMUICM42688P
I/O6 UART · 8 motors
Applications · on the frame

Where the Brahma F7 goes.

Four M3 screws come up through the frame on the standard 30.5 × 30.5 mm pattern. Scroll to build it in.

Soft mount

Grommets first.

A soft TPE grommet presses into each mounting hole, so frame vibration stays out of the gyros. We injection-mould them ourselves.

Stack

Vishnu, then Brahma.

The Vishnu 60 PRO slides down the screws first. The Brahma F7 sits on top. Shown here with a Vishnu 60 PRO.

Lock it down

Four nuts. One cable.

An 8-pin cable links the two boards. Tighten four nuts, close the frame, and you are wired.

What you can build

One stack.
Many machines.

Inside the Brahma F7

Every part,
up close.

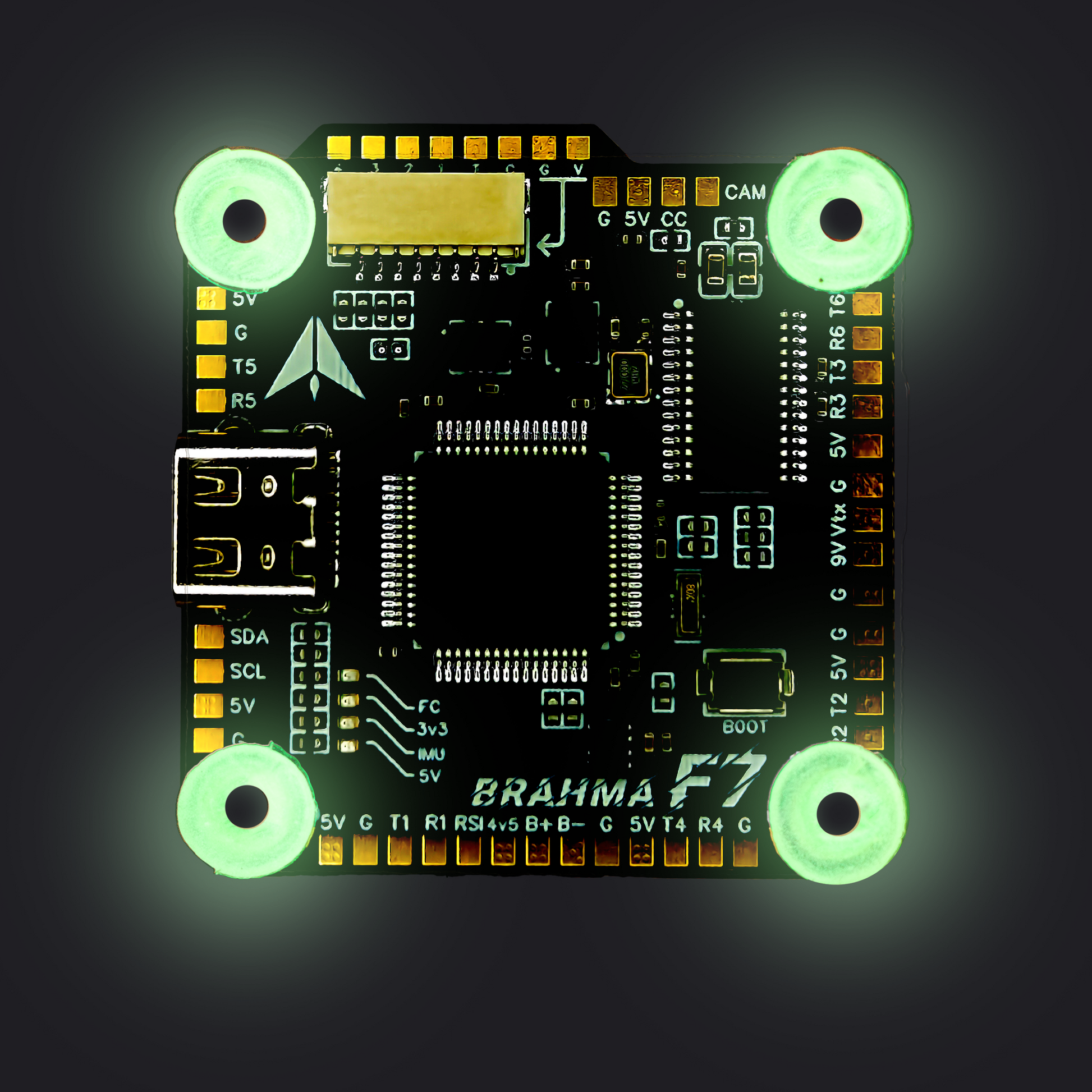

Scroll to fly across the real board model.

The brain

STM32F722

Faster loops and heavier filtering than an F4, for high-performance FPV.

One cable

USB Type-C

Configure, flash and tune over a single modern connector.

The muscle

8 motors

One plug for the 4-in-1 ESC carries M1 to M4. M5 to M8 are on pads underneath.

On-screen display

AT7456E OSD

Analog OSD on board, alongside the digital video port.

Ports

6 UARTs

Receiver, GPS, telemetry, VTX and more, down the edge pads. 9V for the VTX is in the same column.

Navigation

I²C for a compass

SDA and SCL, with 5V and ground beside them.

Flip it over

The other side.

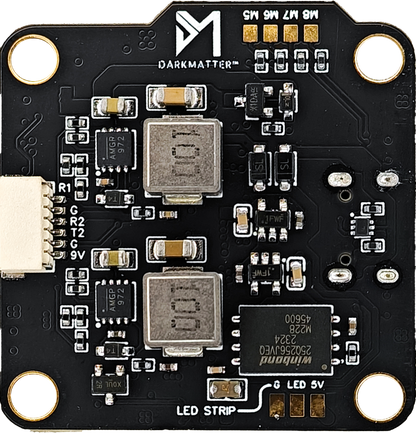

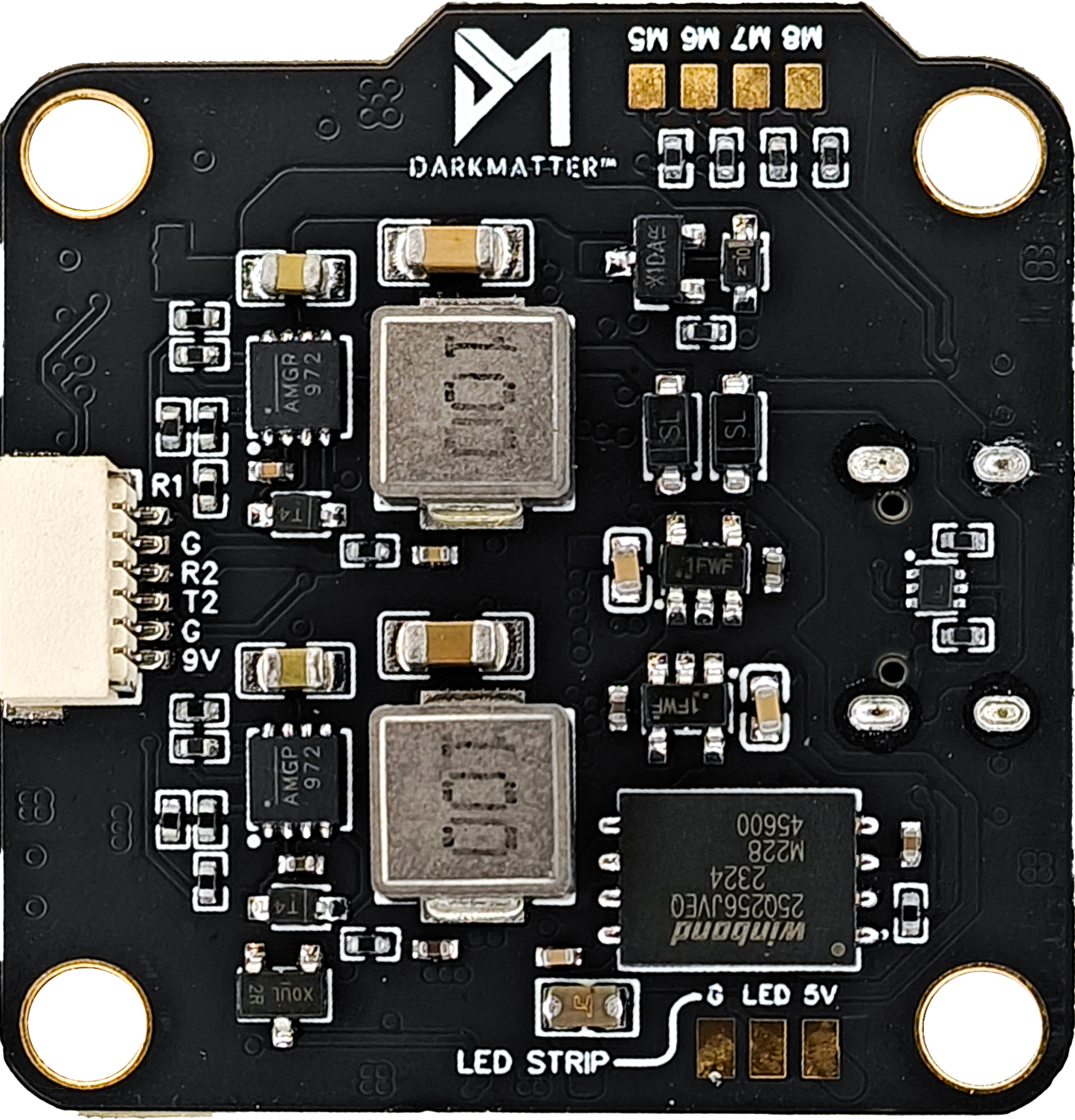

The HD video port, Blackbox memory and the regulators.

Plug and play

HD FPV port

One plug for a digital video system. No soldering.

Logging

32MB Blackbox

Onboard flash records every flight for tuning and diagnosis.

Clean power

Two regulators

Separate 5V and 9V supplies, each good for 2 amps.

More motors

M5 to M8

Solder pads for a second ESC: hex and X8 layouts.

Spec sheet

Brahma F7 specifications

An STM32F722 flight controller for Betaflight and INAV, with an ICM42688P gyroscope, six UARTs, eight motor outputs and an HD FPV plug port.

ProcessorSTM32F722
GyroscopeICM42688P
BarometerDPS310
On-screen displayAT7456E (analog)
Blackbox32MB onboard flash
USBType-C
FirmwareBetaflight, INAV
UARTs6
I²CYes, for compass, airspeed and other sensors
Motor outputs8 (M1–M8)
5V output2A
9V output2A, for digital VTX
4.5V outputPowered over USB, for the receiver while configuring
3.3V outputFor compasses and sensors
Digital FPVHD FPV plug-and-play port
InputsRSSI, SBUS
ProtectionReverse polarity, USB ESD, power filtering
Mounting30.5 × 30.5 mm (M3)
Dimensions39 × 37 × 5 mm
Weight9 g
Made inDesigned and manufactured in India (Bally, West Bengal)
Ready when you are

Book your Brahma F7

Message us on WhatsApp. We reply with availability, price and delivery time, and help you pick the right parts for your build.

Book on WhatsApp
Skip to product information
1 of 4

Darkmatter®

BRAHMA F7

BRAHMA F7

Designed & Manufactured In India 🇮🇳

Regular price Rs. 6,699.00
Regular price Rs. 10,499.00 Sale price Rs. 6,699.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Firmware

Choose the firmware we pre-flash for you. You can flash any supported firmware yourself later.

Quantity

An STM32F722 flight controller for Betaflight and INAV, with an ICM42688P gyroscope, six UARTs, eight motor outputs and an HD FPV plug port.

Full specs ↓
  • MADE IN INDIA
  • 6 MONTH WARRANTY
  • DELIVERY IN 4-5 DAYS
View full details
User manual

Brahma F7 user manual

Point at any label to see the wire and the part it belongs to. Step through the flashing guides. Zoom in on anything.

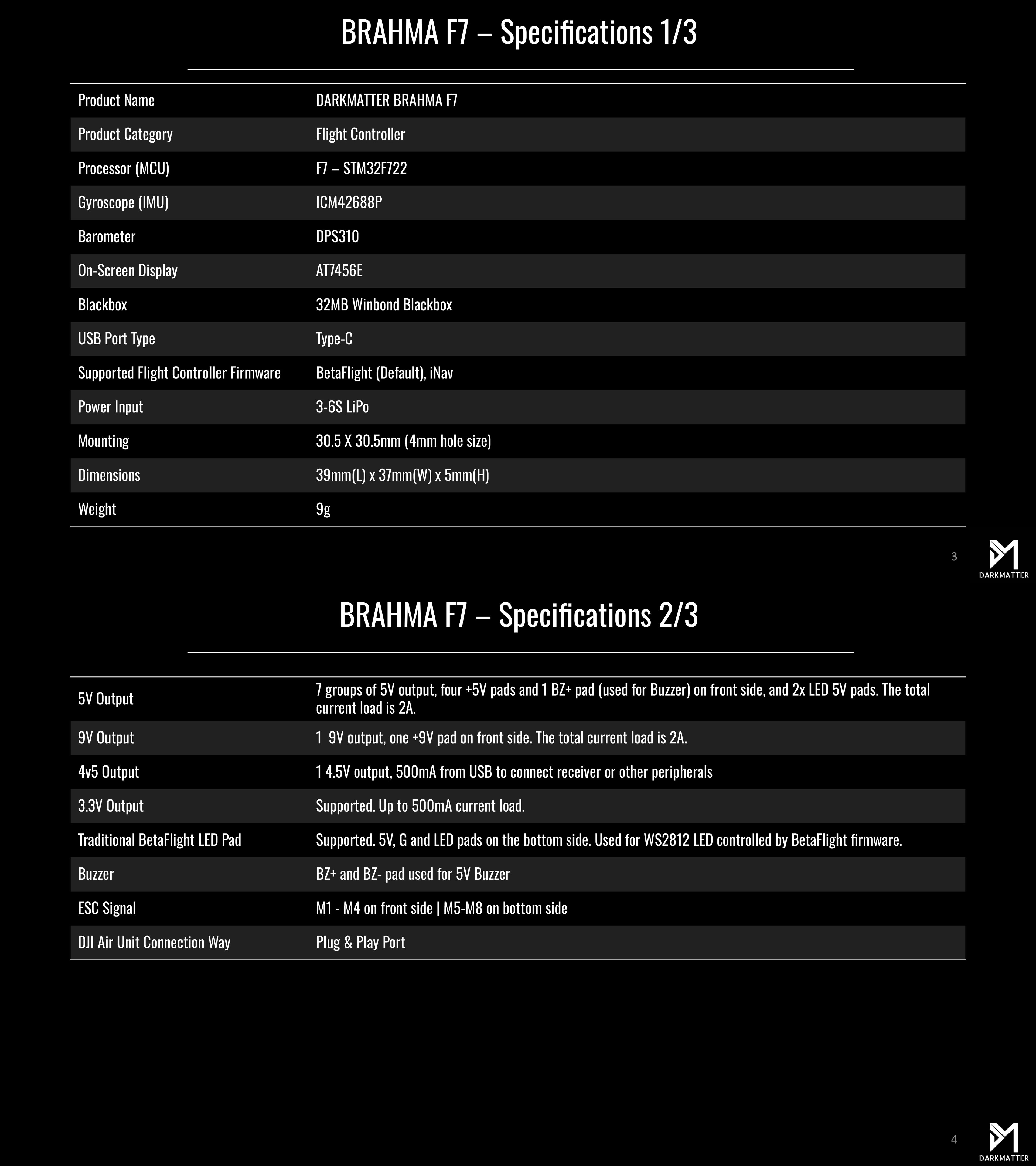

BRAHMA F7: Specifications 1/3

Point at a label or a wire to trace it. Click to keep it lit. Double-click to zoom.

Read the Brahma F7 manual as text

BRAHMA F7: Specifications 1/3

Product NameDarkmatter® Brahma F7
Product CategoryFlight Controller
Processor (MCU)F7 – STM32F722
Gyroscope (IMU)ICM42688P
BarometerDPS310
On-Screen DisplayAT7456E
Blackbox32MB Winbond Blackbox
USB Port TypeType-C
Supported Flight Controller FirmwareBetaFlight (Default), iNav
Power Input2S-6S LiPo or Li-ion
Mounting30.5 X 30.5mm (4mm hole size)
Dimensions39mm(L) x 37mm(W) x 5mm(H)
Weight9g

BRAHMA F7: Specifications 2/3

5V Output7 groups of 5V output, four +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 2x LED 5V pads. The total current load is 2A.
9V Output1 9V output, one +9V pad on front side. The total current load is 2A.
4v5 Output1 4.5V output, 500mA from USB to connect receiver or other peripherals
3.3V OutputSupported. Up to 500mA current load.
Traditional BetaFlight LED PadSupported. 5V, G and LED pads on the bottom side. Used for WS2812 LED controlled by BetaFlight firmware.
BuzzerBZ+ and BZ- pad used for 5V Buzzer
ESC SignalM1 - M4 on front side | M5-M8 on bottom side
DJI Air Unit Connection WayPlug & Play Port

BRAHMA F7: Specifications 3/3

BOOT ButtonSupported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
RSSI InputSupported. Named as RSI on the front side.
SmartPortUse any TX pad of UART for the SmartPort feature.
UART6 sets(UART1, UART2, UART3(For ESC Telemetry), UART4, UART5, UART6)
ESC Telemetry UARTR3(UART3)
I2CSupported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
OPERATING TEMPERATURE-20°C TO 70°C..
COUNTRY OF ORIGINDESIGNED AND MANUFACTURED IN INDIA

DIMENSIONS

Front · Back · 30.5MM · 4MM · 39MM · 37MM · Side · 5MM · 1.6MM

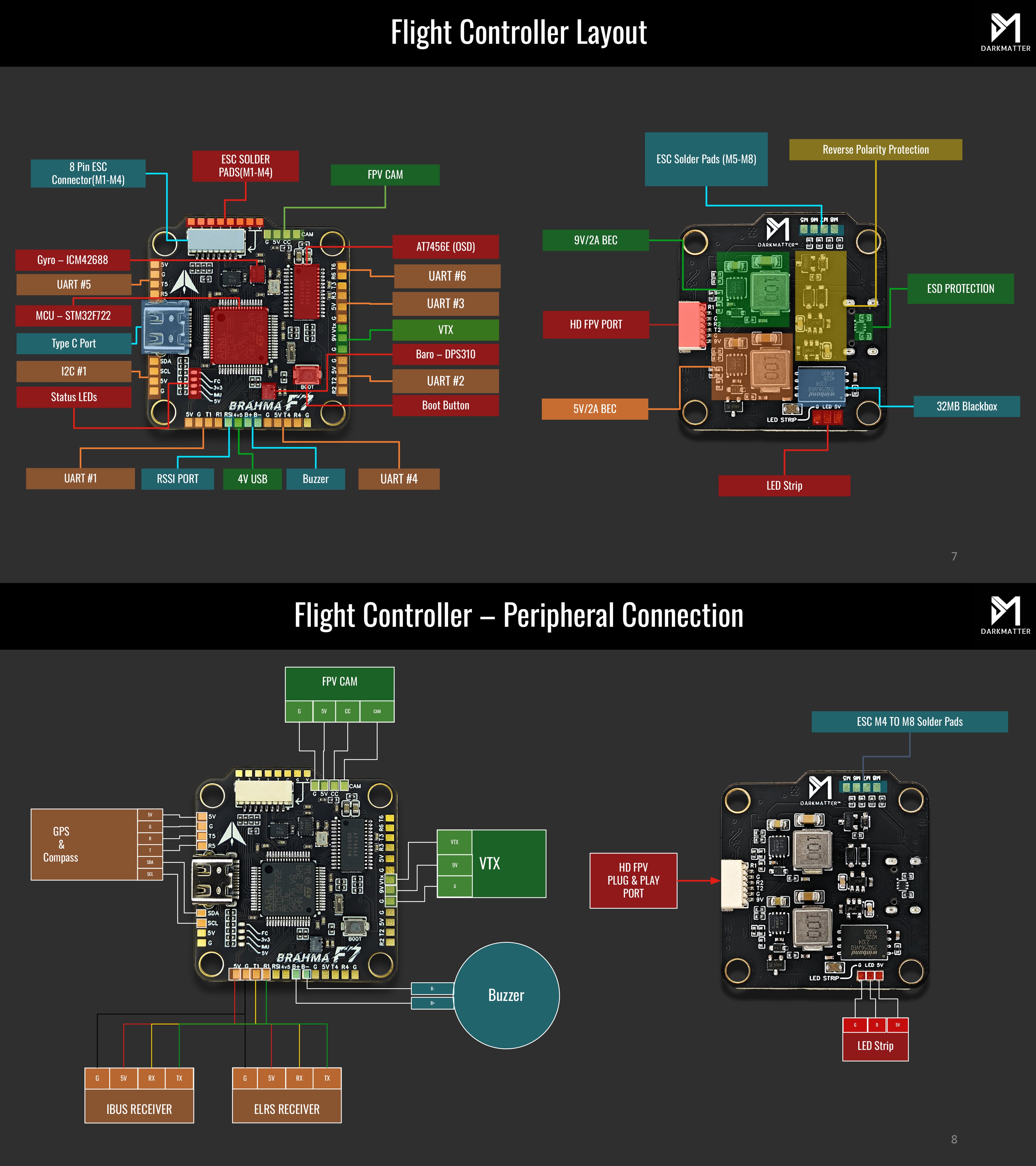

Flight Controller Layout

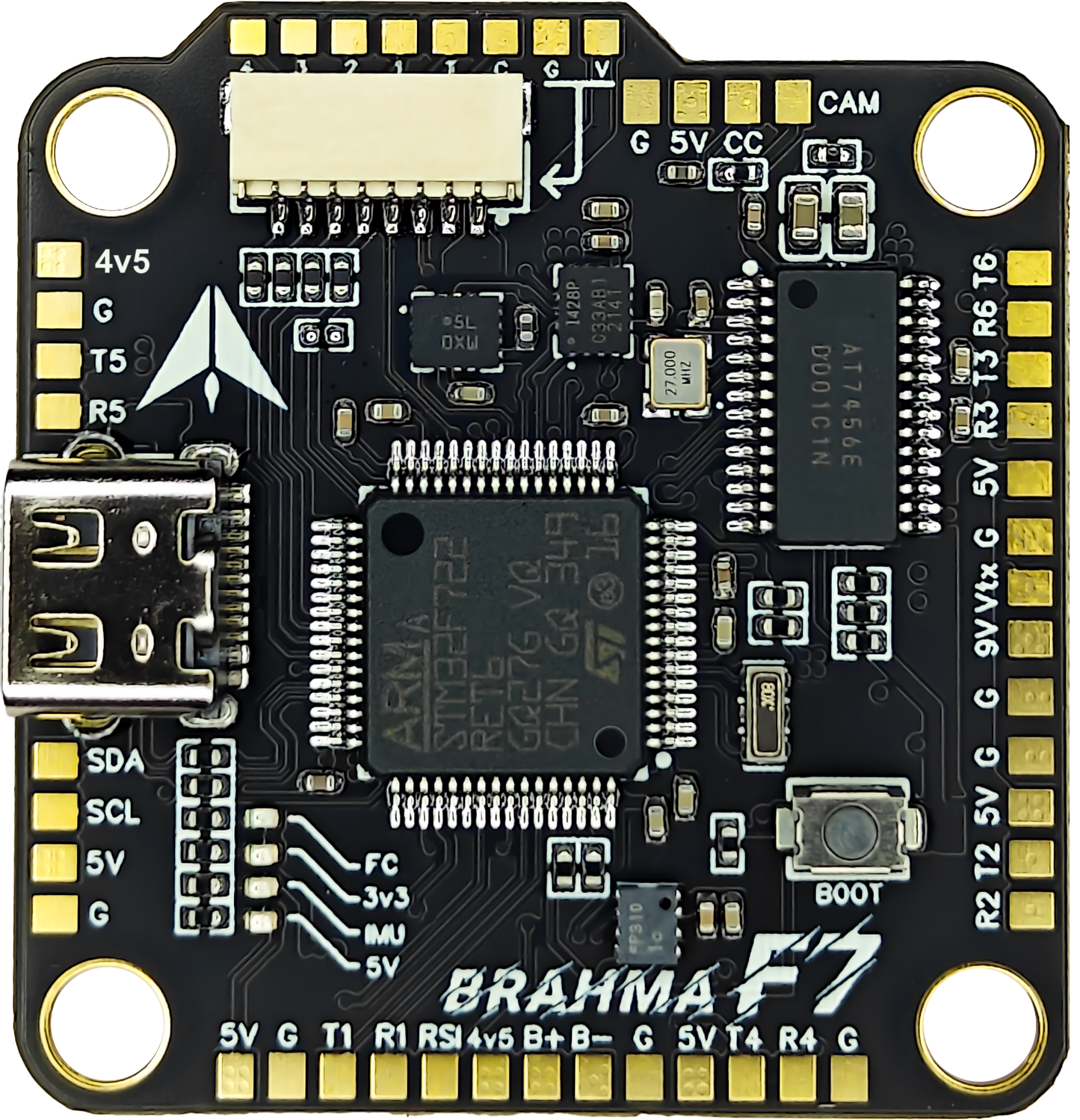

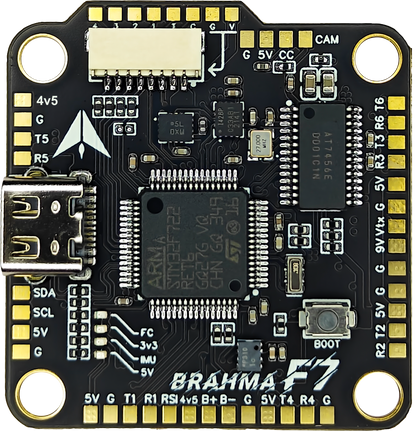

MCU – STM32F722 · AT7456E (OSD) · Gyro – ICM42688 · Baro – DPS310 · Boot Button · 8 Pin ESC Connector(M1-M4) · Type C Port · UART #5 · UART #1 · UART #4 · Buzzer · FPV CAM · ESC Solder Pads (M5-M8) · 9V/2A BEC · 5V/2A BEC · LED Strip · 32MB Blackbox · Reverse Polarity Protection · HD FPV PORT · ESD PROTECTION · Status LEDs · I2C #1 · UART #2 · VTX · UART #3 · UART #6 · ESC SOLDER PADS(M1-M4) · RSSI PORT · 4V USB

Flight Controller – Peripheral Connection

GPS & Compass · FPV CAM · ESC M4 TO M8 Solder Pads · HD FPV PLUG & PLAY PORT · 5V · SDA · SCL · B+ · B- · LED Strip · CAM · VTX · VTX · 9V · IBUS RECEIVER · ELRS RECEIVER · RX · TX · Buzzer · CC

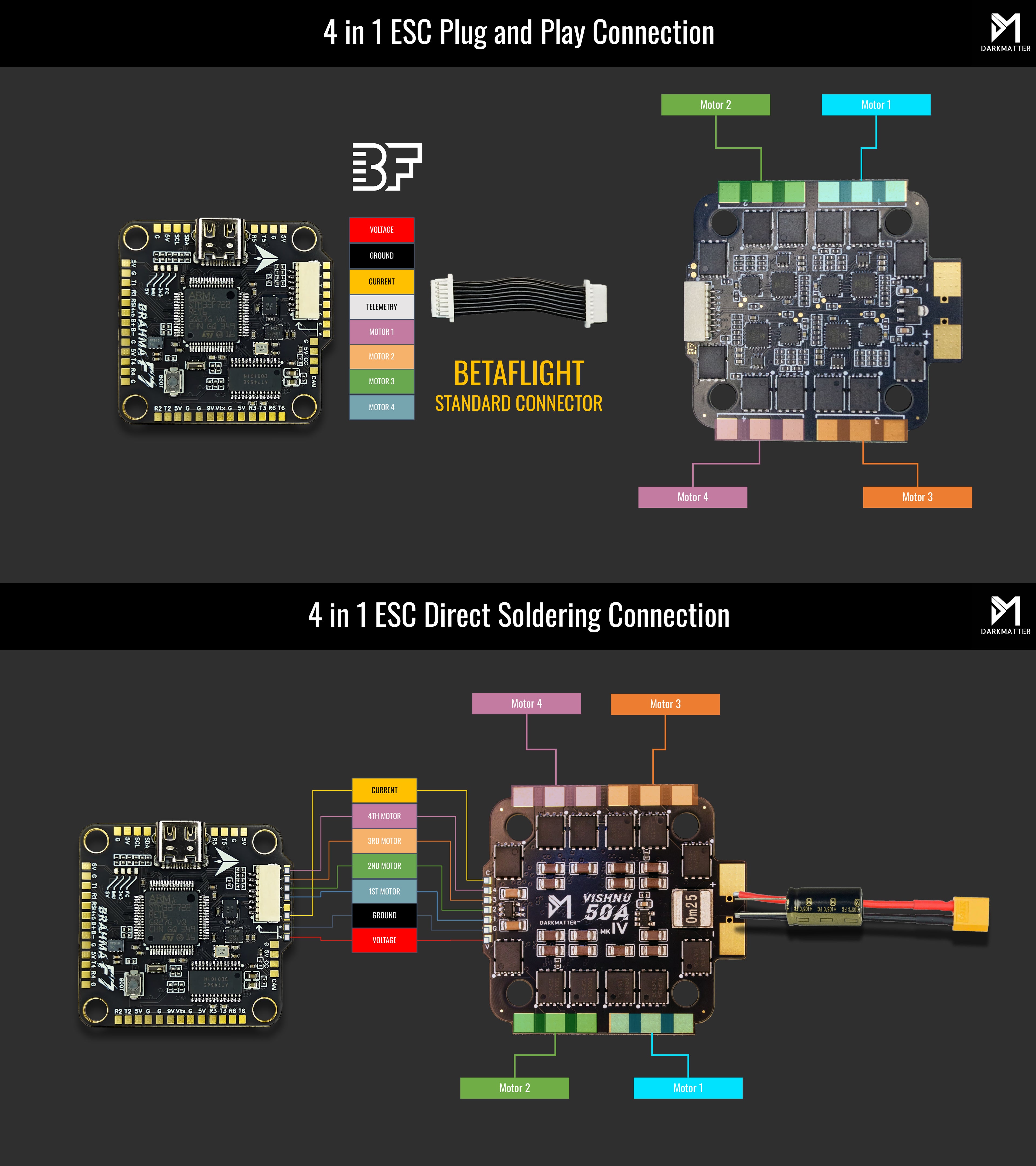

4 in 1 ESC Plug and Play Connection

CURRENT · MOTOR 1 · MOTOR 2 · MOTOR 3 · MOTOR 4 · GROUND · VOLTAGE · TELEMETRY · BETAFLIGHT STANDARD CONNECTOR · Motor 2 · Motor 4 · Motor 3 · Motor 1

4 in 1 ESC Direct Soldering Connection

Motor 2 · Motor 4 · Motor 3 · Motor 1 · CURRENT · 4TH MOTOR · 3RD MOTOR · 2ND MOTOR · 1ST MOTOR · GROUND · VOLTAGE

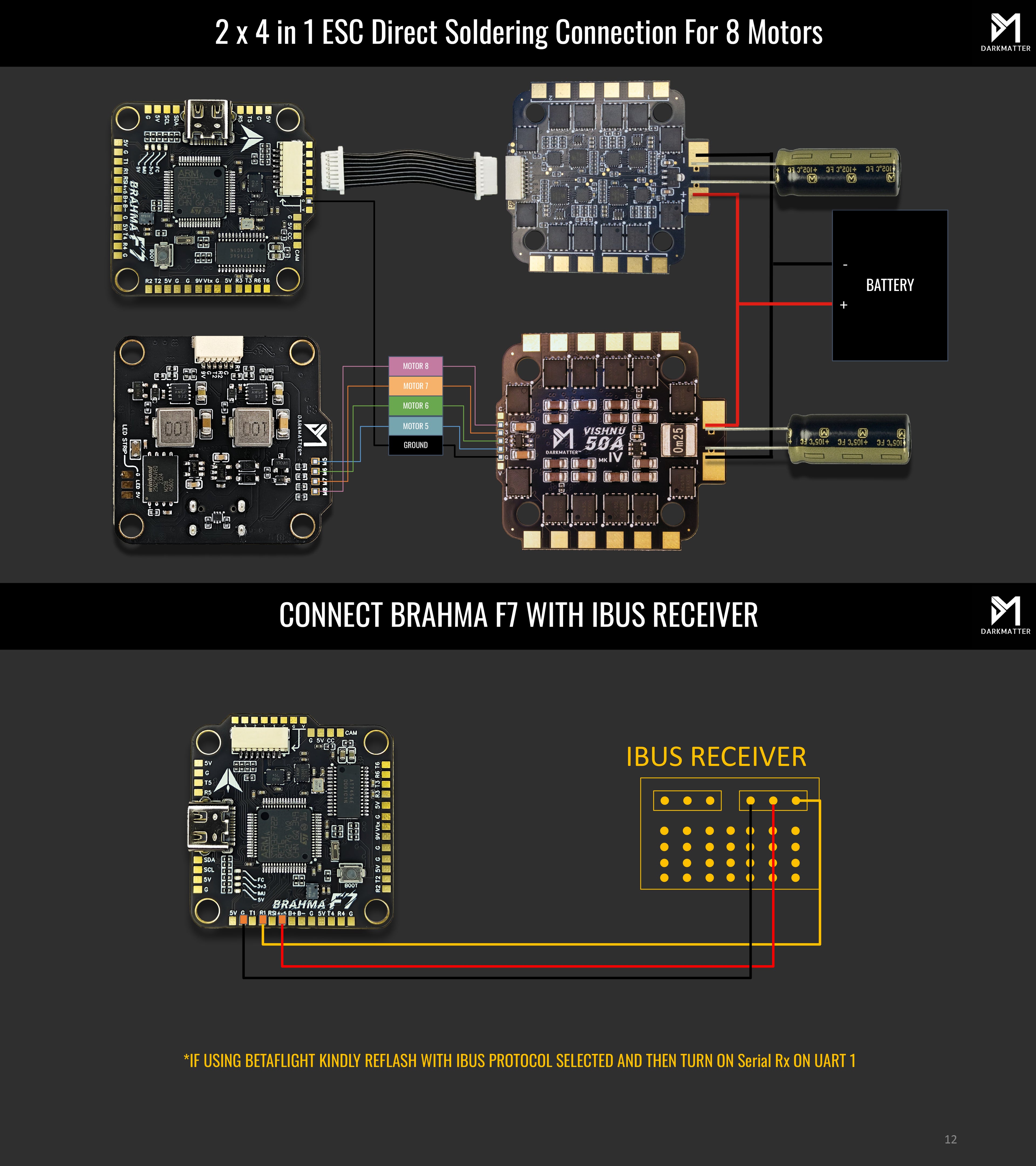

2 x 4 in 1 ESC Direct Soldering Connection For 8 Motors

MOTOR 8 · MOTOR 7 · MOTOR 6 · MOTOR 5 · GROUND · BATTERY

CONNECT BRAHMA F7 WITH IBUS RECEIVER

IBUS RECEIVER · *IF USING BETAFLIGHT KINDLY REFLASH WITH IBUS PROTOCOL SELECTED AND THEN TURN ON Serial Rx ON UART 1

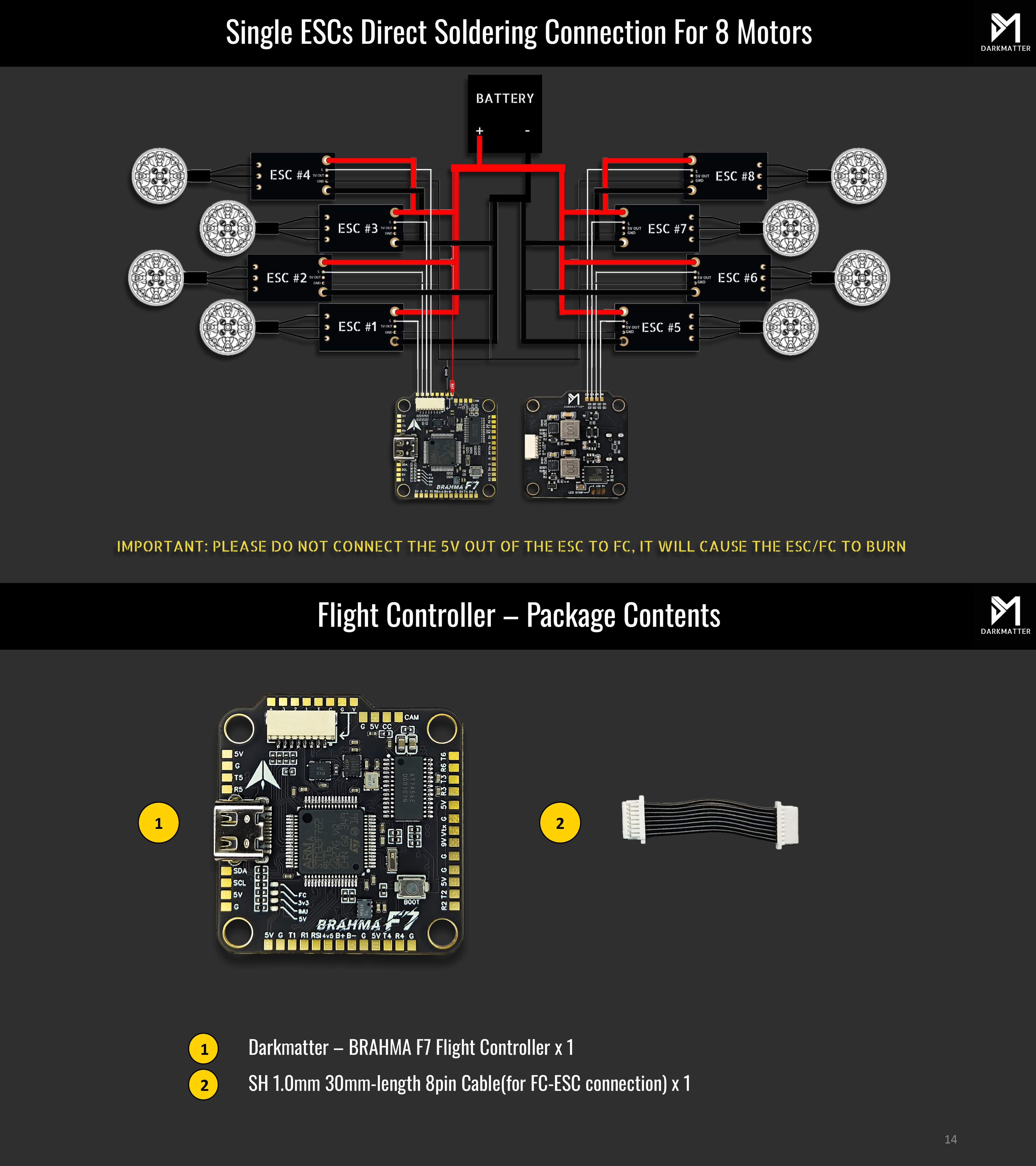

Single ESCs Direct Soldering Connection For 8 Motors

Flight Controller – Package Contents

Darkmatter – BRAHMA F7 Flight Controller x 1 · SH 1.0mm 30mm-length 8pin Cable(for FC-ESC connection) x 1

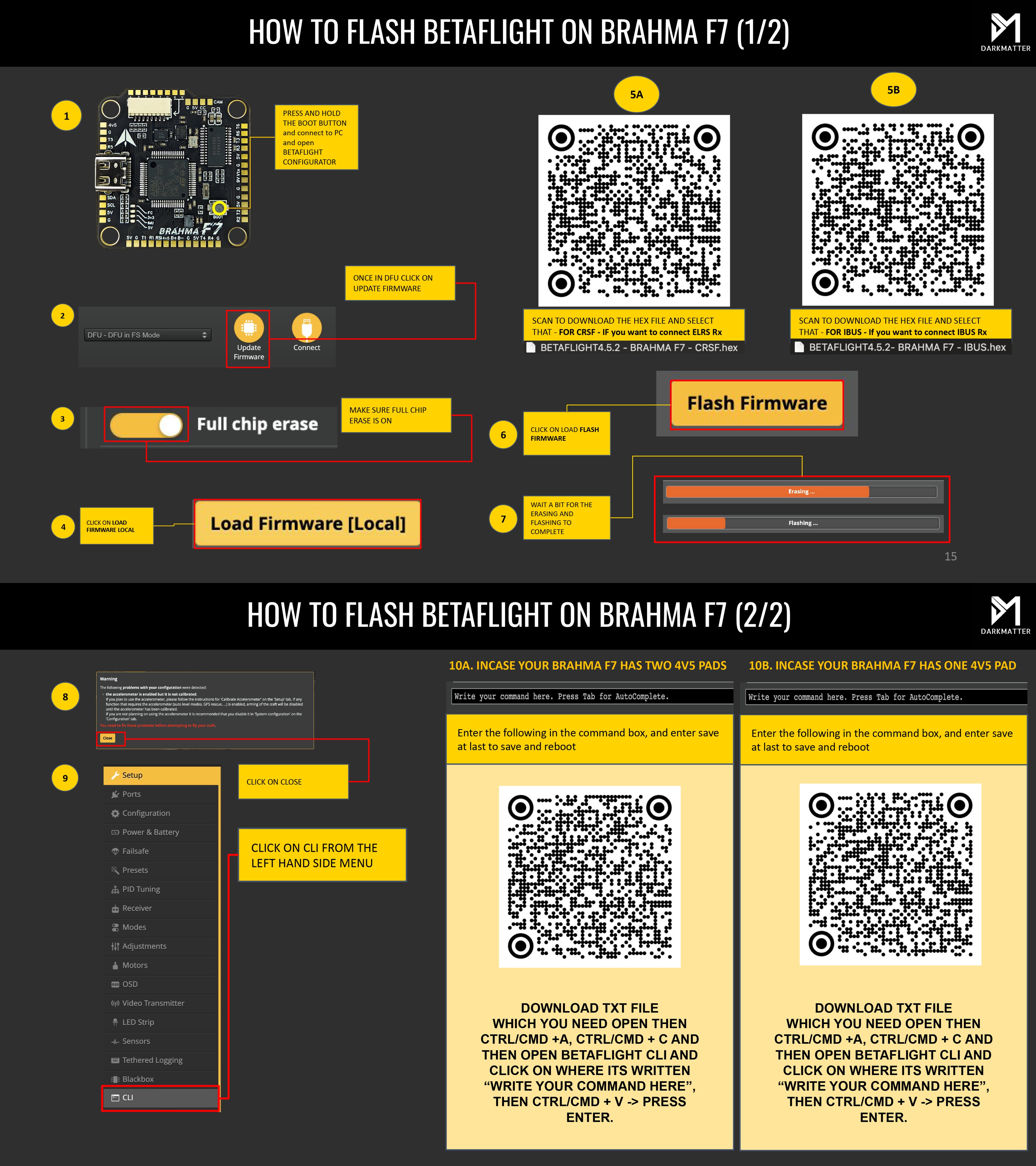

HOW TO FLASH BETAFLIGHT ON BRAHMA F7 (1/2)

  1. PRESS AND HOLD THE BOOT BUTTON and connect to PC and open BETAFLIGHT CONFIGURATOR
  2. ONCE IN DFU CLICK ON UPDATE FIRMWARE
  3. MAKE SURE FULL CHIP ERASE IS ON
  4. CLICK ON LOAD FIRMWARE LOCAL
  5. CLICK ON LOAD FLASH FIRMWARE
  6. WAIT A BIT FOR THE ERASING AND FLASHING TO COMPLETE

HOW TO FLASH BETAFLIGHT ON BRAHMA F7 (2/2)

  1. CLICK ON CLI FROM THE LEFT HAND SIDE MENU
  2. CLICK ON CLOSE

HOW TO FLASH INAV ON BRAHMA F7 (1/2)

  1. ONCE IN DFU CLICK ON FIRMWARE FLASHER
  2. PRESS AND HOLD THE BOOT BUTTON and connect to PC and open INAV CONFIGURATOR
  3. CLICK ON LOAD LOAD FIRMWARE ONLINE
  4. CLICK ON LOAD FLASH FIRMWARE
  5. WAIT A BIT FOR THE ERASING AND FLASHING TO COMPLETE

HOW TO FLASH INAV ON BRAHMA F7 (2/2)

  1. SELECT THE TYPE OF CRAFT YOU ARE MAKING
  2. SELECT THE UART & THE RECEIVER PROTOCOL FOR RX
  3. SELECT THE UART PORT FOR GPS

• Warranty Period: The BRAHMA F7 Flight Controller comes with a 6-month warranty from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover any physical damage to the product, including water damage or burns. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage. If the product is eligible, we will provide a replacement at no additional cost. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +91-8017193277.

• Warranty Period: The BRAHMA F7 Flight Controller comes with a 6-month warranty from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover any physical damage to the product, including water damage or burns. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage. If the product is eligible, we will provide a replacement at no additional cost. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +91-8017193277. · BRAHMA F7 Flight Controller - 6 Months Warranty
