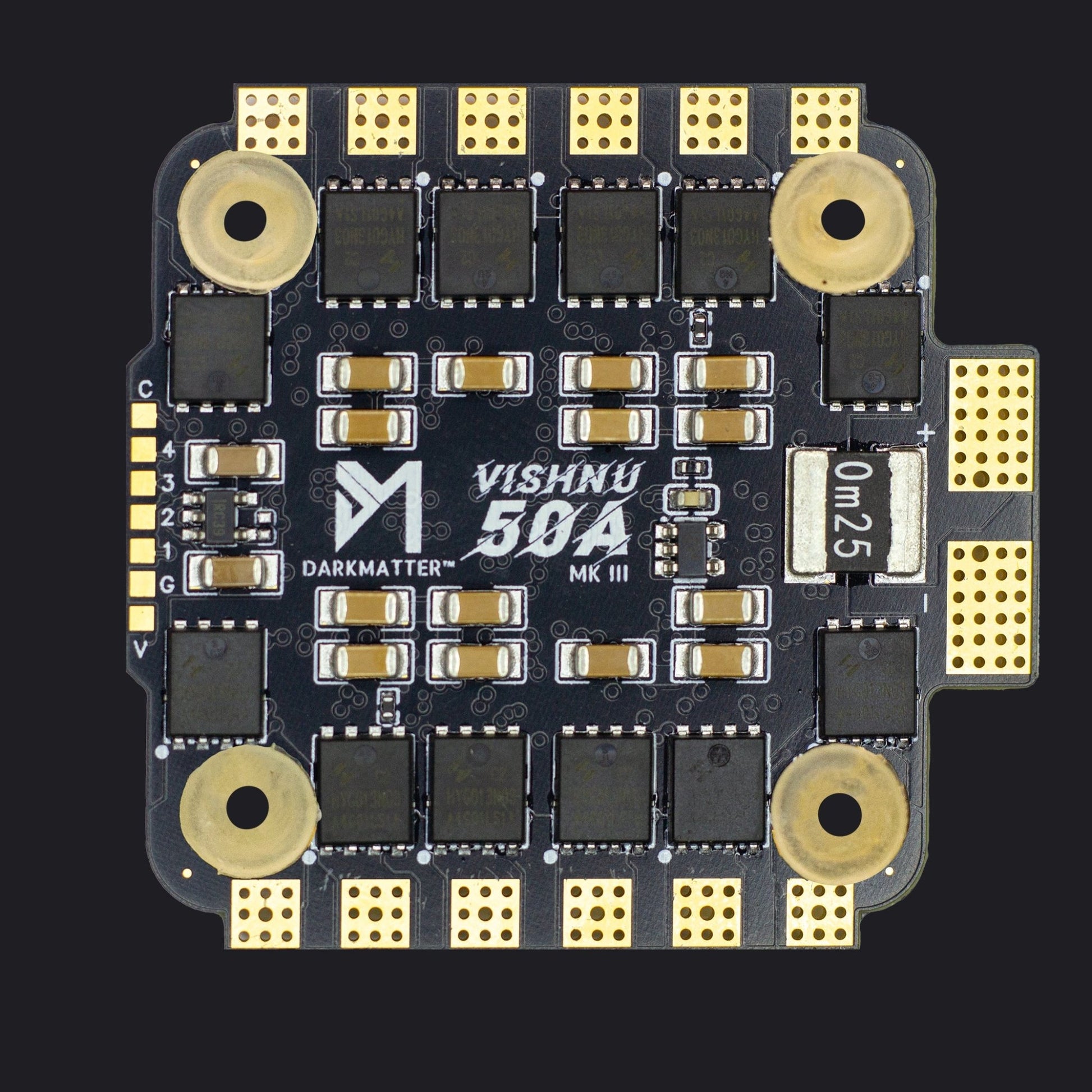

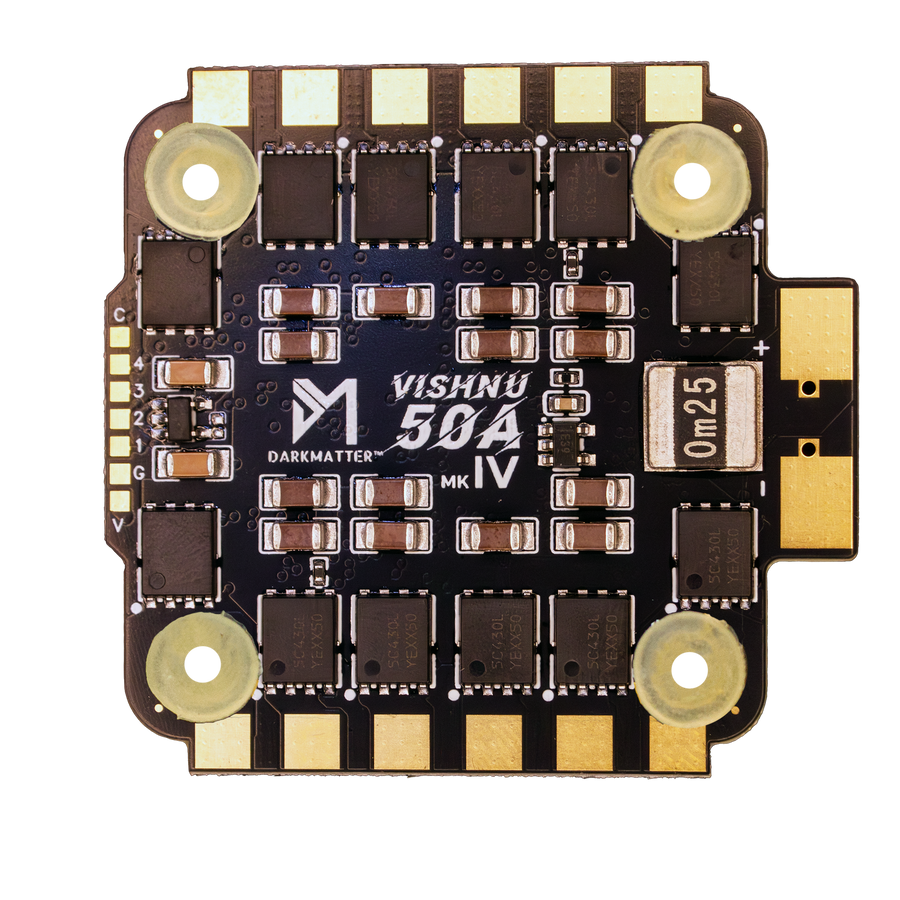

Vishnu 50
The actual 3D design of the ESC. Turn it over and look at it from any side.
Where the Vishnu 50 goes.
Four M3 screws come up through the frame on the standard 30.5 × 30.5 mm pattern. Scroll to build it in.

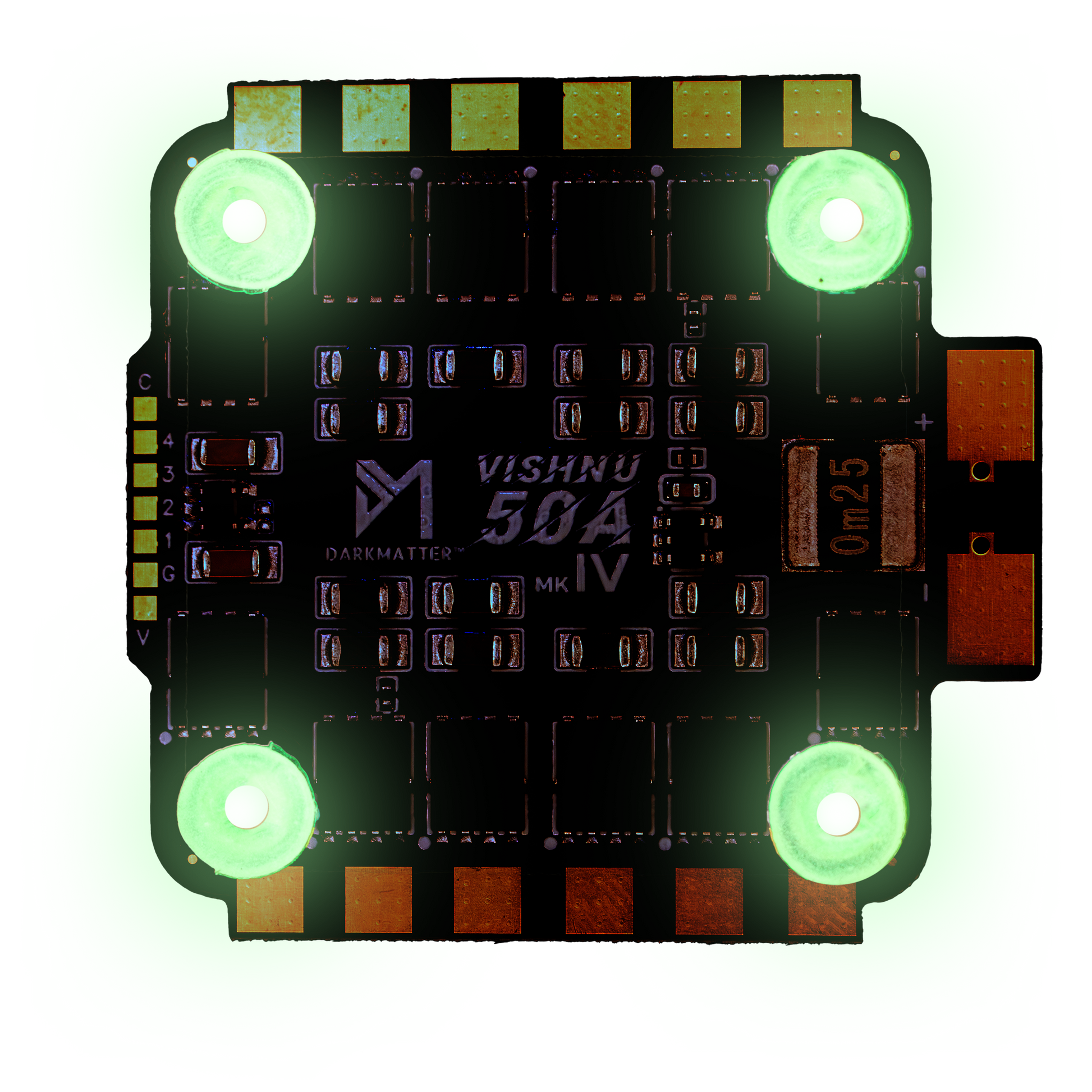

Grommets first.

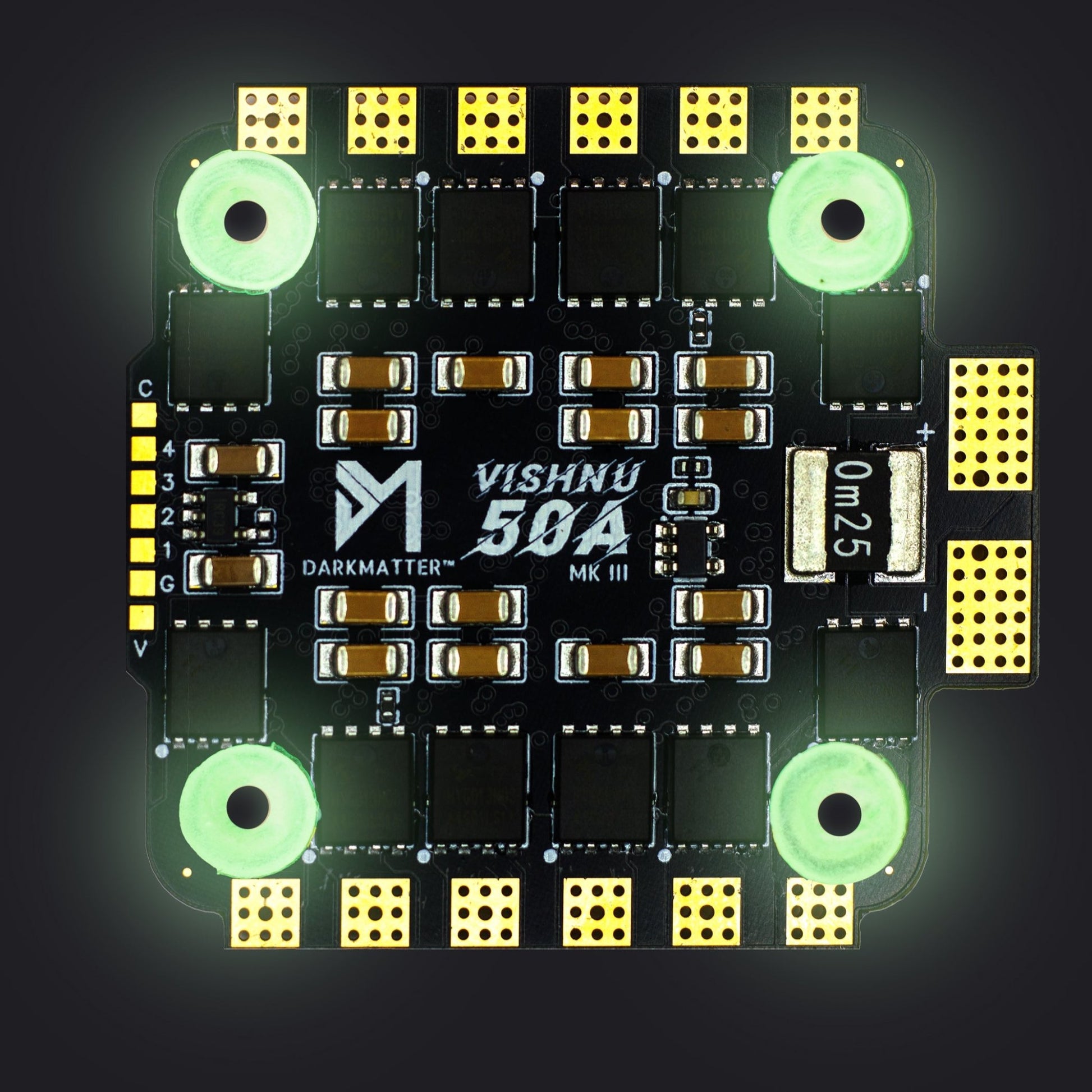

A soft TPE grommet presses into each mounting hole, so frame vibration stays out of the gyros. We injection-mould them ourselves.
Vishnu, then Brahma.
The Vishnu 50 slides down the screws first. The Brahma F4 sits on top. Shown here under a Brahma F4.
Four nuts. One cable.
An 8-pin cable links the two boards. Tighten four nuts, close the frame, and you are wired.
One stack.
Many machines.

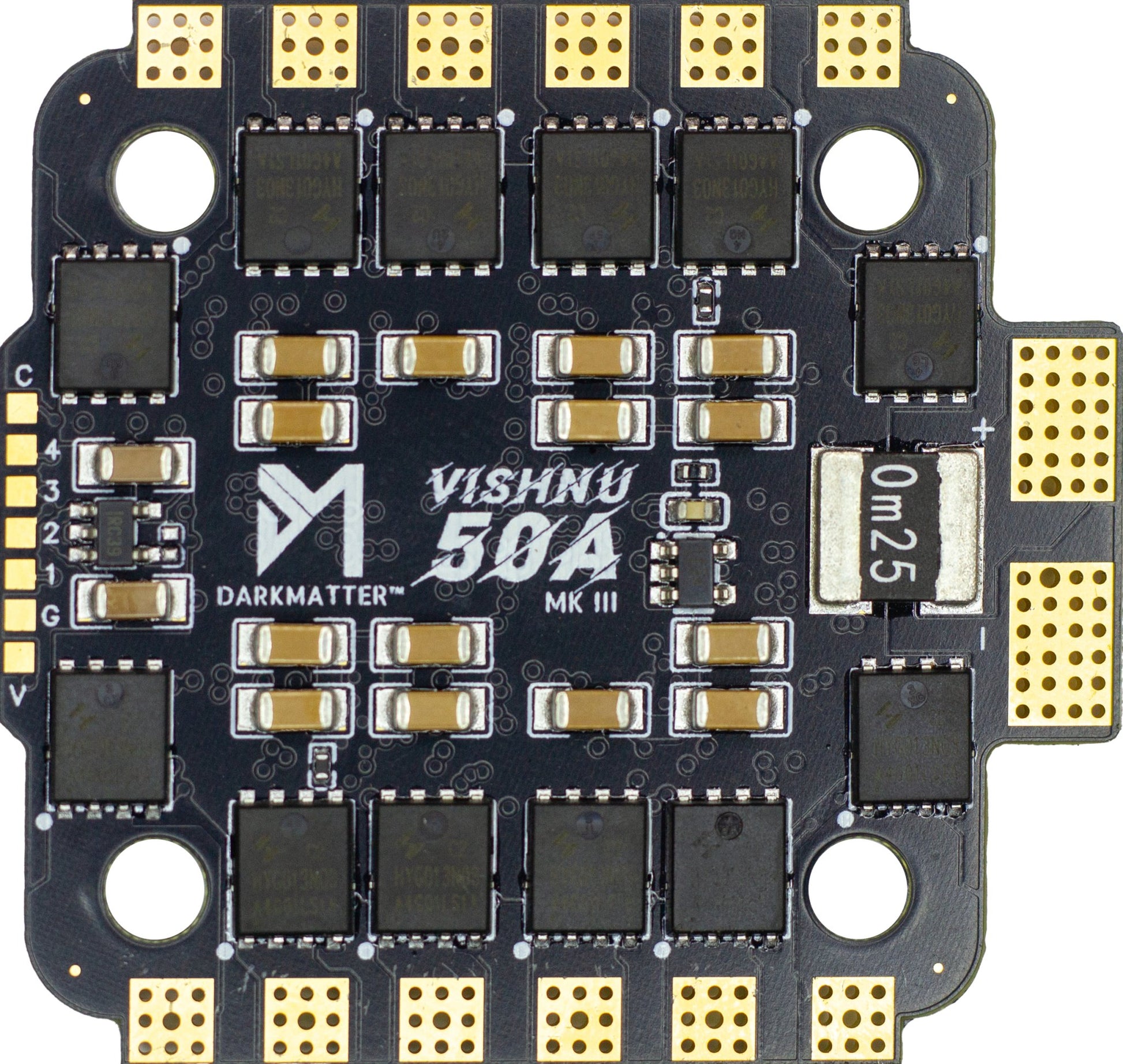

Four ESCs.
One board.
Scroll to fly across the real board model.

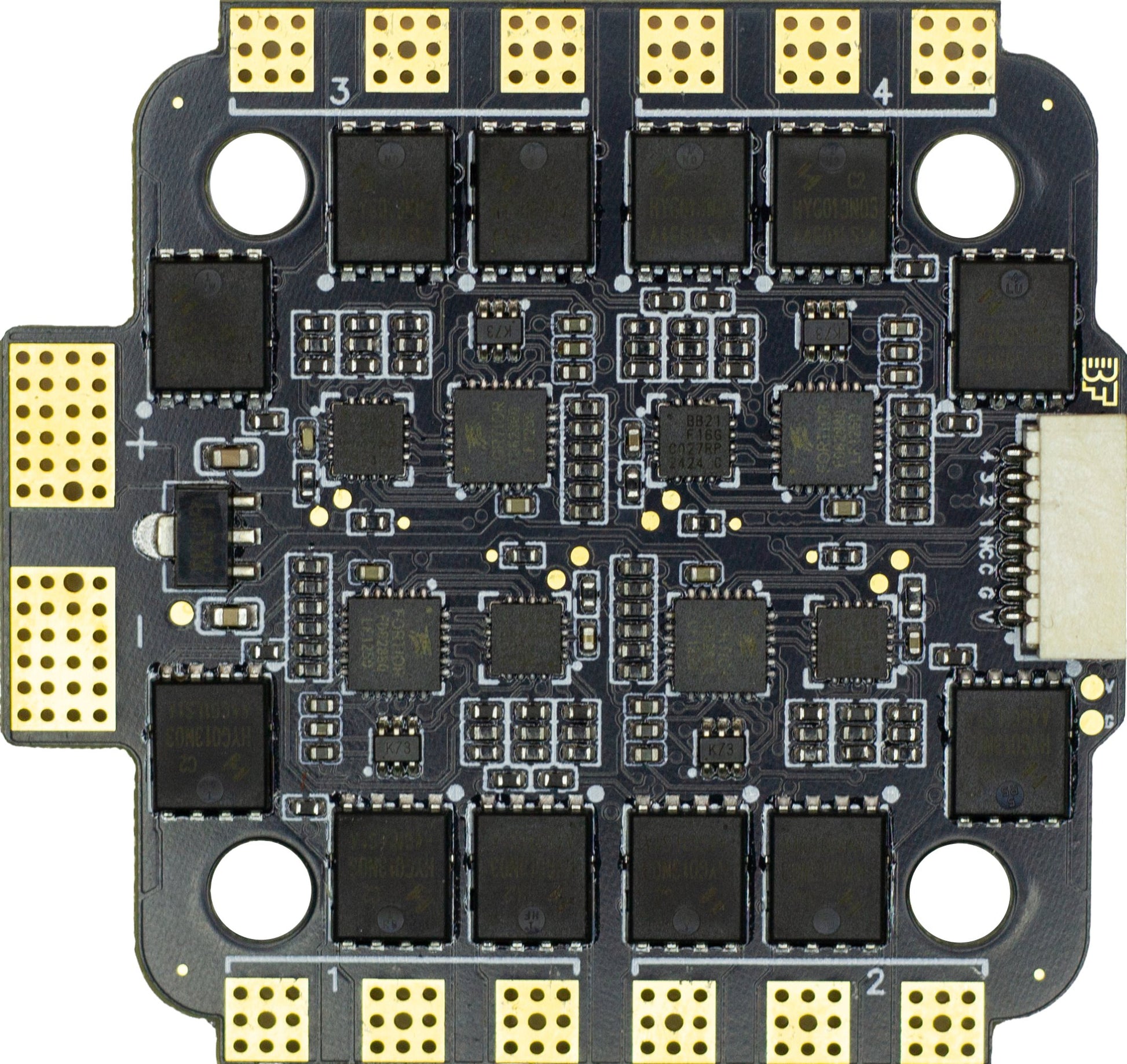

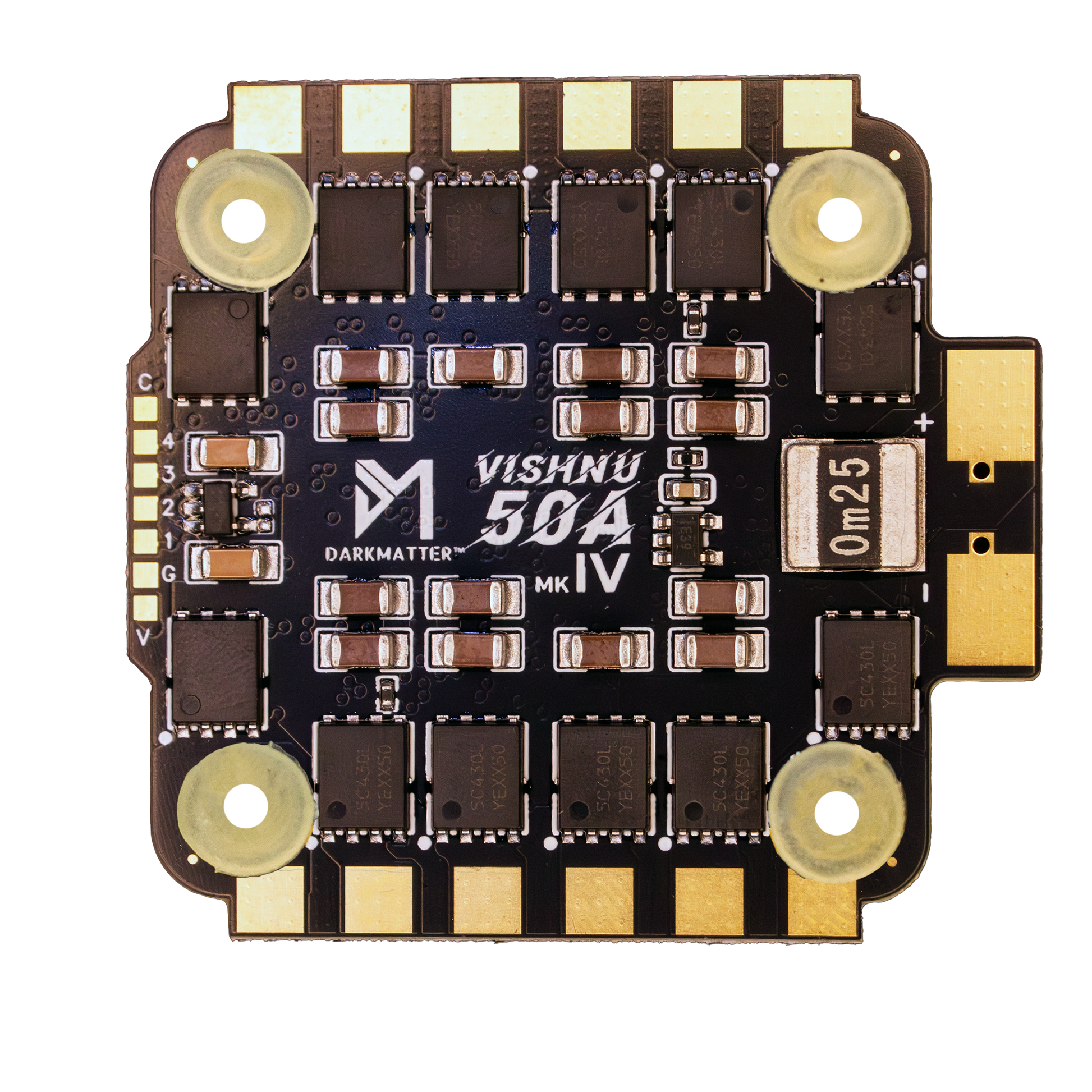

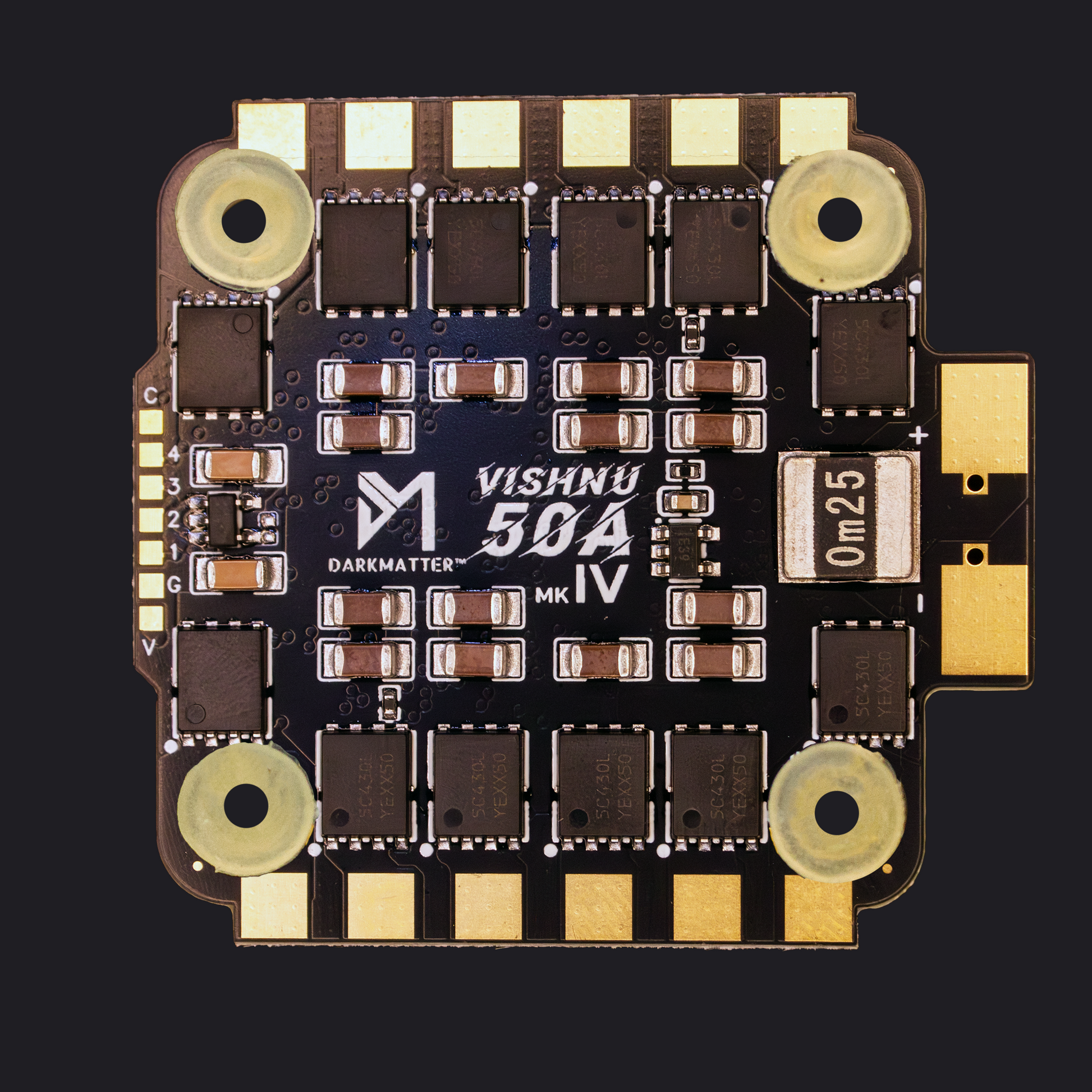

24 MOSFETs
Six for every motor, split across both sides of the board to spread the heat.
Four drivers
One microcontroller and gate driver per motor, running BLHeli_S or BlueJay.
One 8-pin plug
Four motor signals, current and battery voltage on a single cable to any Brahma.
LiPo pads
Wide solder pads for the battery leads.
Three pads per motor
Numbered 1 to 4 on the board, so wiring is hard to get wrong.

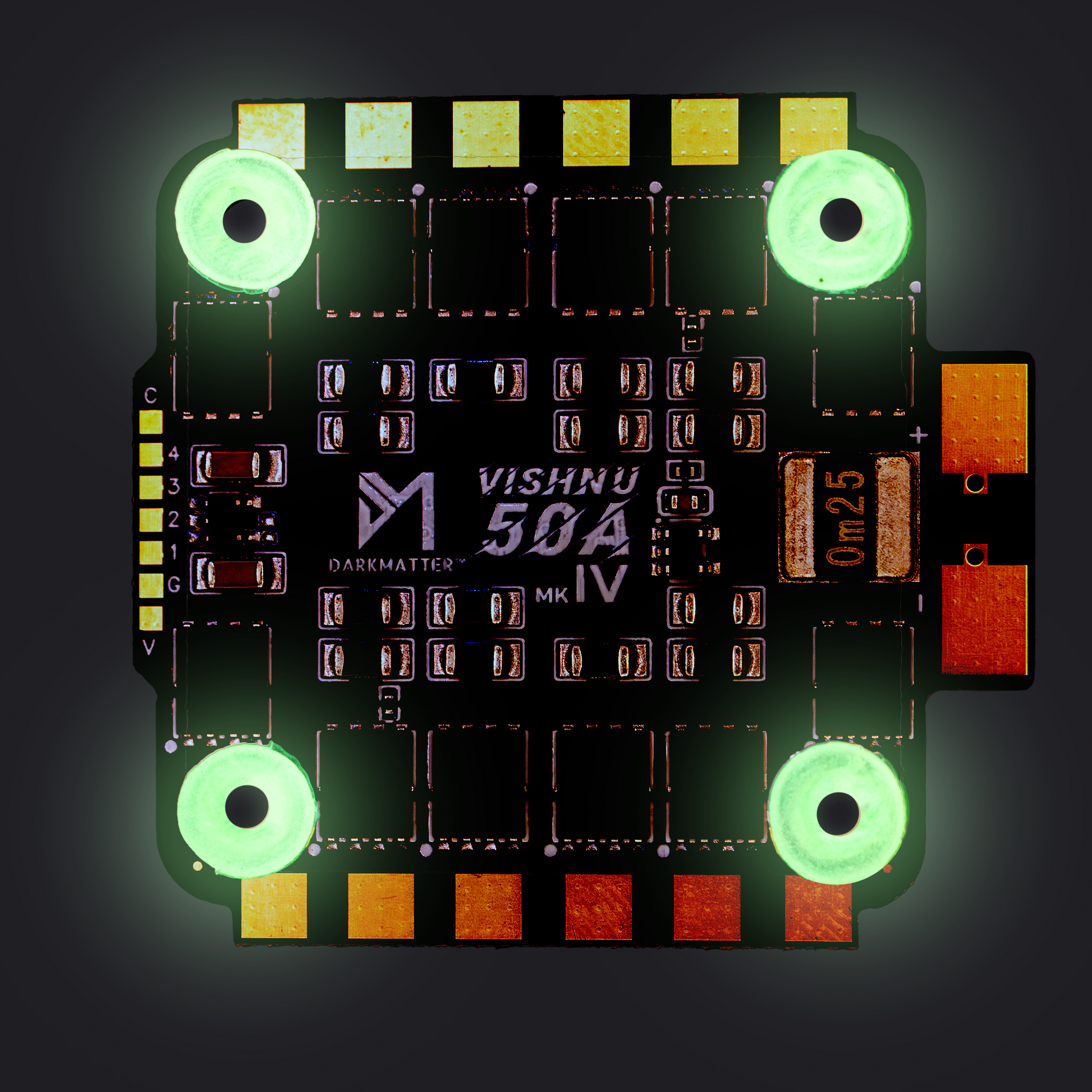

VISHNU
50
Marked and numbered.
Current sensor
A precision shunt measures the whole pack current for the flight controller.
Direct pads
The same signals as the plug, on pads, for flexible wiring.
Make your ESC sing.
On BlueJay, the Vishnu plays a startup tune through the motors. Compose yours here, then paste it into ESC Configurator.
In ESC Configurator: connect the Vishnu, read settings, open the melody editor, paste, then write. Custom tunes need BlueJay firmware. The sound here is a preview; your motors will sound rougher.
Vishnu 50 specifications
A 4-in-1 ESC rated at 50A continuous per channel and 70A burst. BLHeli_S or BlueJay, DShot300/600 and a built-in current sensor.
| Type | 4-in-1 ESC |
|---|---|
| Continuous current | 50A per channel, 200A in total |
| Burst current | 70A for 5 seconds |
| Firmware | BLHeli_S or BlueJay |
| Protocol | DShot300 / DShot600 |
| Input | 2–6S LiPo |
| Current sensor | Built in |
| Motors | 1900KV or below on 6S |
| Capacitor | Low-ESR 1000 µF included |
| Flight controller connection | 8-pin plug, or direct solder pads |
| Mounting | 30.5 × 30.5 mm |
| Dimensions | 46 × 48.8 × 5.7 mm |
| Weight | 13 g |
| Operating temperature | −10 °C to 70 °C |
| Made in | India: designed in India, assembled in Bally, West Bengal |
Book your Vishnu 50
Message us on WhatsApp. We reply with availability, price and delivery time, and help you pick the right parts for your build.
Vishnu 50 user manual
Point at any label to see the wire and the part it belongs to. Step through the flashing guides. Zoom in on anything.
Point at a label or a wire to trace it. Click to keep it lit. Double-click to zoom.

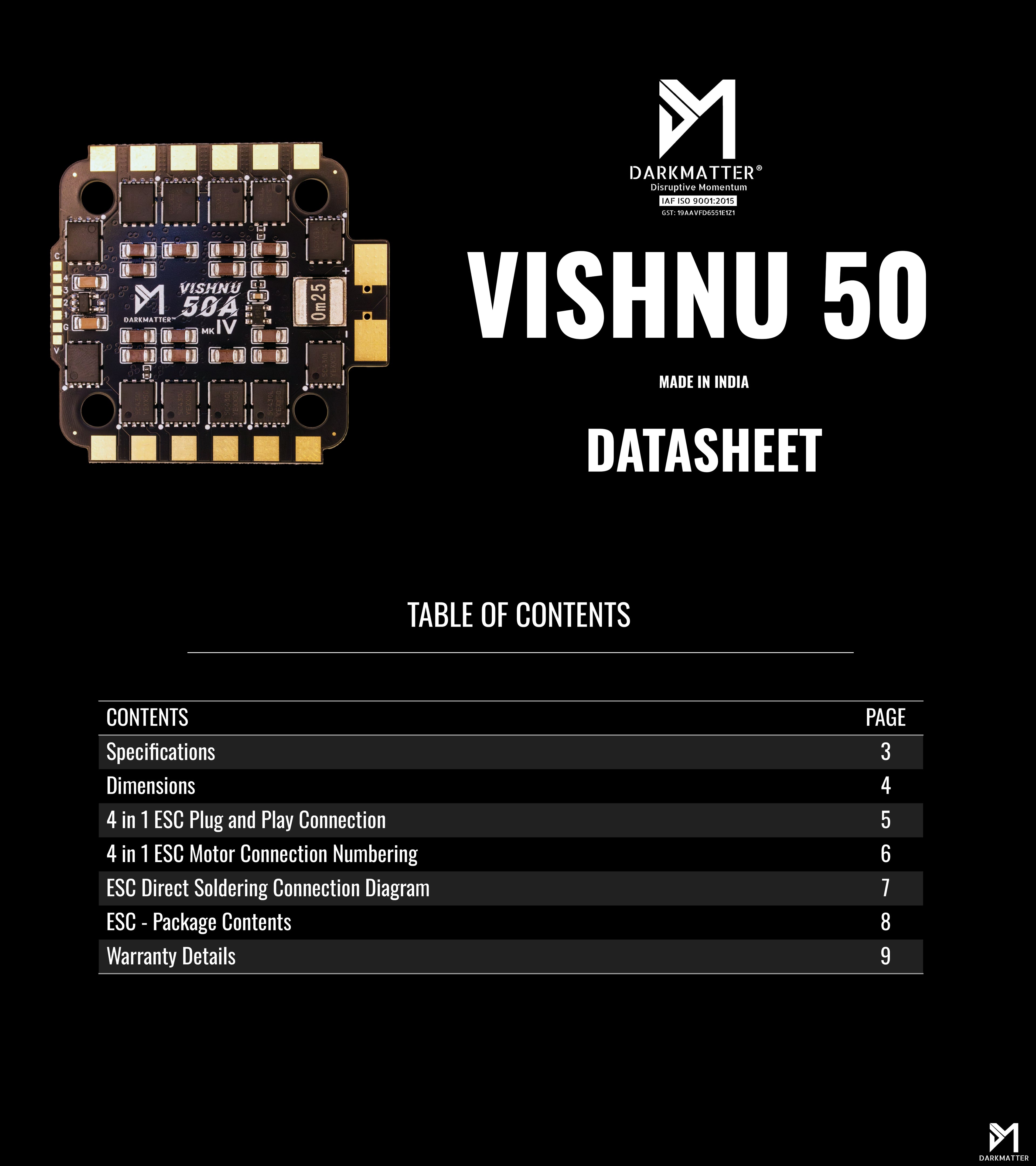

Read the Vishnu 50 manual as text

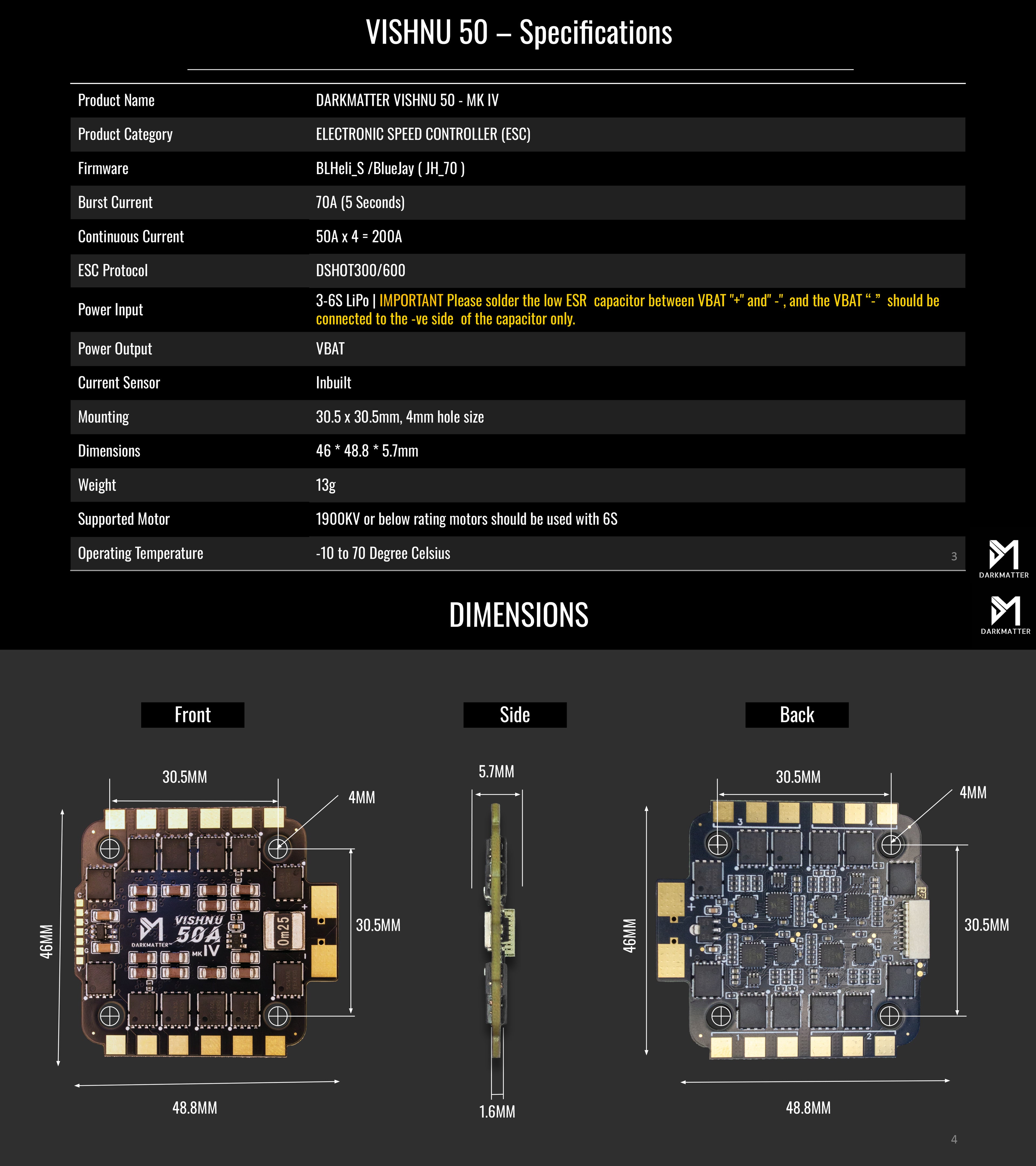

VISHNU 50 – Specifications
| Product Name | DARKMATTER VISHNU 50 - MK IV |
|---|---|
| Product Category | ELECTRONIC SPEED CONTROLLER (ESC) |
| Firmware | BLHeli_S /BlueJay ( JH_70 ) |
| Burst Current | 70A (5 Seconds) |
| Continuous Current | 50A x 4 = 200A |
| ESC Protocol | DSHOT300/600 |
| Power Input | 2-6S LiPo | IMPORTANT Please solder the low ESR capacitor between VBAT "+" and" -", and the VBAT “-” should be connected to the -ve side of the capacitor only. |
| Power Output | VBAT |
| Current Sensor | Inbuilt |
| Mounting | 30.5 x 30.5mm, 4mm hole size |
| Dimensions | 46 * 48.8 * 5.7mm |
| Weight | 13g |
| Supported Motor | 1900KV or below rating motors should be used with 6S |
| Operating Temperature | -10 to 70 Degree Celsius |

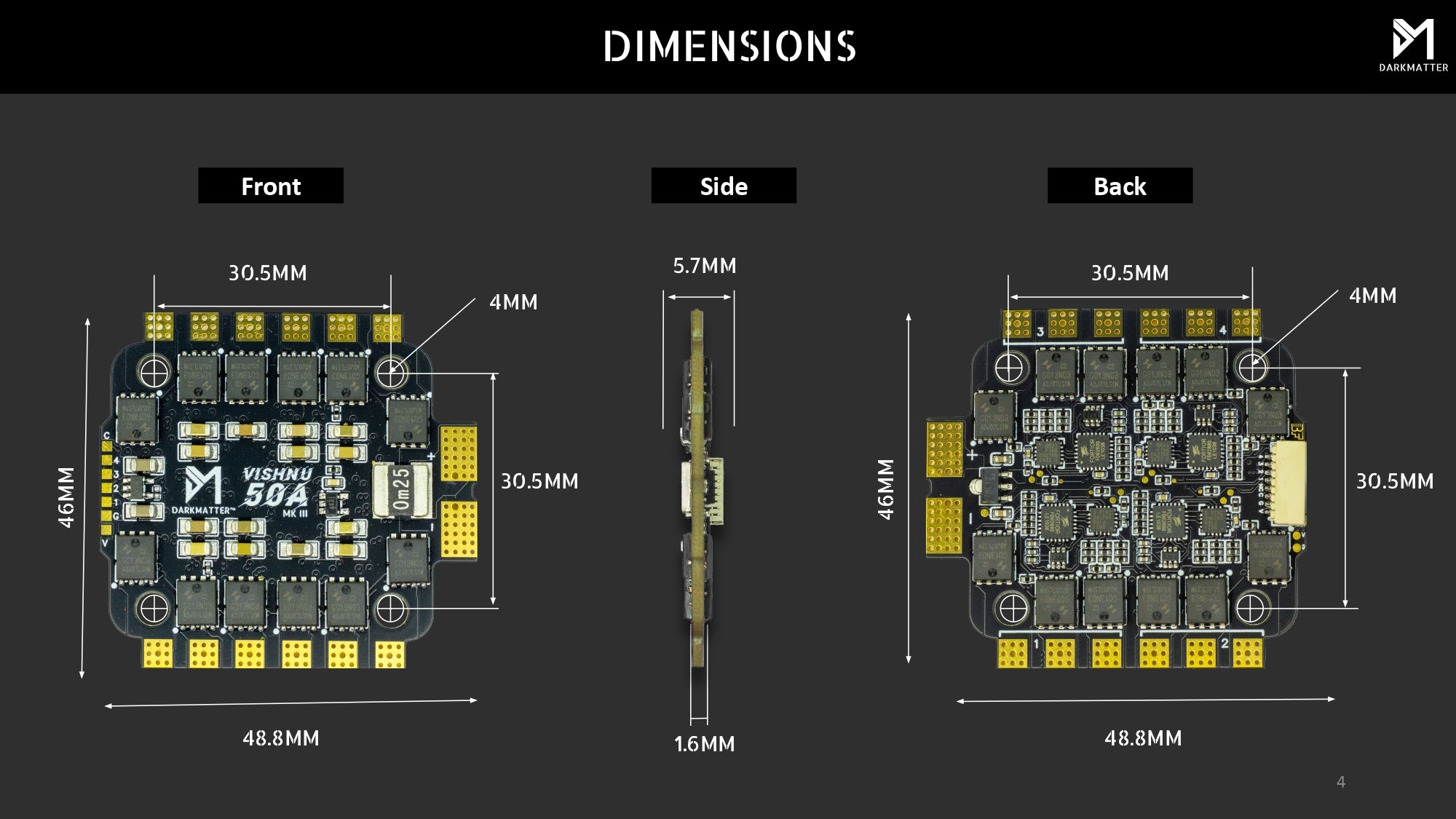

DIMENSIONS
Front · Back · 30.5MM · 4MM · 46MM · 48.8MM · Side · 5.7MM · 1.6MM

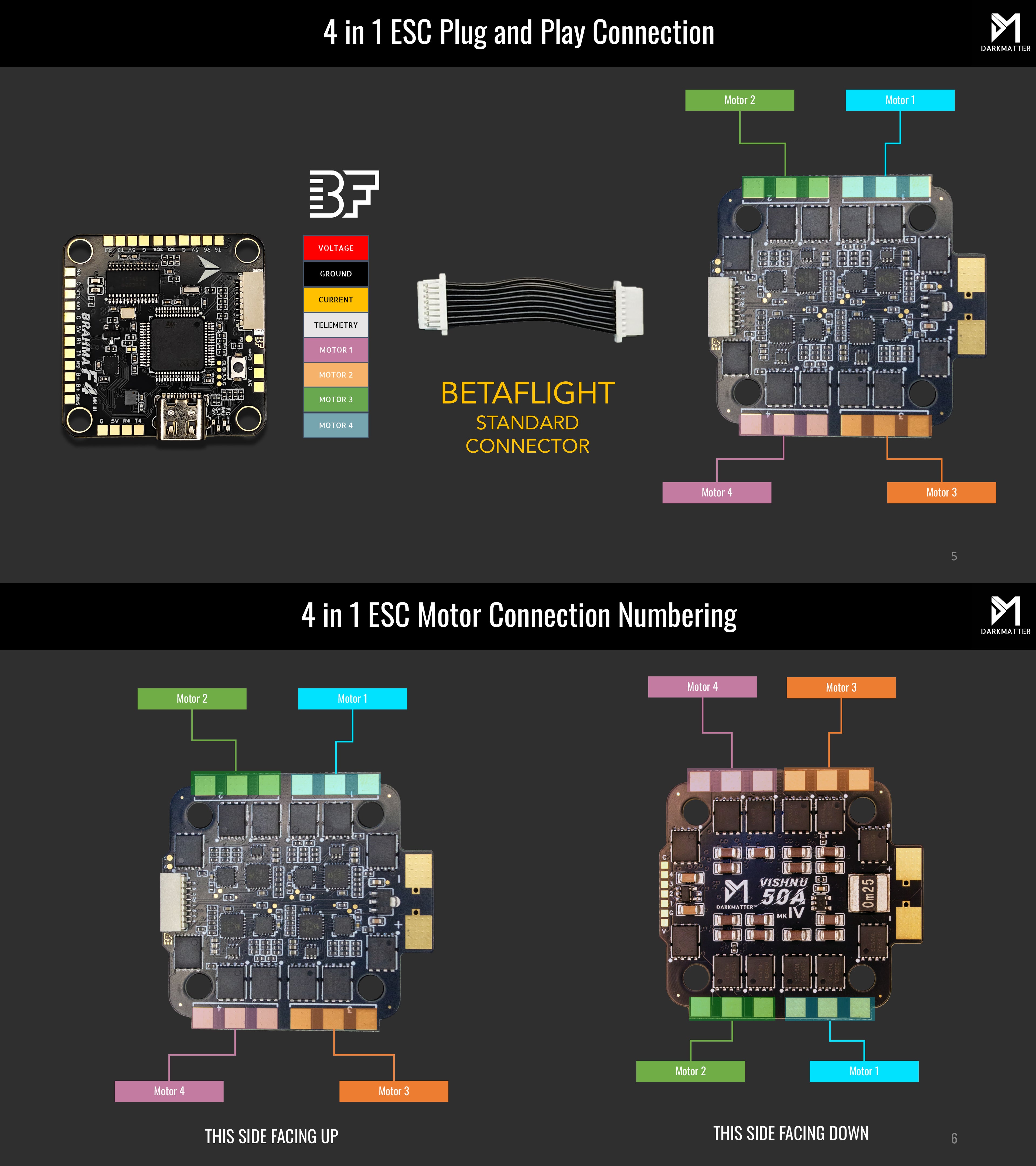

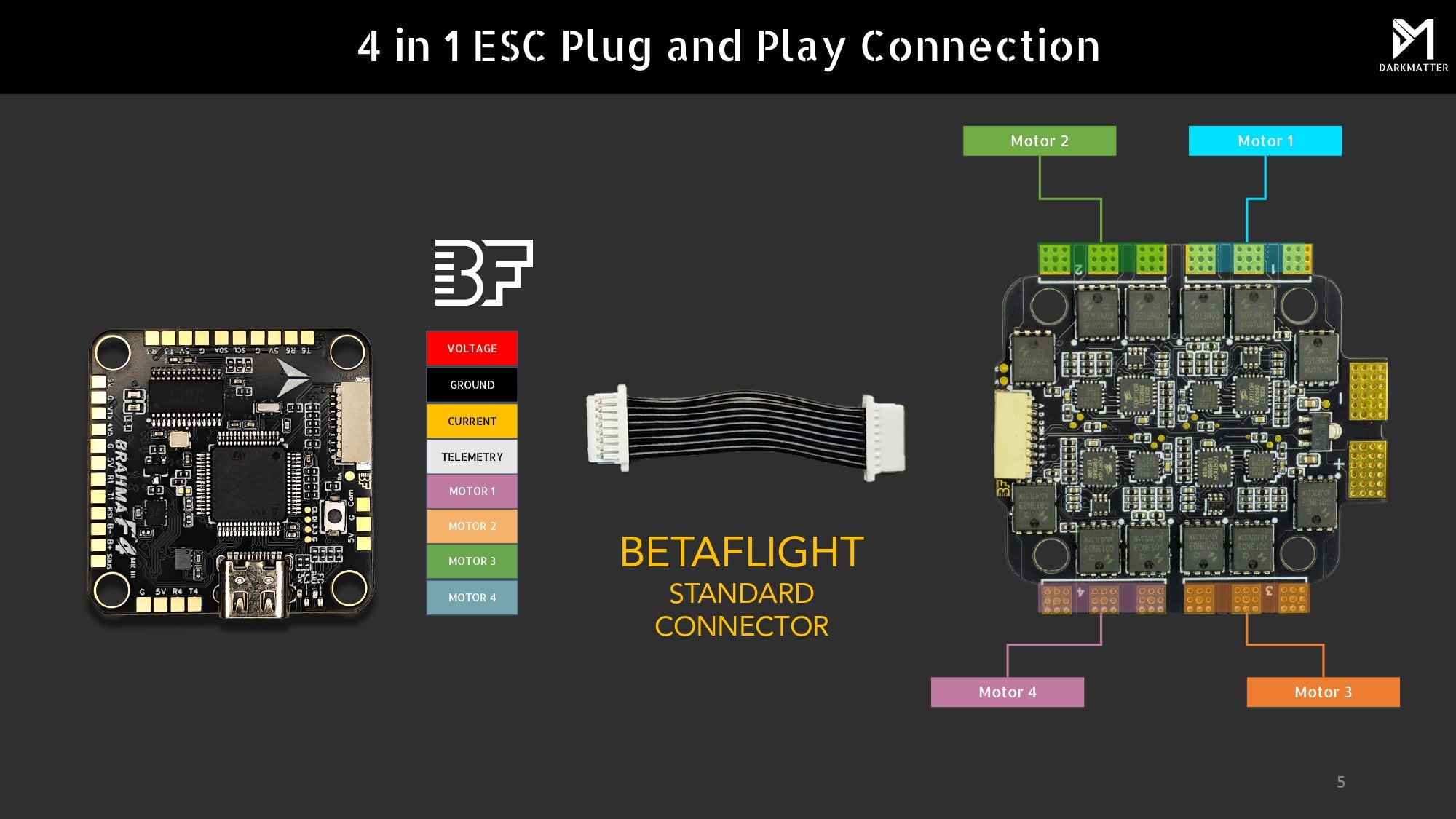

4 in 1 ESC Plug and Play Connection
CURRENT · MOTOR 1 · MOTOR 2 · MOTOR 3 · MOTOR 4 · GROUND · VOLTAGE · TELEMETRY · Motor 2 · Motor 4 · Motor 3 · Motor 1 · BETAFLIGHT STANDARD CONNECTOR

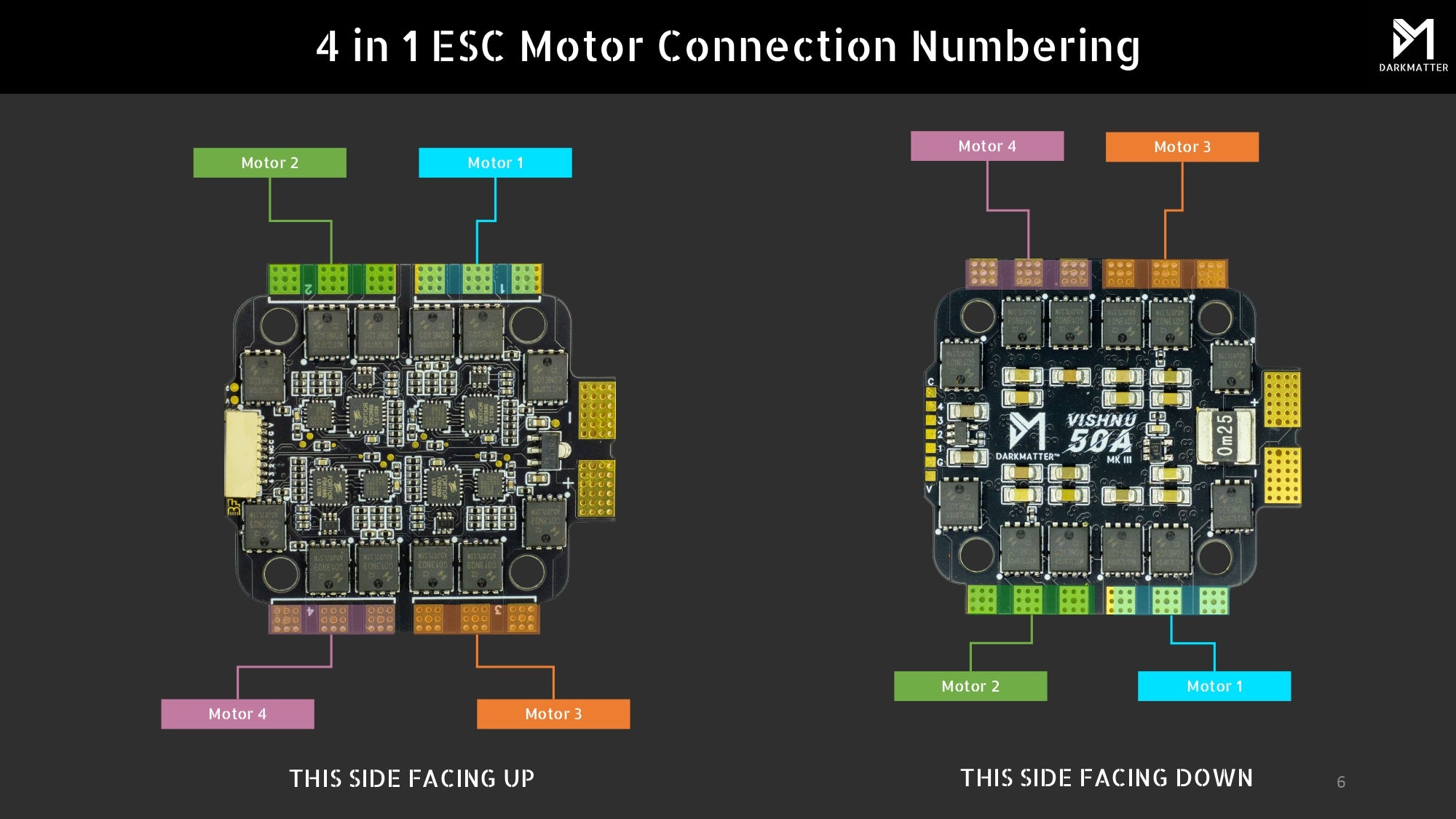

4 in 1 ESC Motor Connection Numbering
Motor 2 · Motor 4 · Motor 3 · Motor 1 · THIS SIDE FACING UP · THIS SIDE FACING DOWN

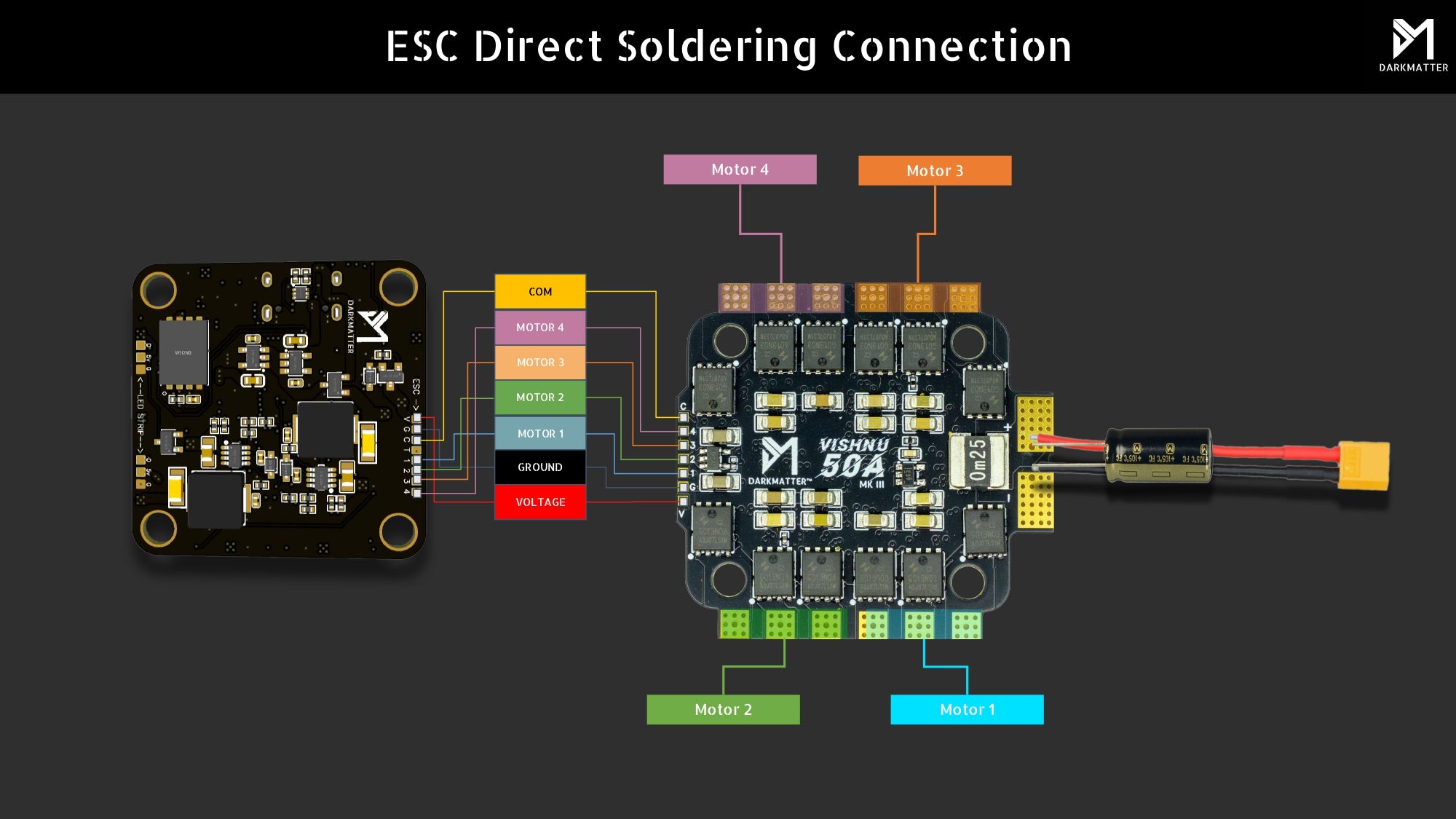

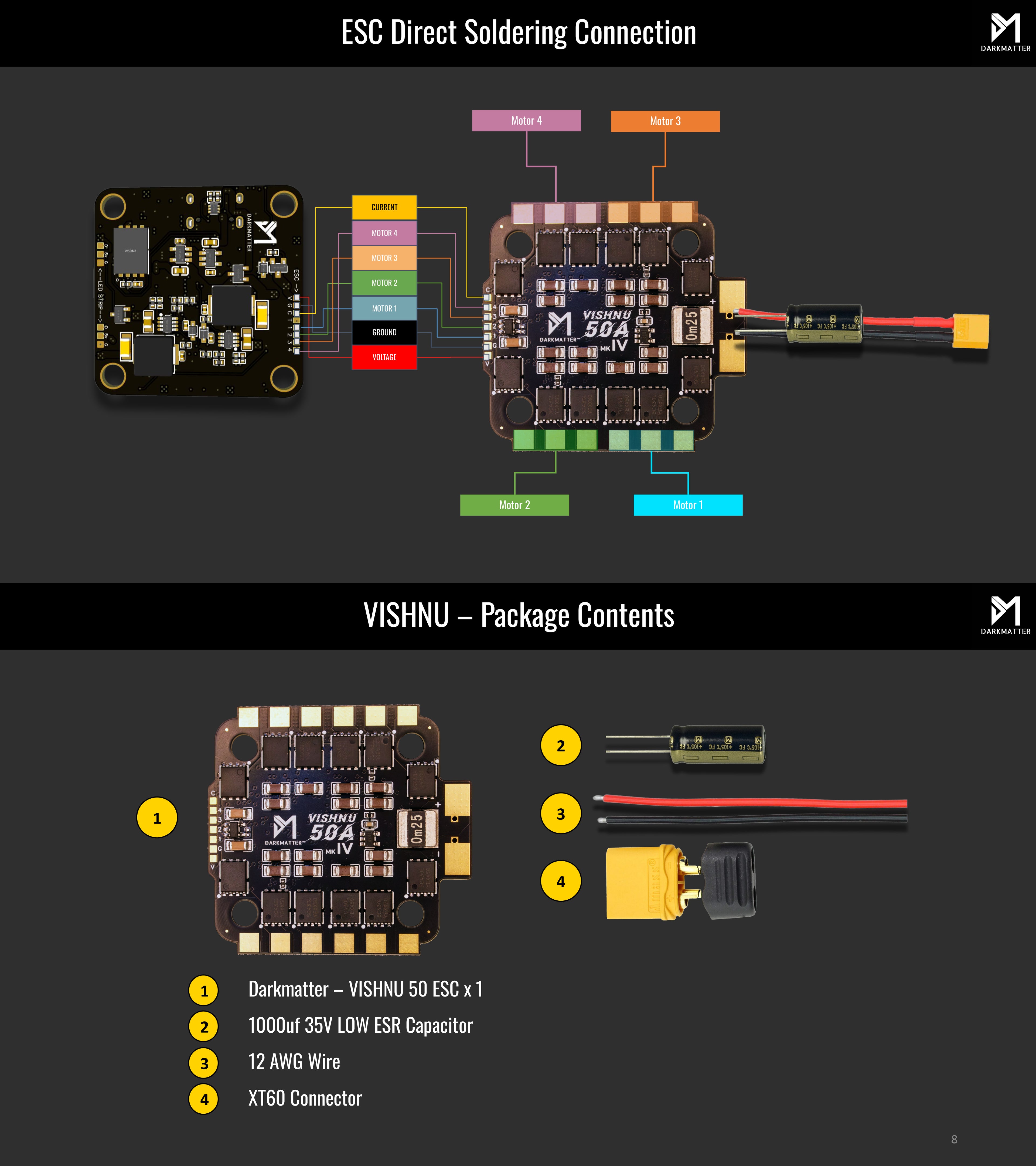

ESC Direct Soldering Connection
Motor 2 · Motor 4 · Motor 3 · Motor 1 · CURRENT · MOTOR 4 · MOTOR 3 · MOTOR 2 · MOTOR 1 · GROUND · VOLTAGE

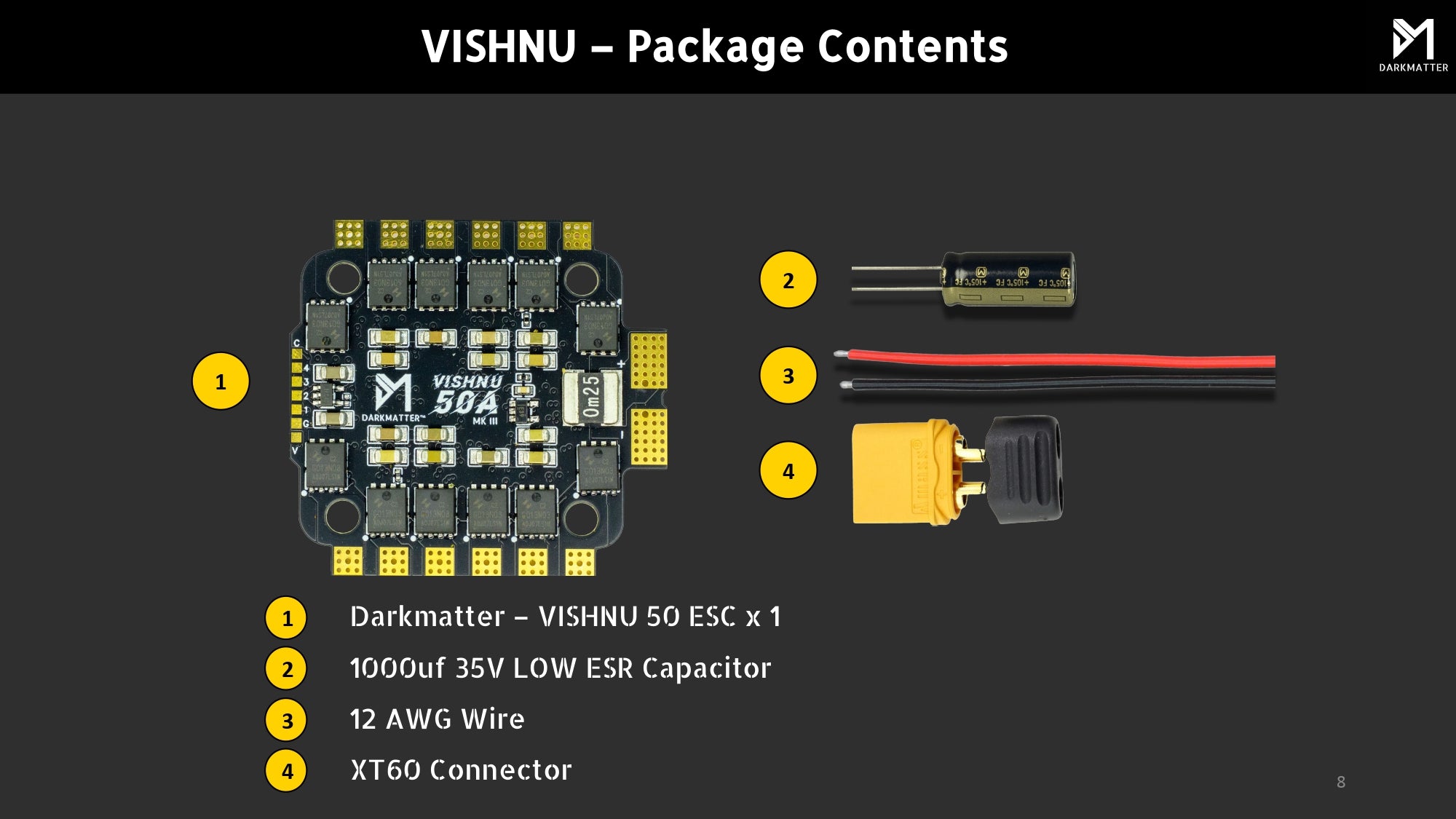

VISHNU – Package Contents
Darkmatter – VISHNU 50 ESC x 1 · 1000uf 35V LOW ESR Capacitor · 12 AWG Wire · XT60 Connector

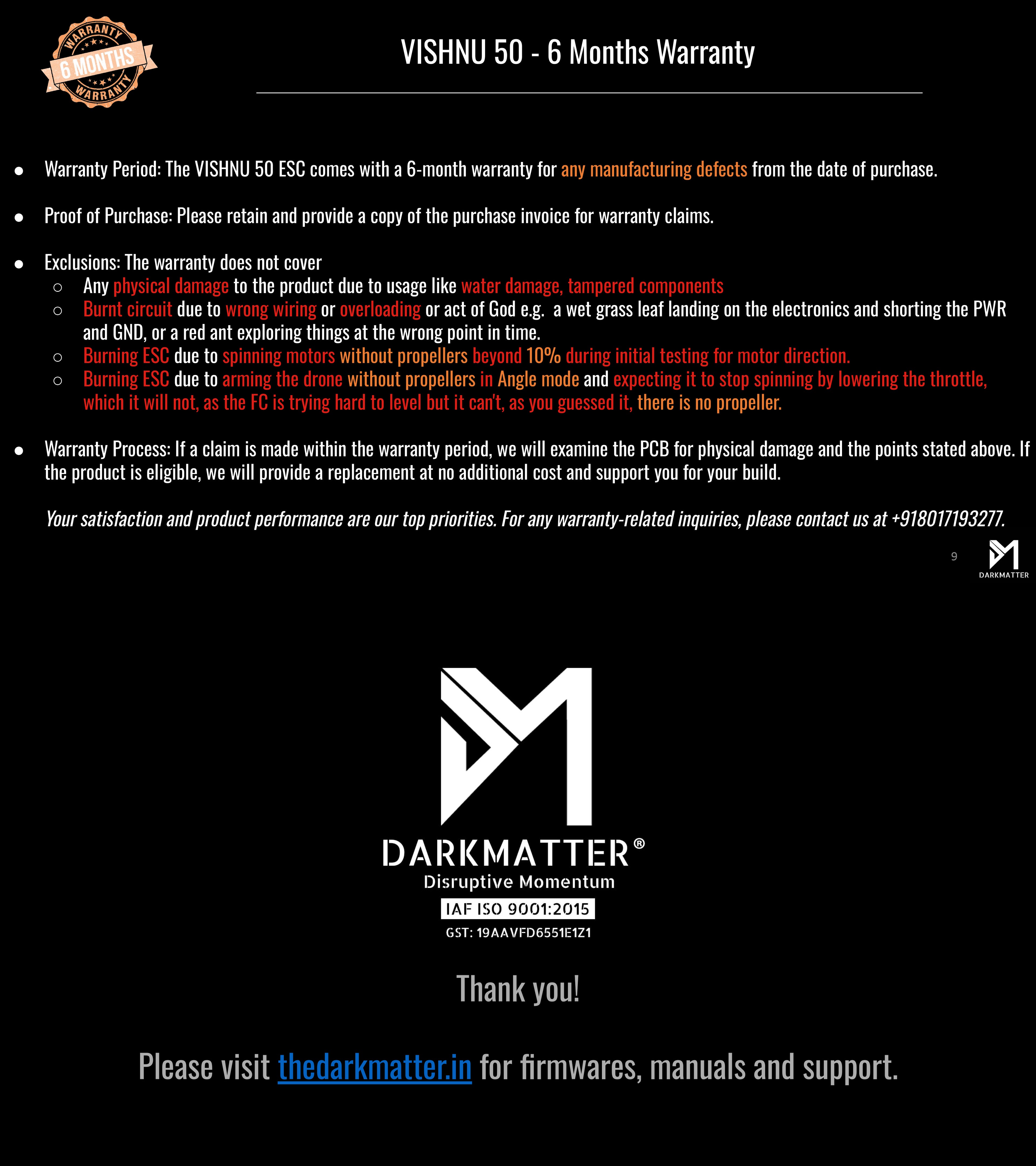

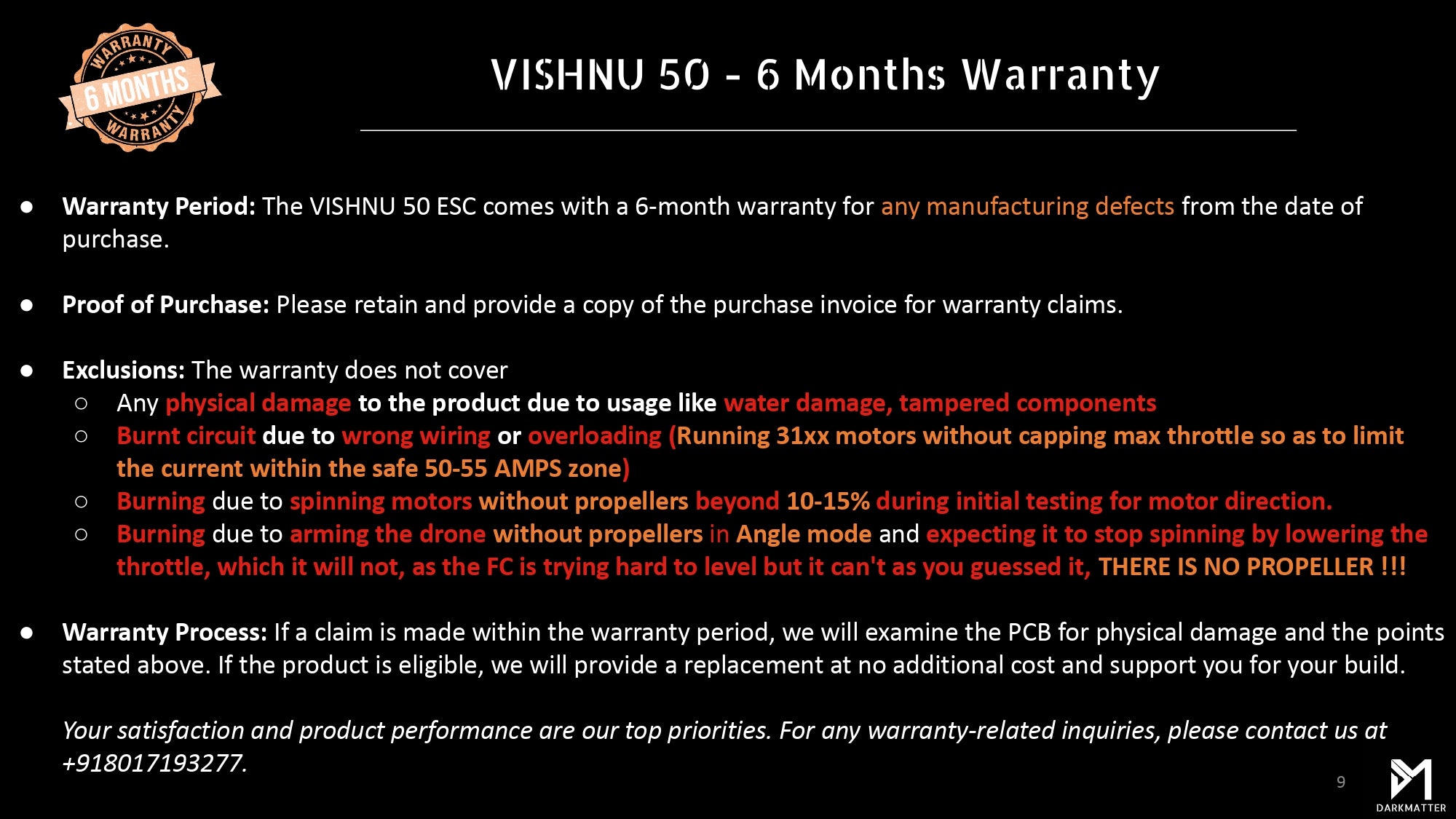

• Warranty Period: The VISHNU 50 ESC comes with a 6-month warranty for any manufacturing defects from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover • Any physical damage to the product due to usage like water damage, tampered components • Burnt circuit due to wrong wiring or overloading or act of God e.g. a wet grass leaf landing on the electronics and shorting the PWR and GND, or a red ant exploring things at the wrong point in time. • Burning ESC due to spinning motors without propellers beyond 10% during initial testing for motor direction. • Burning ESC due to arming the drone without propellers in Angle mode and expecting it to stop spinning by lowering the throttle, which it will not, as the FC is trying hard to level but it can't, as you guessed it, there is no propeller. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage and the points stated above. If the product is eligible, we will provide a replacement at no additional cost and support you for your build. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +918017193277.
• Warranty Period: The VISHNU 50 ESC comes with a 6-month warranty for any manufacturing defects from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover • Any physical damage to the product due to usage like water damage, tampered components • Burnt circuit due to wrong wiring or overloading or act of God e.g. a wet grass leaf landing on the electronics and shorting the PWR and GND, or a red ant exploring things at the wrong point in time. • Burning ESC due to spinning motors without propellers beyond 10% during initial testing for motor direction. • Burning ESC due to arming the drone without propellers in Angle mode and expecting it to stop spinning by lowering the throttle, which it will not, as the FC is trying hard to level but it can't, as you guessed it, there is no propeller. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage and the points stated above. If the product is eligible, we will provide a replacement at no additional cost and support you for your build. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +918017193277. · VISHNU 50 - 6 Months Warranty
