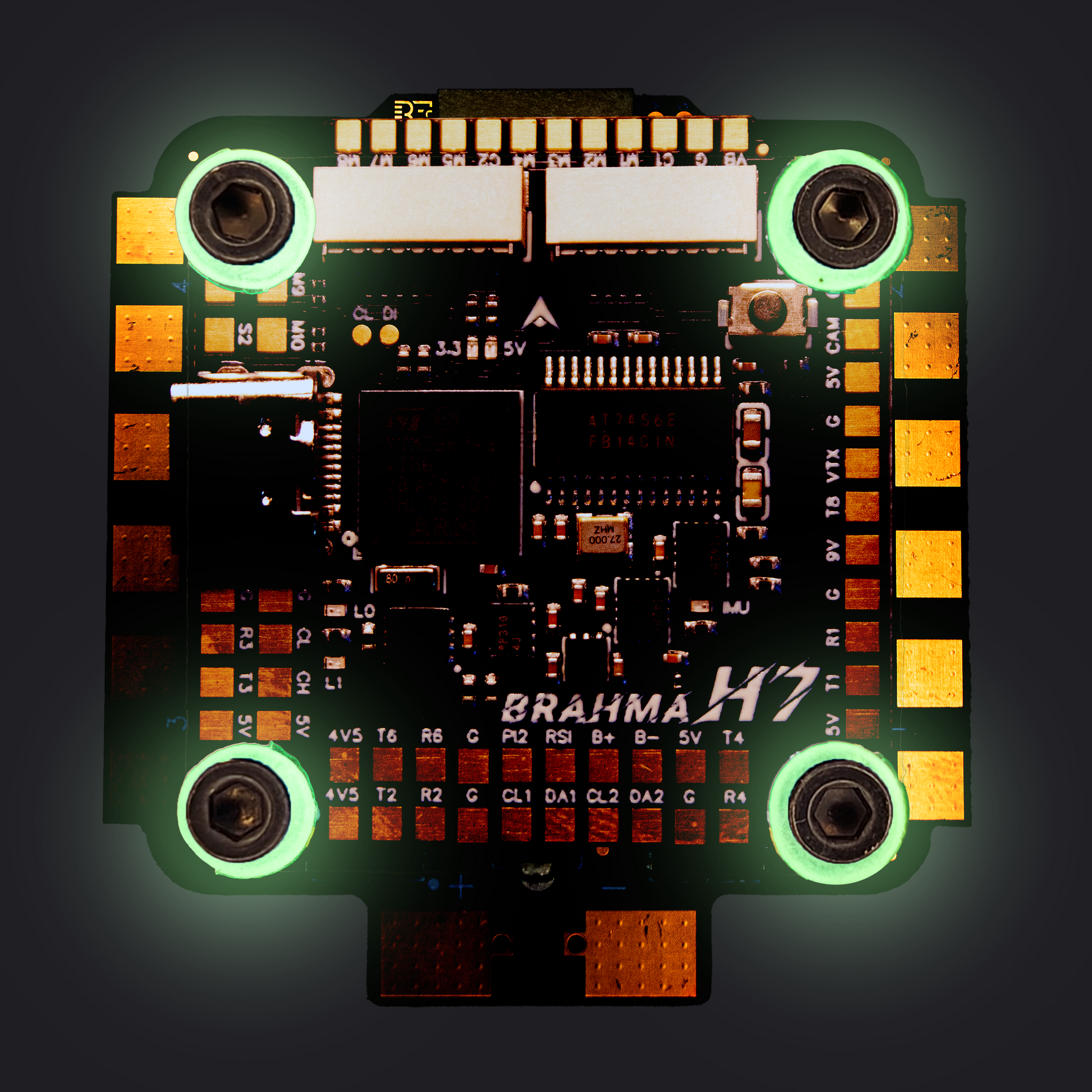

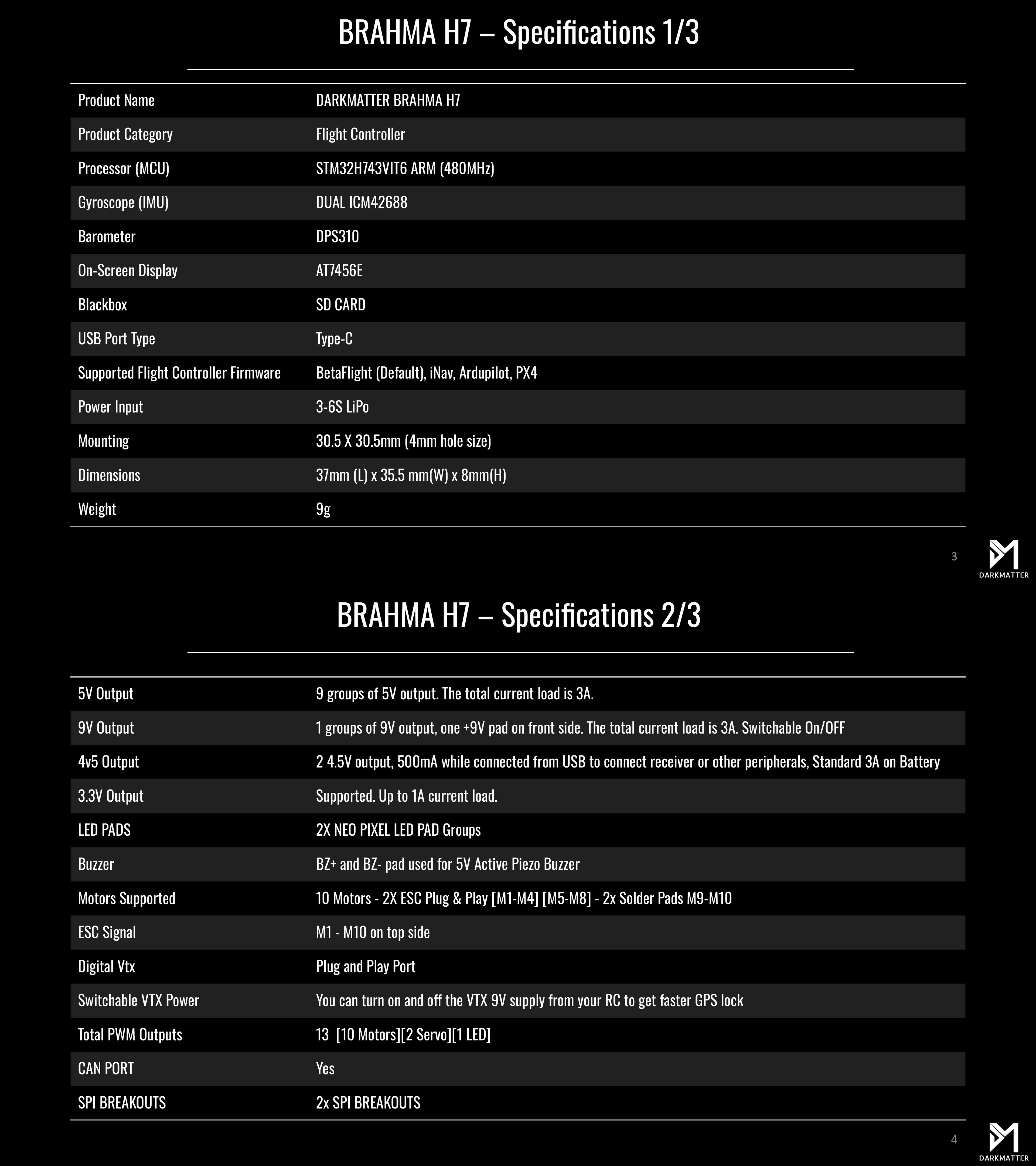

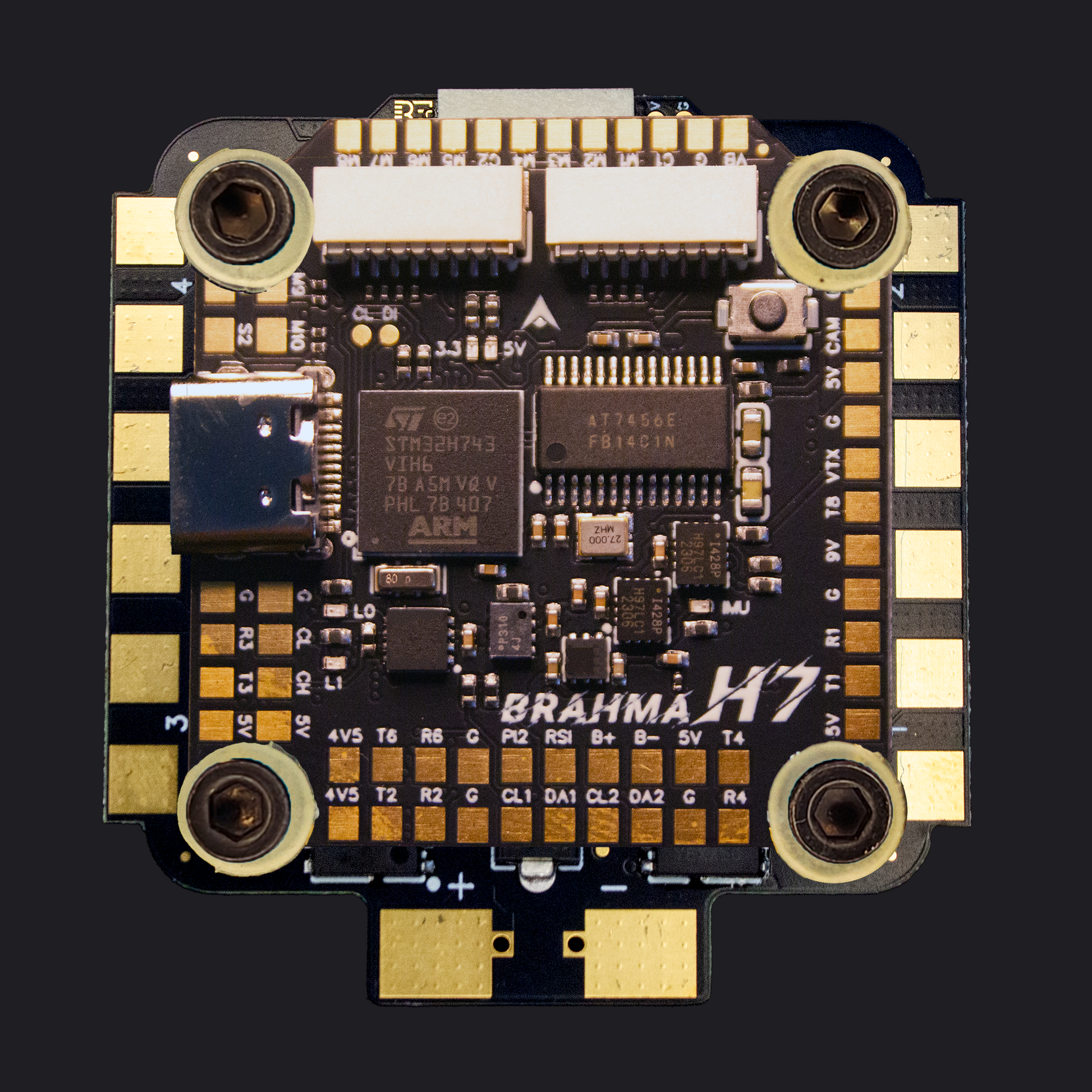

BRAHMA H7 (FC) Highlights:

Ultra-High-Performance Processor

Powered by the STM32H743 (480MHz) MCU, the BRAHMA H7 delivers lightning-fast flight control performance, ideal for advanced autonomous missions and high-speed manual flying.

Next-Gen Sensing System

Equipped with Dual ICM42688 IMUs and a DPS310 Barometer for exceptionally accurate attitude sensing and altitude hold.

Massive Connectivity Options

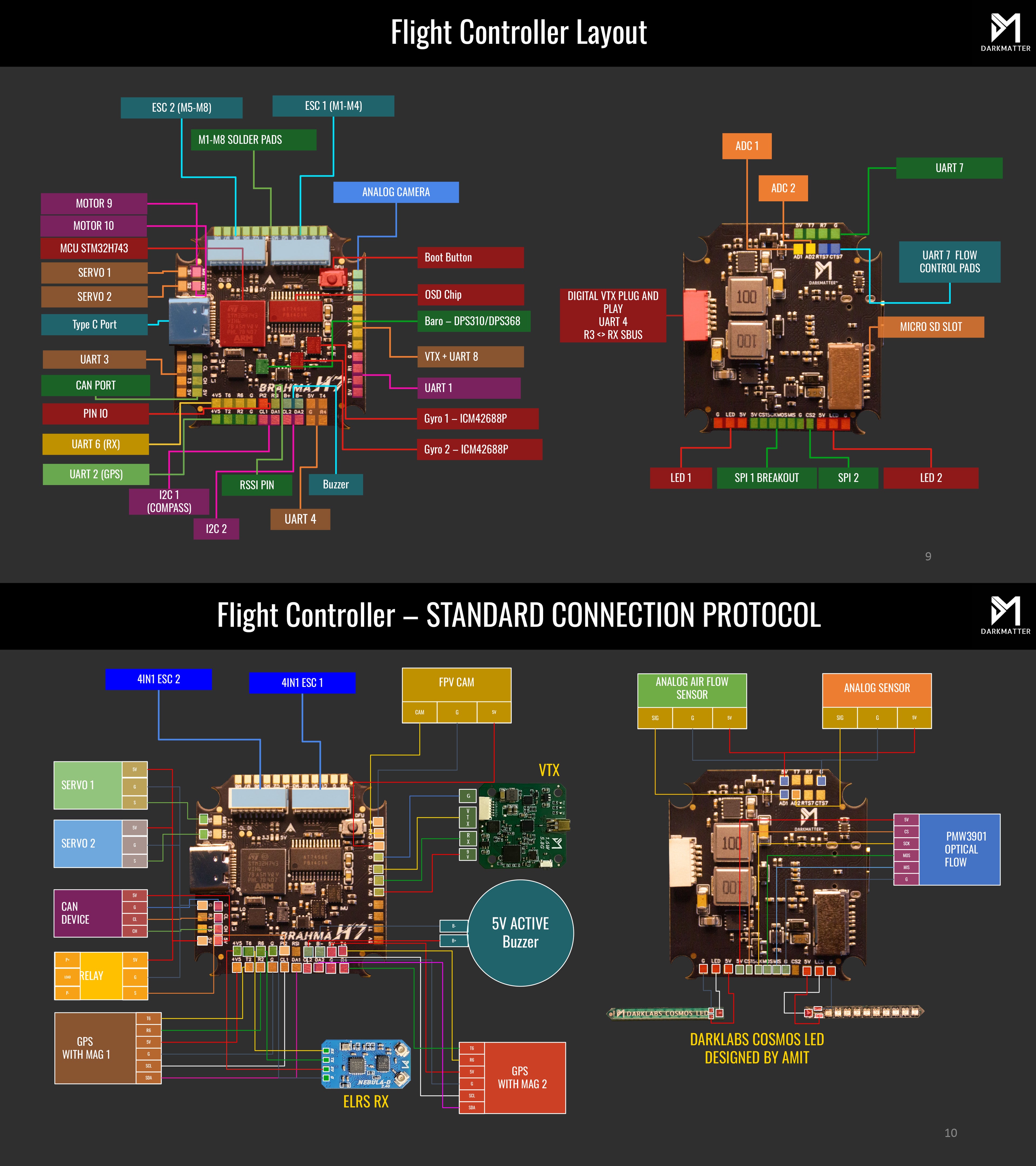

Features 7 UART ports, 2 I2C ports, 2 SPI breakouts, CAN port, and a Type-C USB port, enabling seamless integration of GPS, telemetry radios, digital VTX systems, compasses, airspeed sensors, and more.

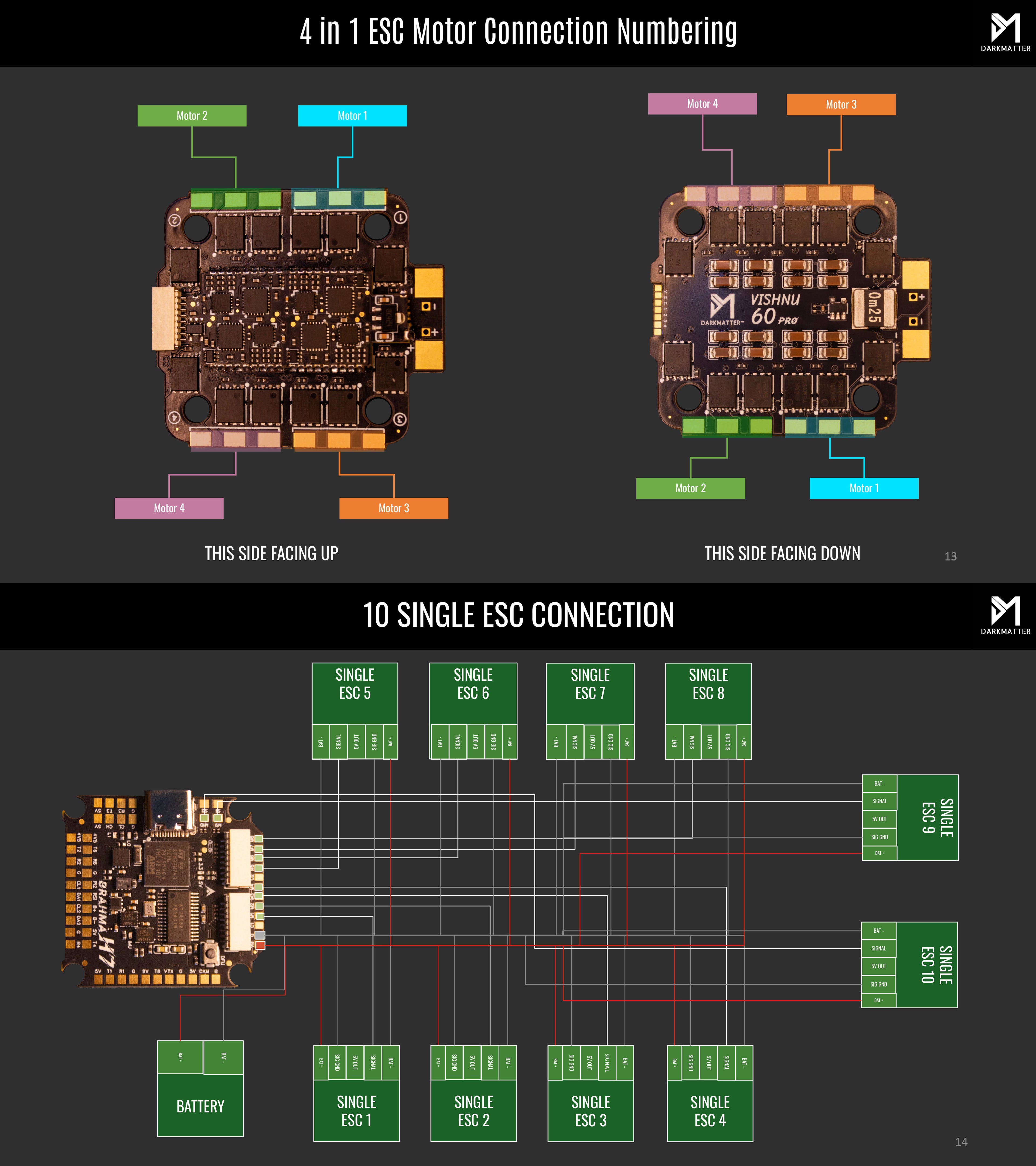

Supports Up to 10 Motors

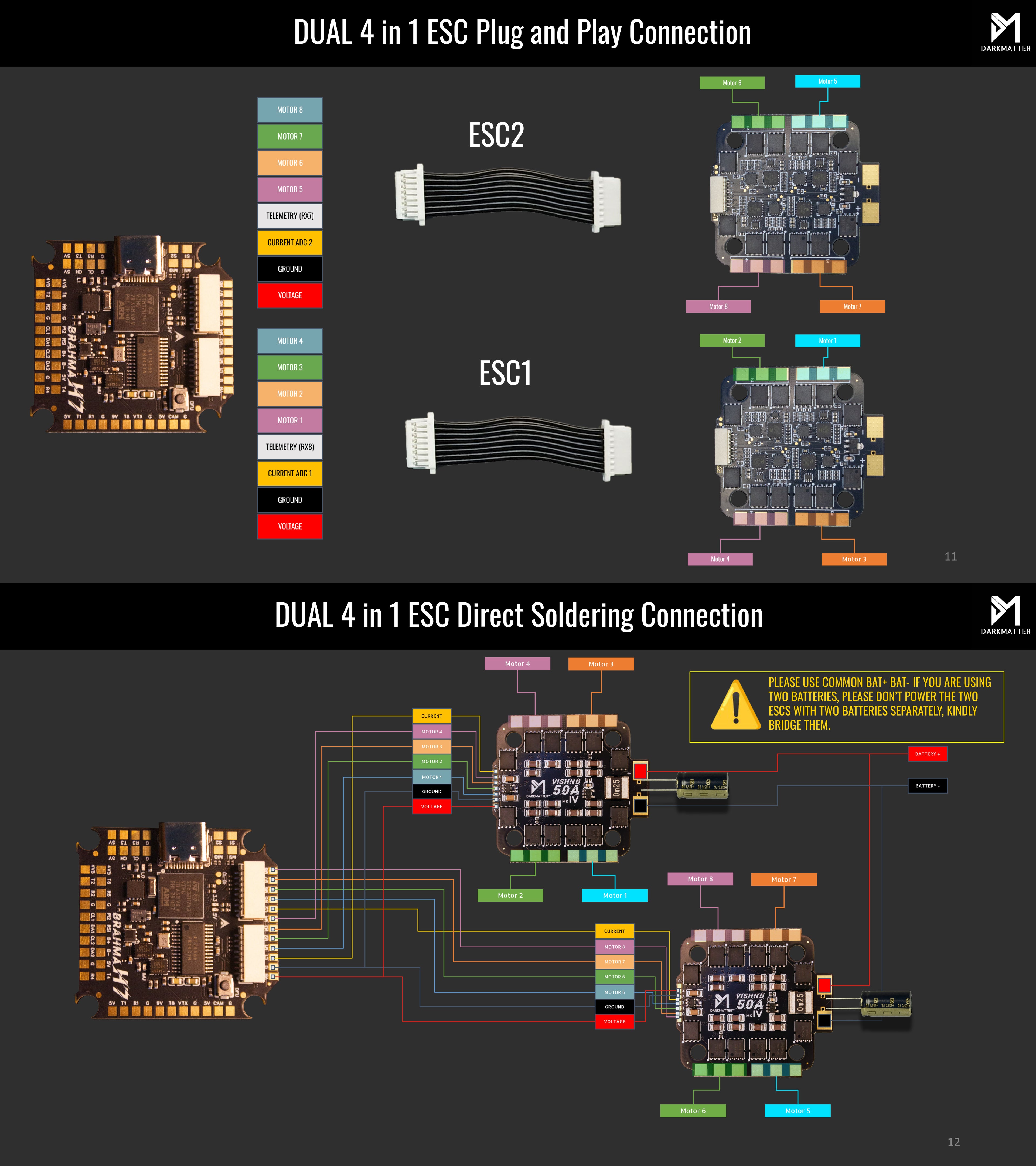

Includes dual 4-in-1 ESC plug-and-play interfaces (M1–M8) plus solder pads for M9–M10, perfect for X8, Y6, coaxial, and custom heavy-lift builds.

Multiple Regulated Power Outputs

• 5V (3A total across 9 groups)
• 9V (3A) with switchable ON/OFF
• 4.5V (for USB power)
• 3.3V (1A)
  Designed to safely power GPS, VTX, LEDs, receivers, and accessories.

Enhanced Expandability & Control

• Digital VTX Plug-and-Play Port
• 2× Neopixel LED outputs
• Dedicated buzzer pads
• Pin IO for relay control
• 13 total PWM outputs

Versatile Firmware Support

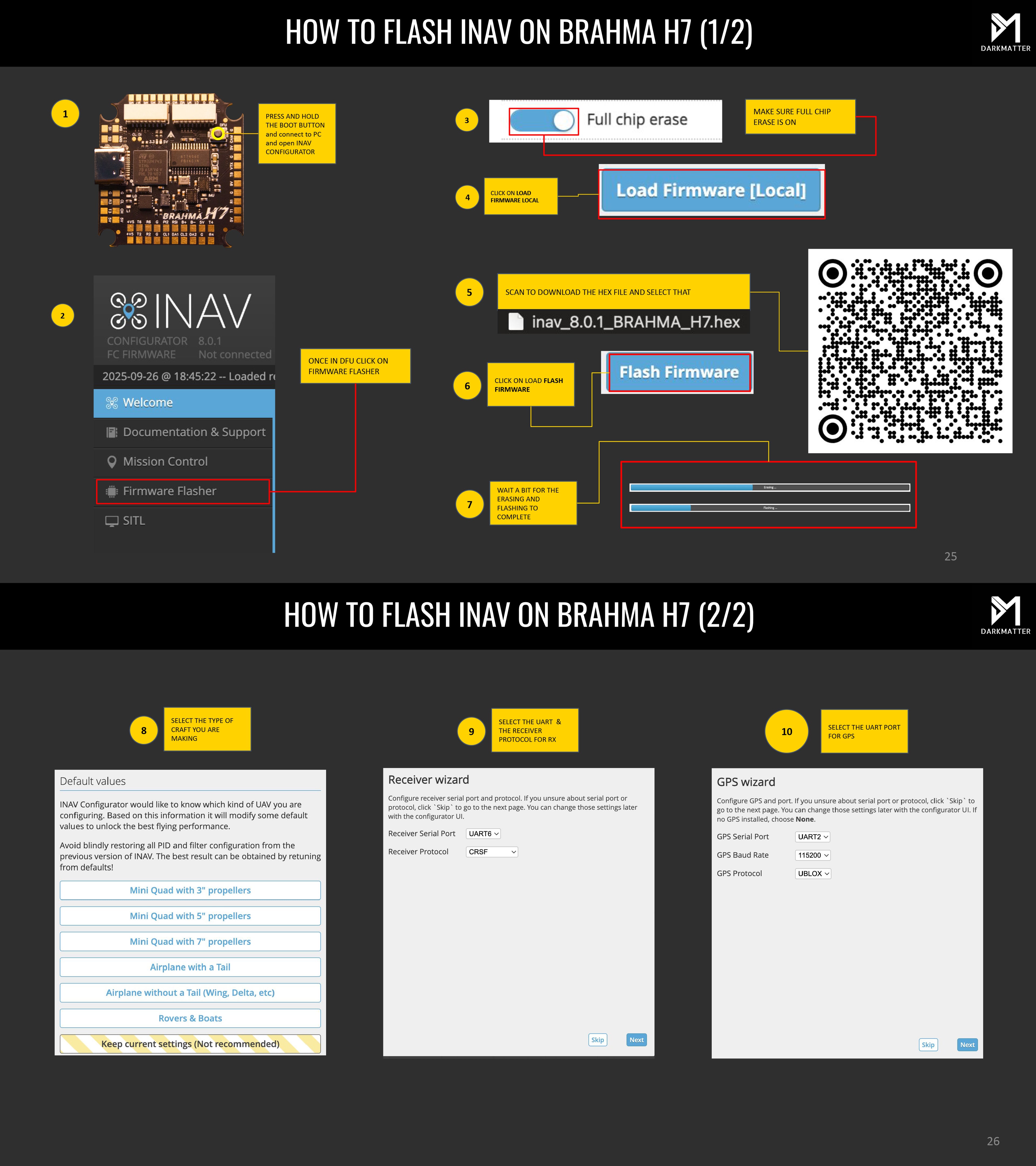

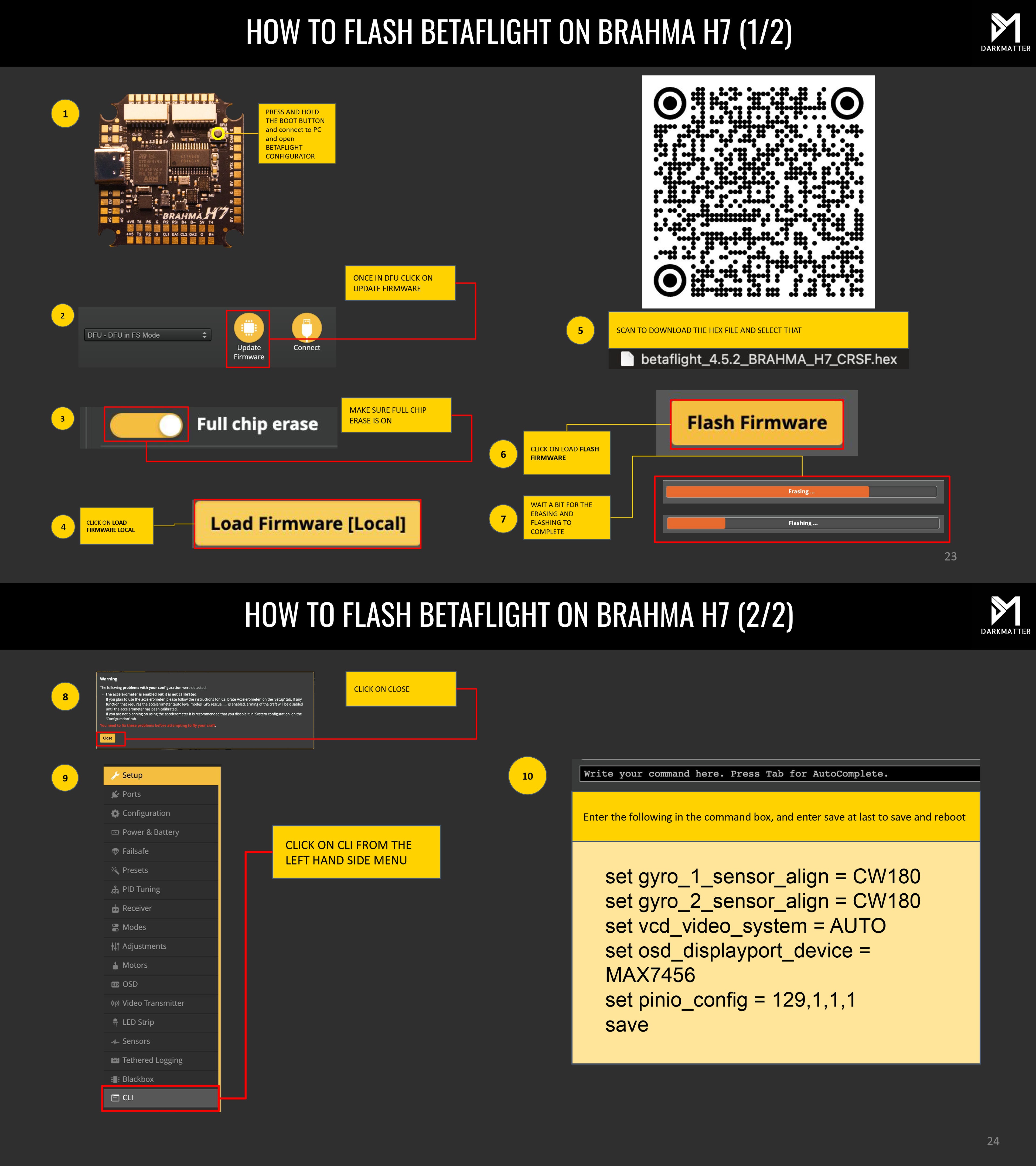

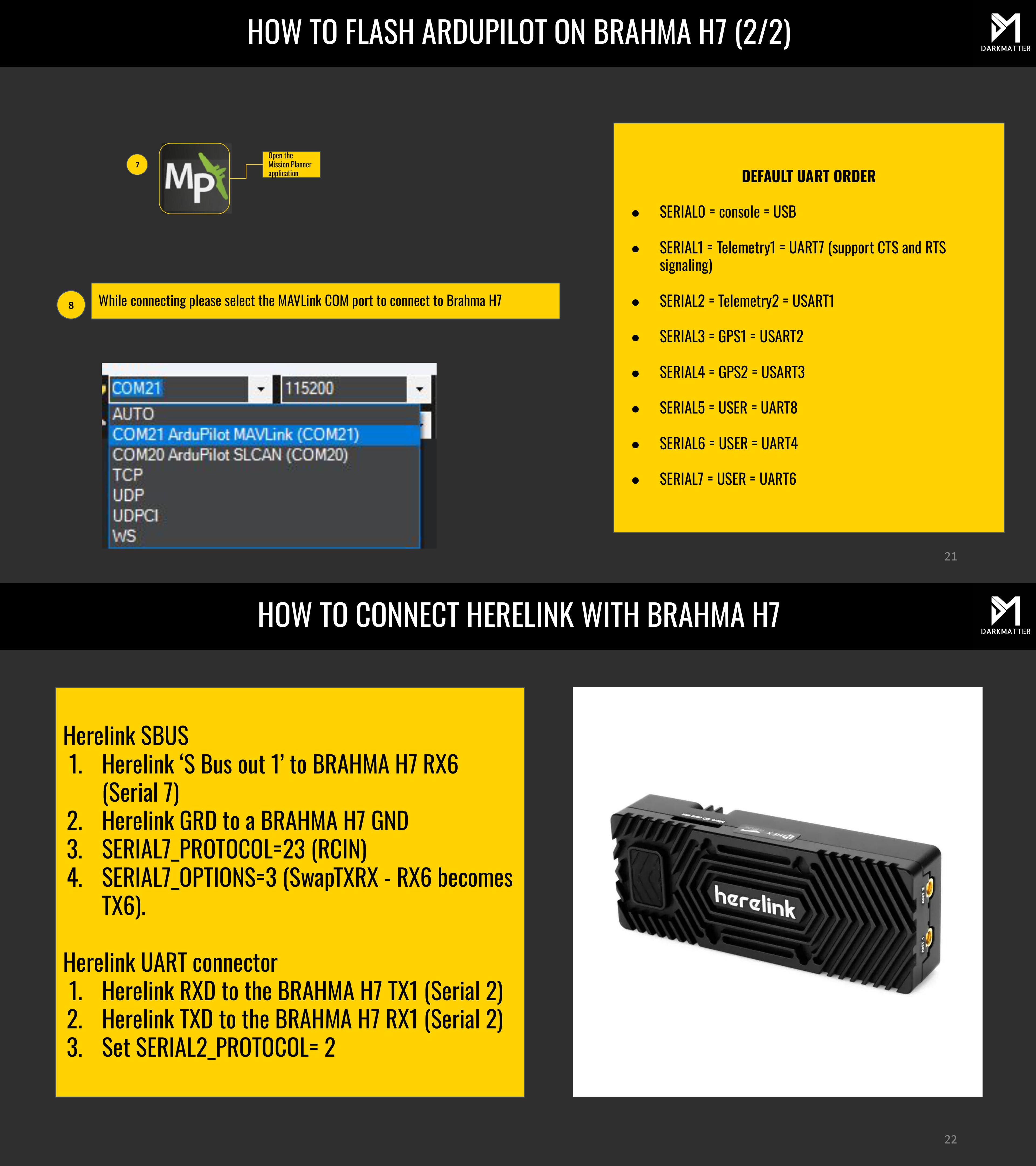

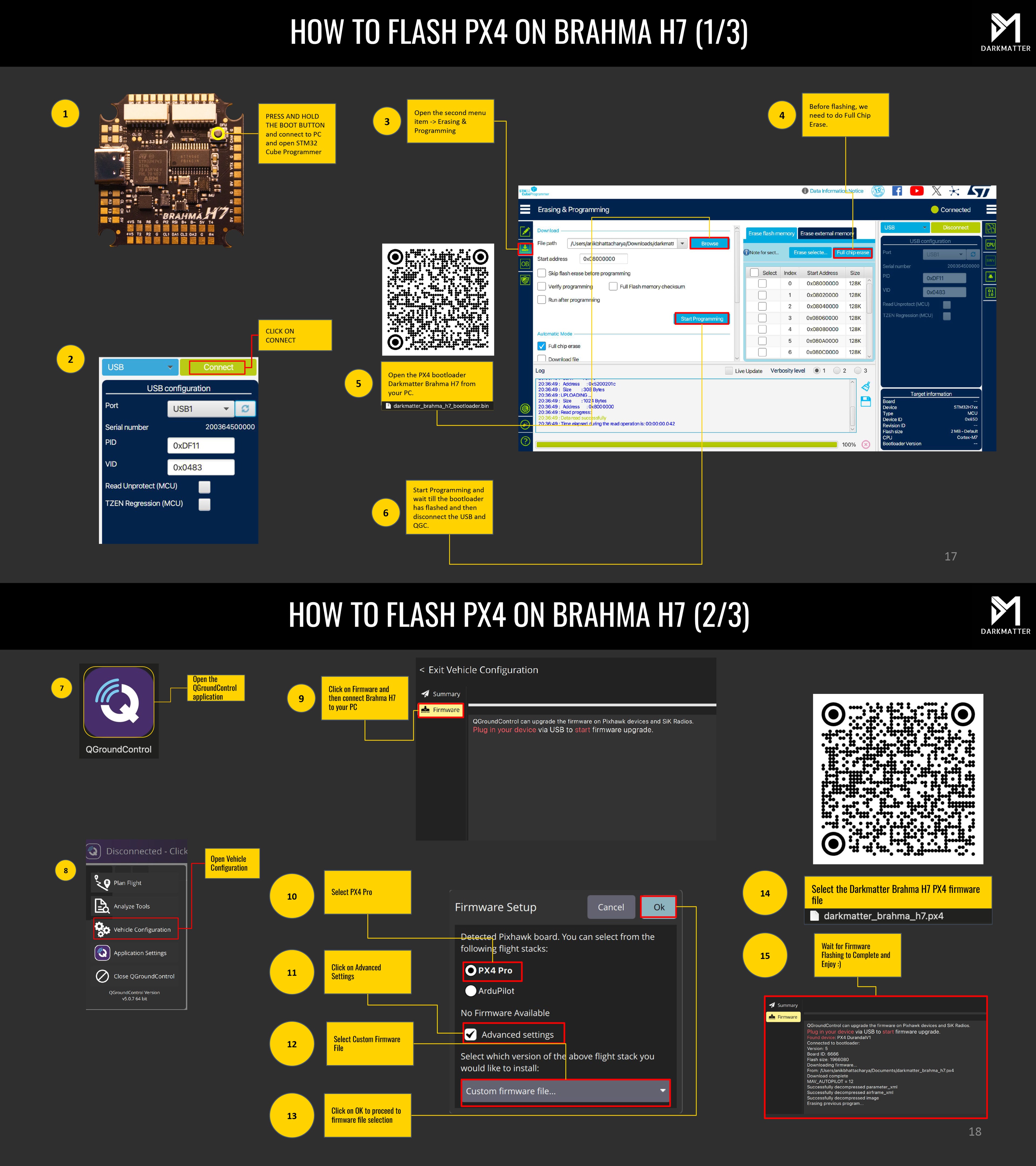

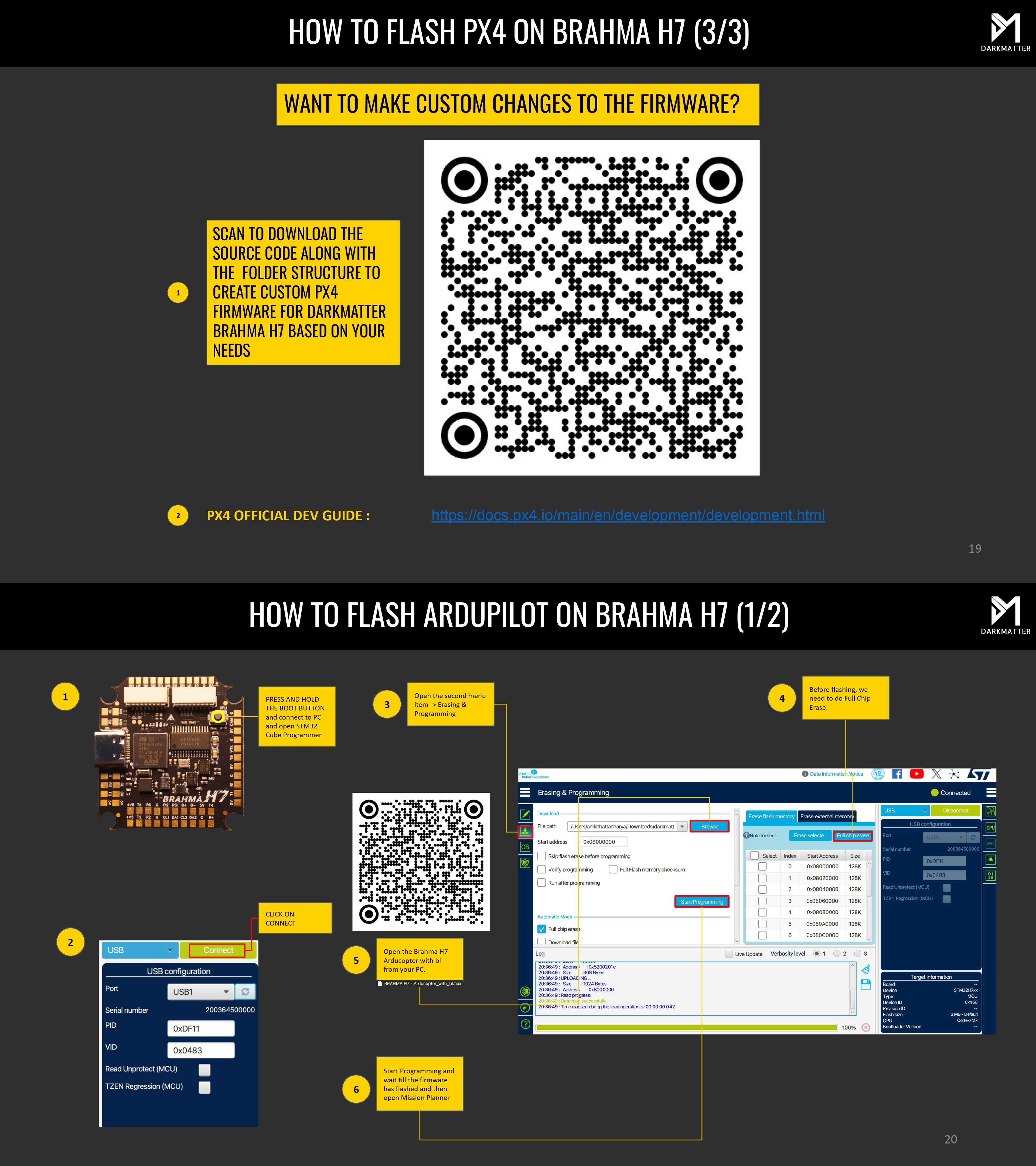

Compatible with Betaflight, iNav, Ardupilot, and PX4 for both FPV and autonomous drone applications.

Built for Reliability

Includes Reverse Polarity, Over-Current, and Over-Voltage protection, ensuring long-term durability and safety.

Mounting

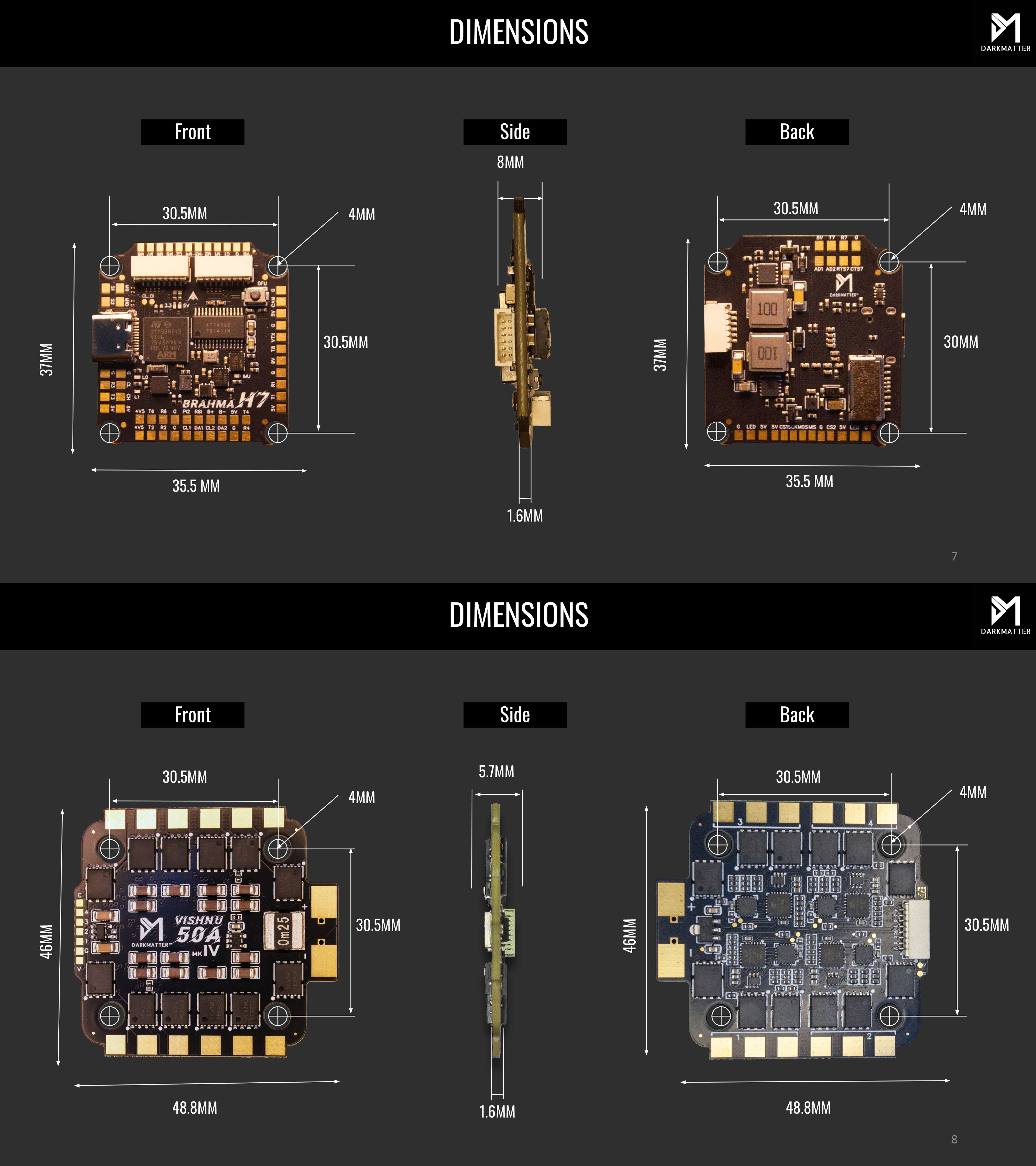

Standard 30.5 × 30.5mm (M4) mounting — fits most frames and stacks.

Proudly Made in India

Engineered and manufactured with precision, showcasing top-tier Indian drone technology.

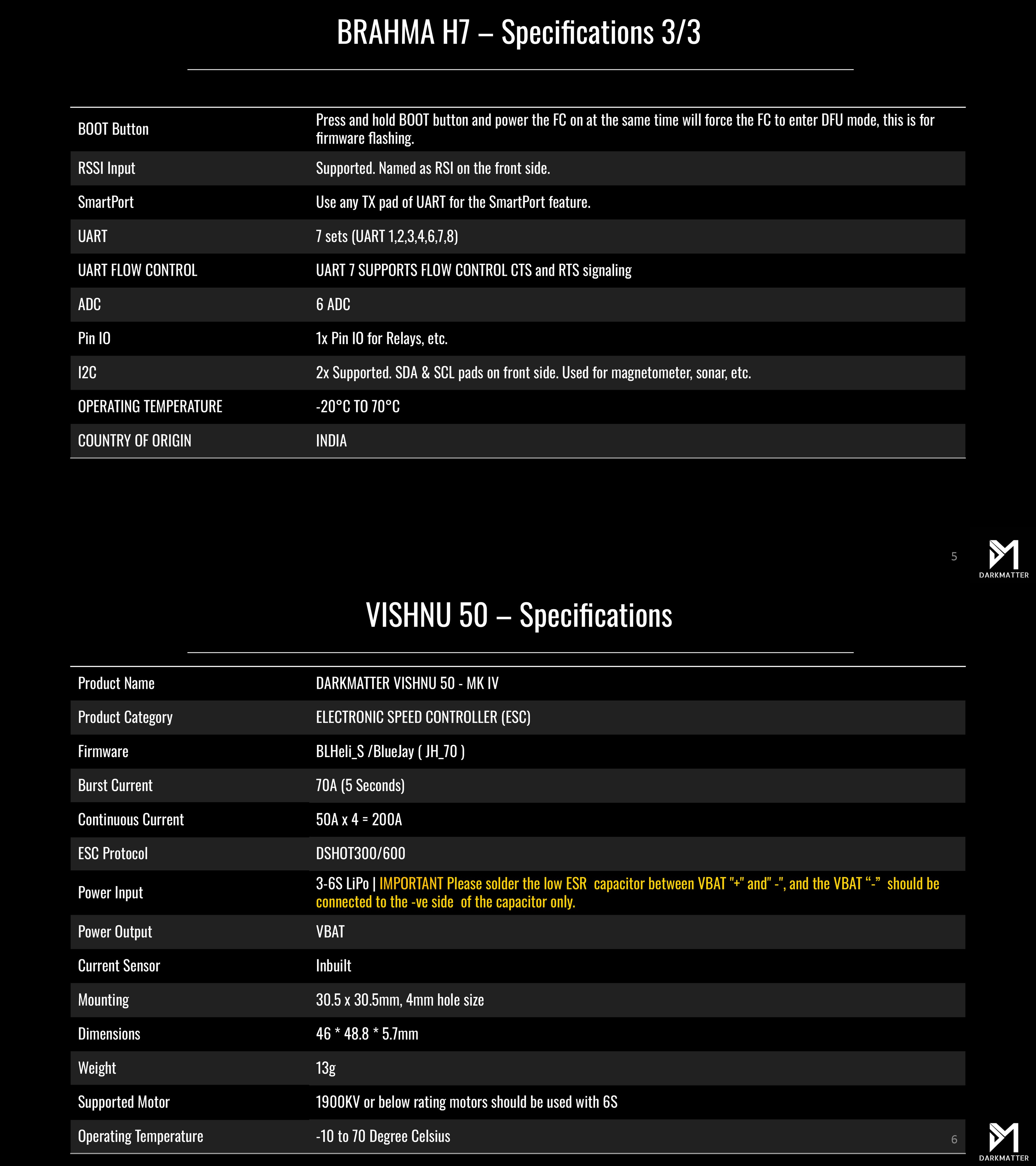

VISHNU 50 (ESC) Highlights:

High Current Performance

Supports 50A continuous and 70A burst, ideal for 5"–9" high-power builds.

BLHeli_S / BlueJay Firmware

Smooth, efficient, and tune-friendly ESC performance with JH_70 variant firmware.

3–6S LiPo Support

Ready for both freestyle 6S rigs and heavy-lift 3–6S platforms.

DShot300/600 Digital Protocol

Reliable, low-latency motor control for fast response and stable flight.

Inbuilt Current Sensor

Accurate real-time current monitoring for better tuning and safety.

Universal Mounting

Standard 30.5×30.5mm (M4 holes)—stack-ready for any modern frame.

Made in India Quality

Designed and built locally, ensuring high durability and consistent performance.

The Perfect Combination for Professionals & Enthusiasts

The DARKMATTER® STACK H750 is engineered for creators, racers, and commercial drone developers who demand maximum control, expandability, and flight precision.
With the powerhouse BRAHMA H7 flight controller and the reliable VISHNU 50 ESC, this stack provides unmatched stability and performance for FPV, cinematics, mapping, autonomous platforms, and heavy-lift robotics.

Please scroll down for more details.
