Darkmatter®
STACK 450
STACK 450
Designed & Manufactured In India 🇮🇳
Couldn't load pickup availability
-

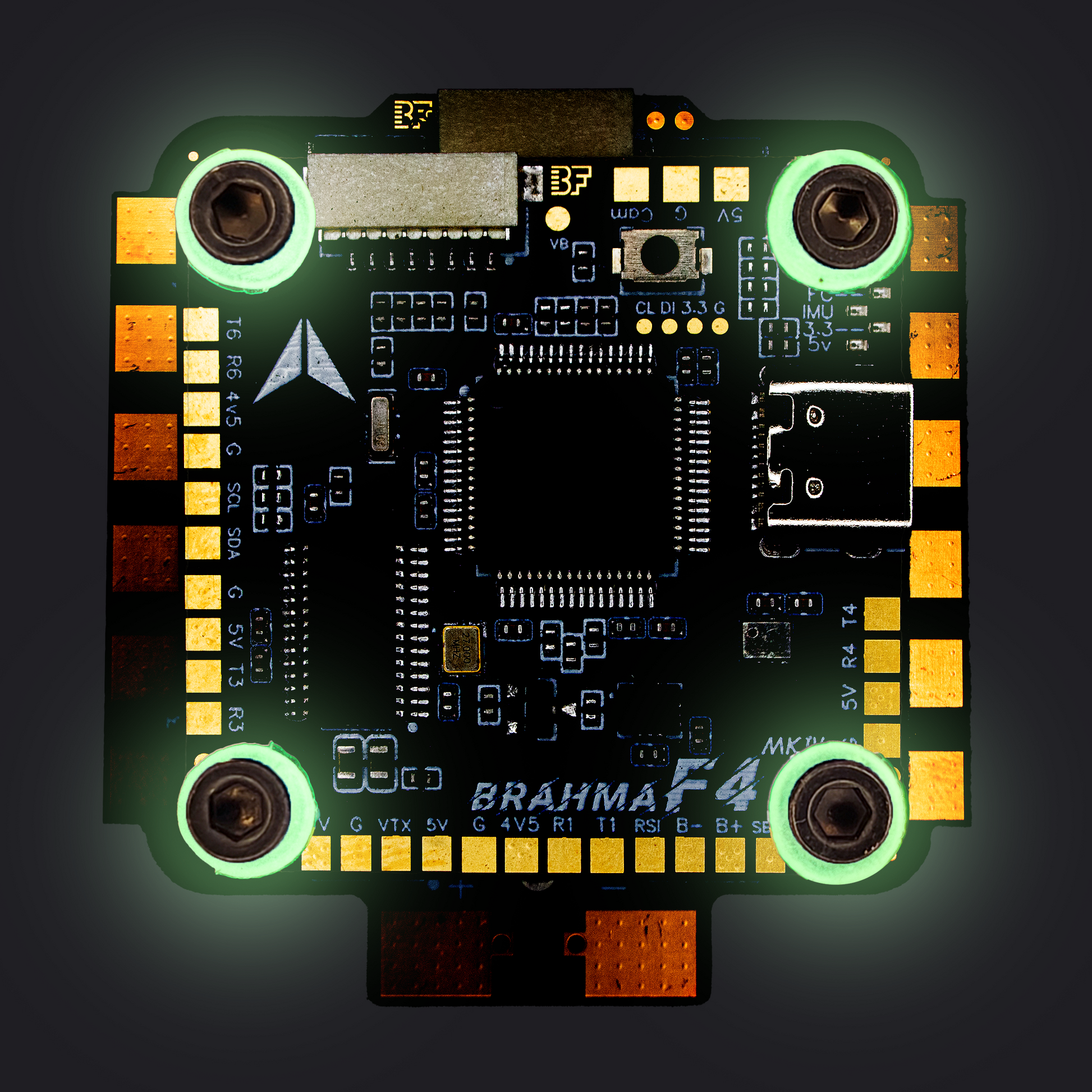

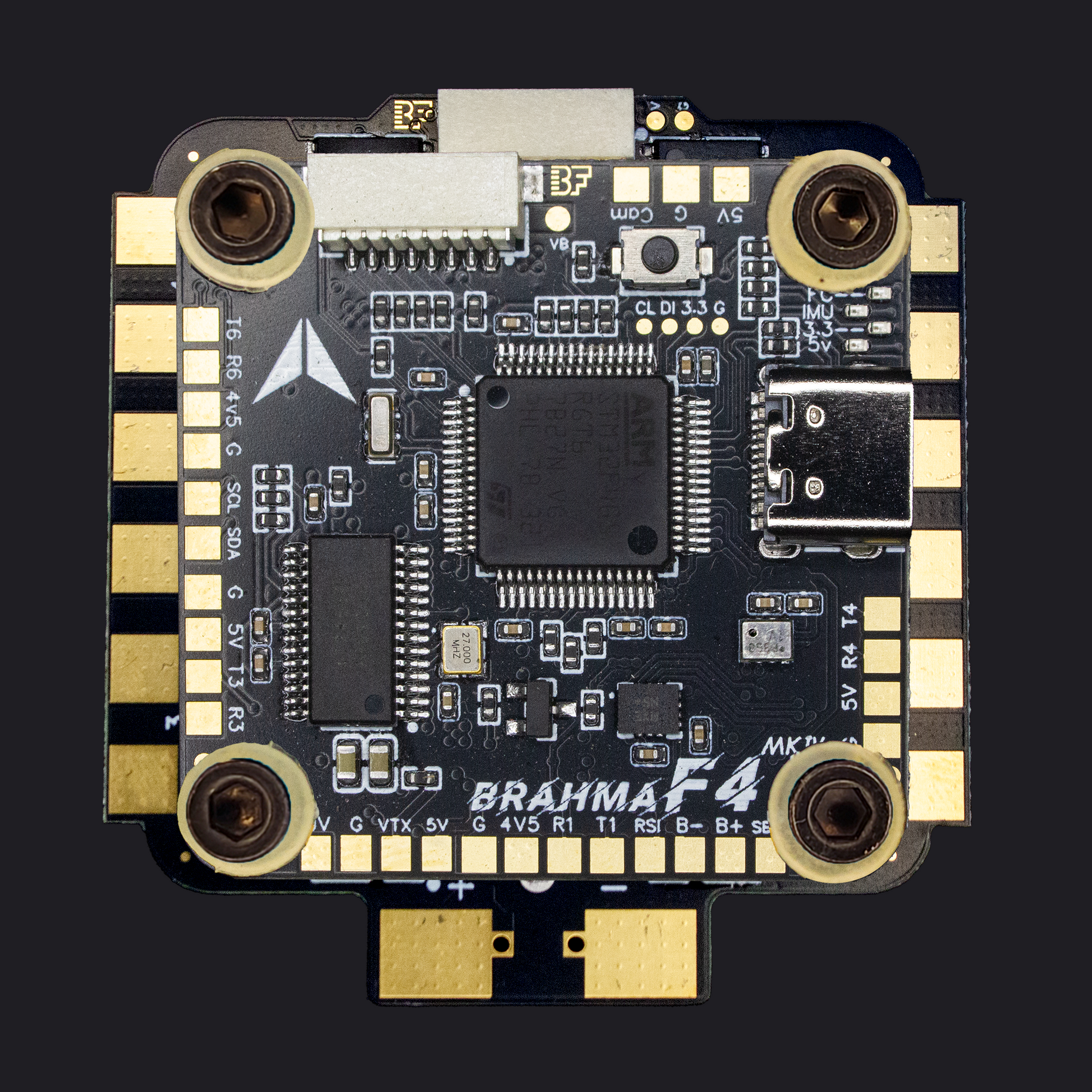

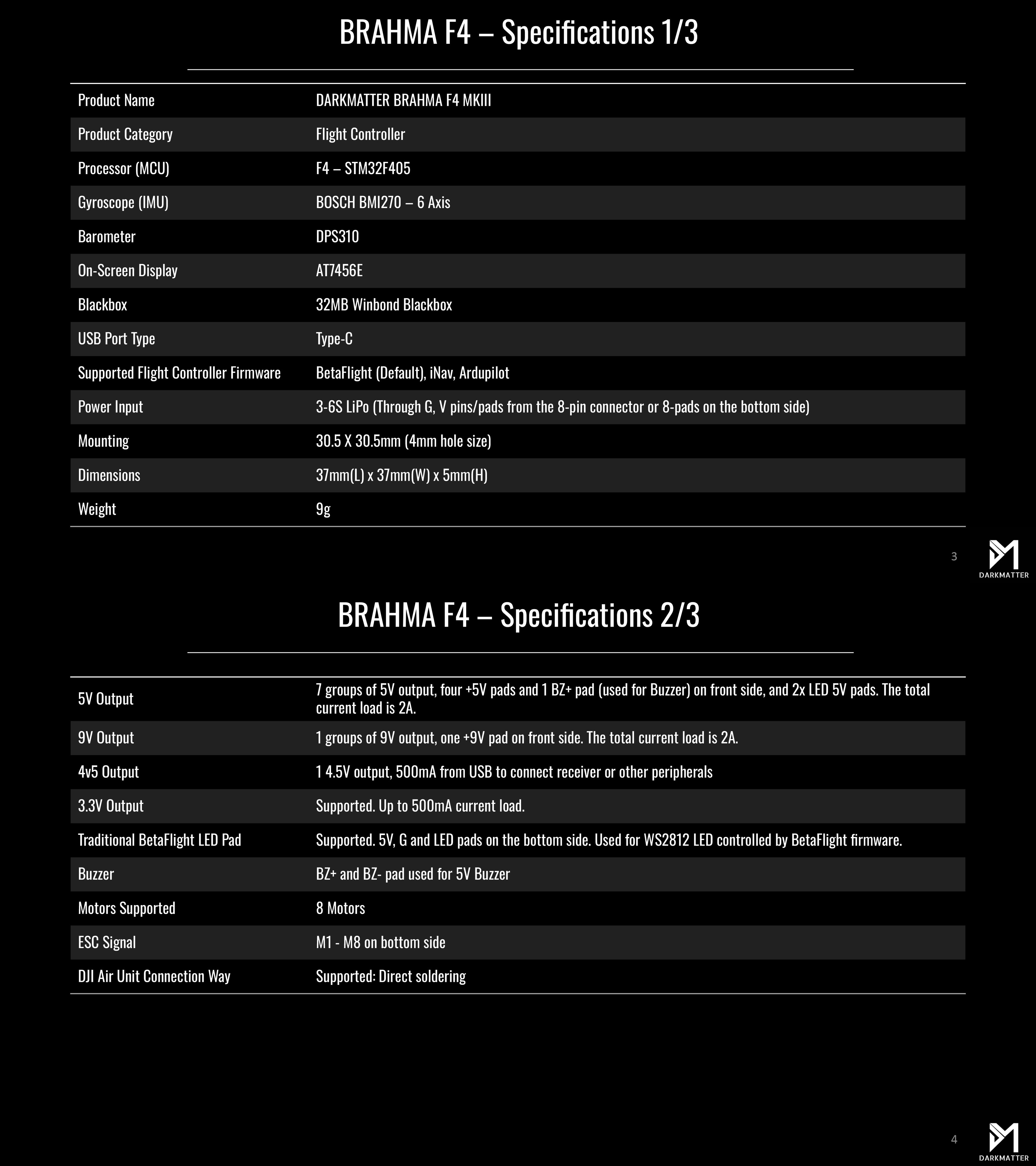

High-Performance Processor: Powered by STM32F405 for seamless operations.
-
Advanced Sensing Technology: Features BMI270 GYRO(IMU) sensor and DPS310 Barometer for precision flight control.
-

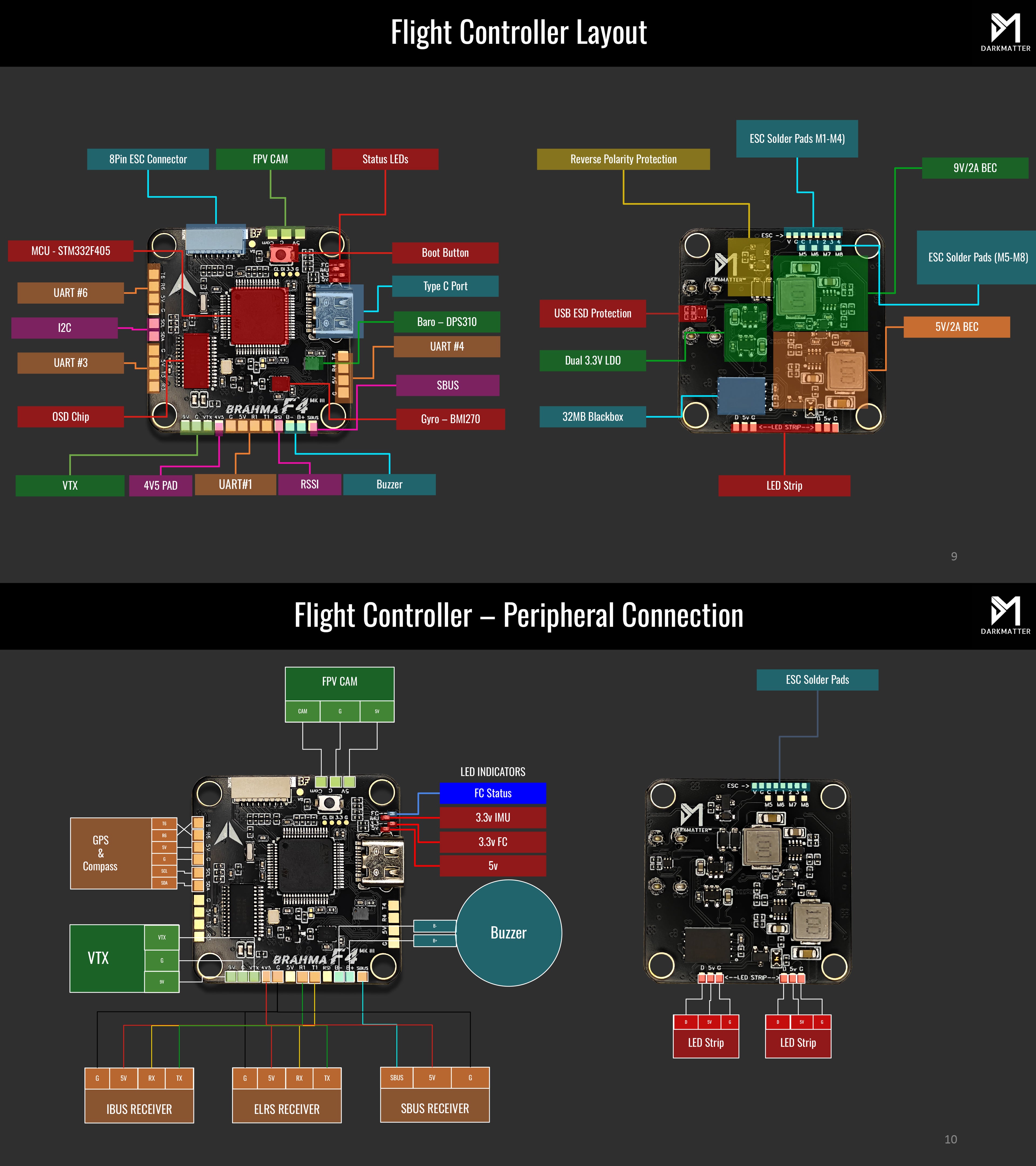

Enhanced Connectivity: Equipped with 4 UART and 1 i2c ports and universal Type-C USB port.
-

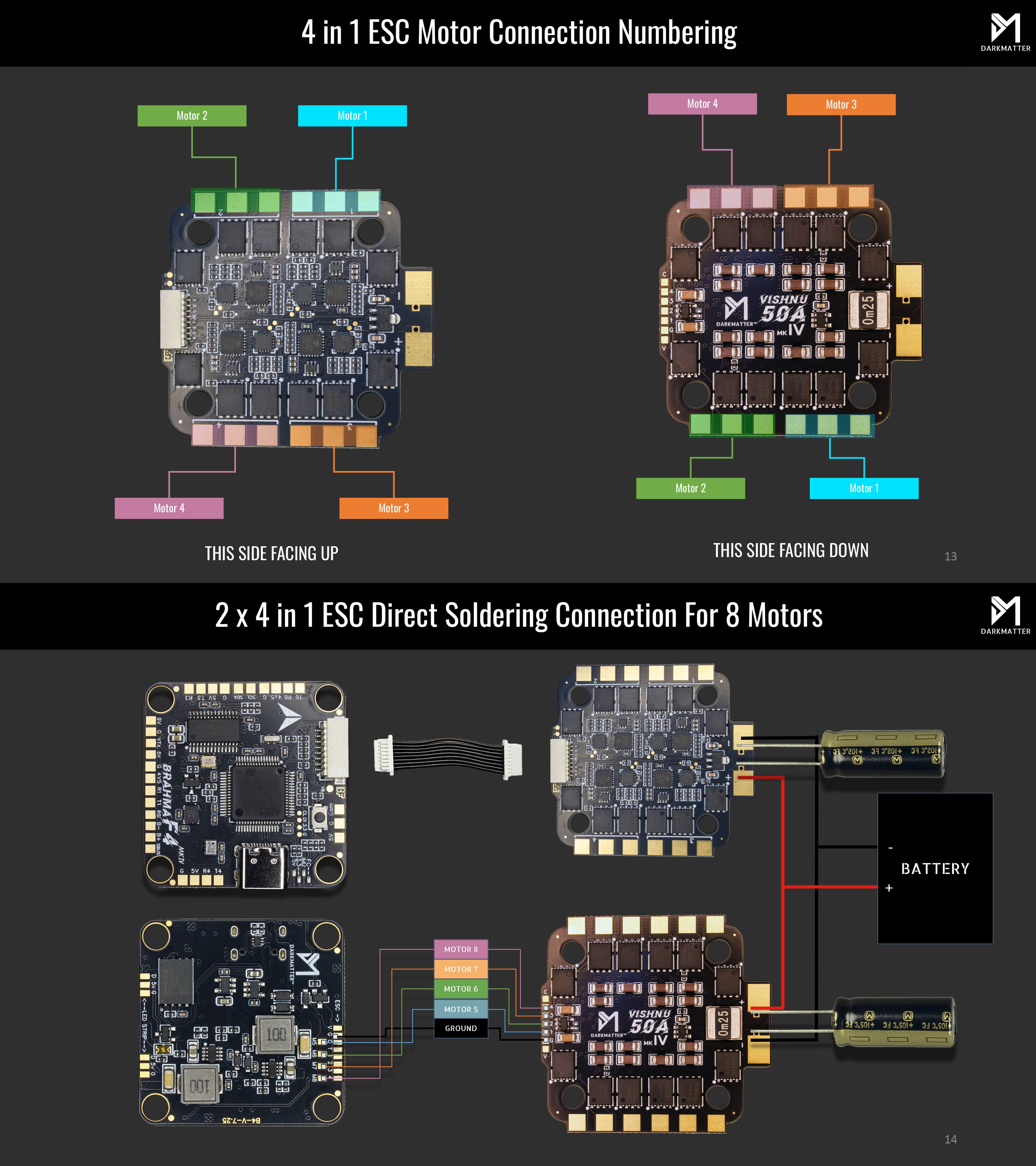

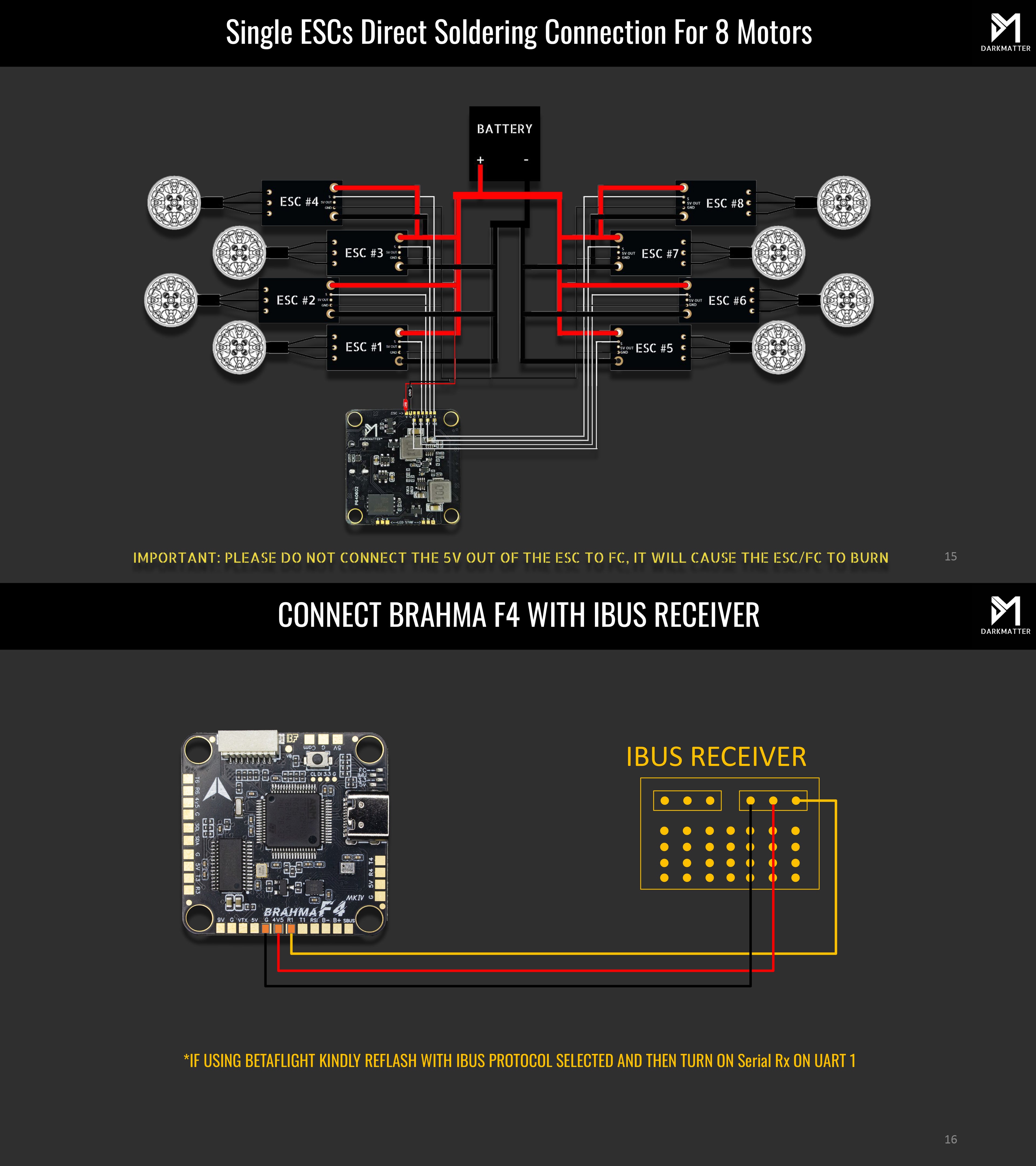

Motors supported: 8 Motors.
-
Dual BEC : 5V (2A) and 9V (2A).
- Circuit Protection : Reverse Polarity, Over-current and Over-voltage .
-

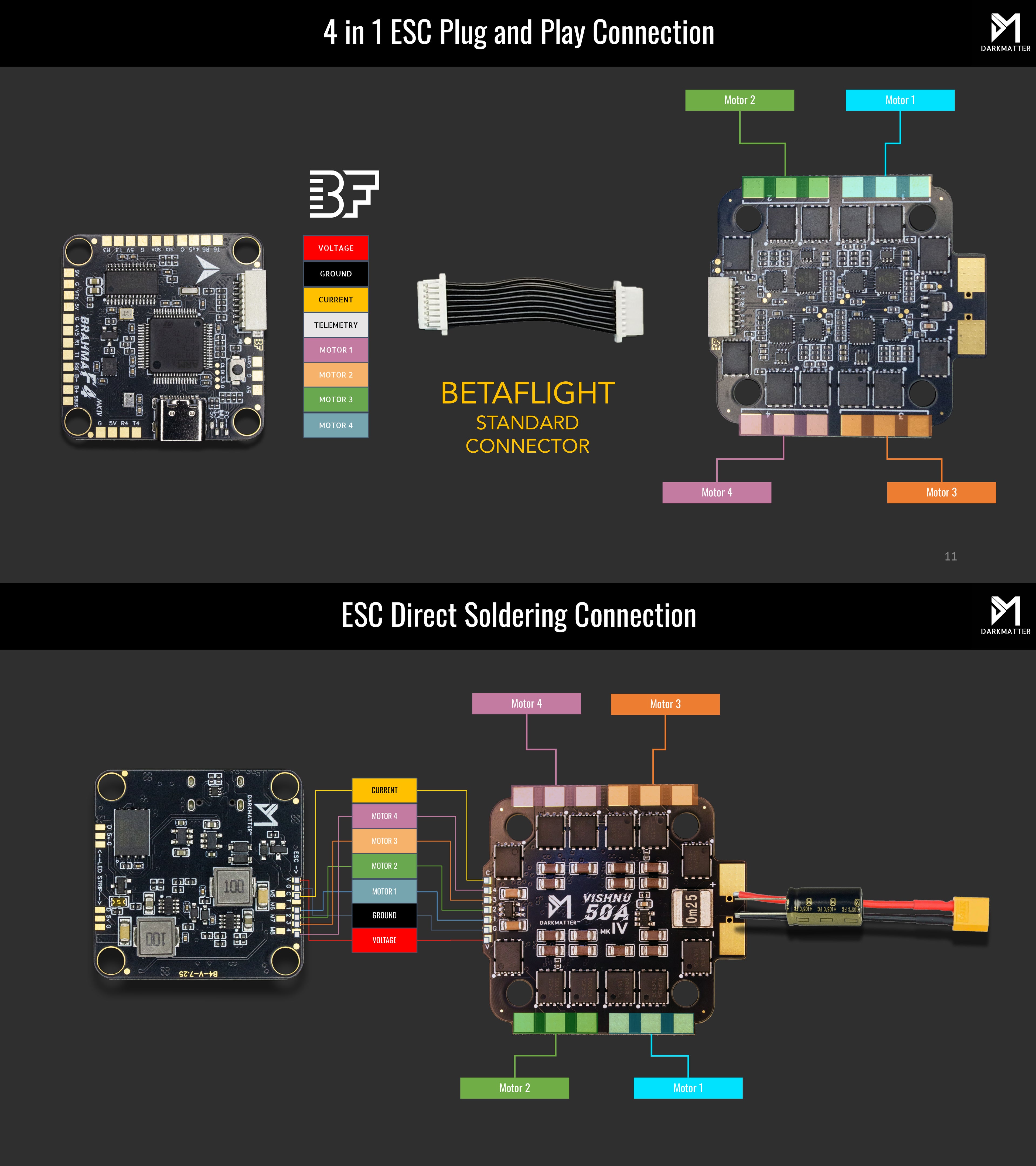

Customizable for Your Needs: Extra solder pads for direct ESC soldering.
-
OSD Supported :Analog + Digital (Direct Solder).
-

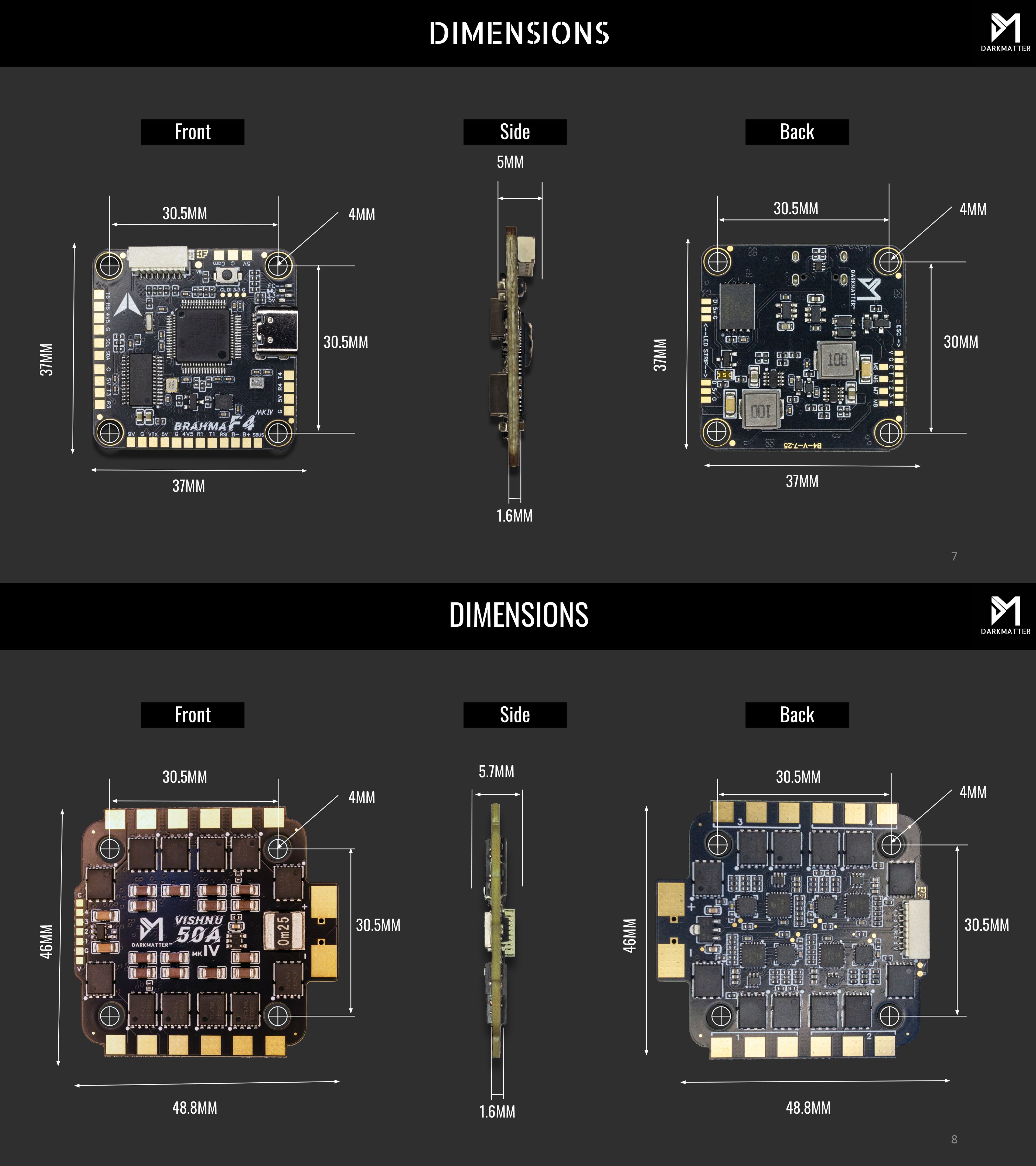

Mounting: 30.5mm X 30.5mm (M4 Hole).
- Proudly Made in India: Embrace the quality and innovation of Indian manufacturing.

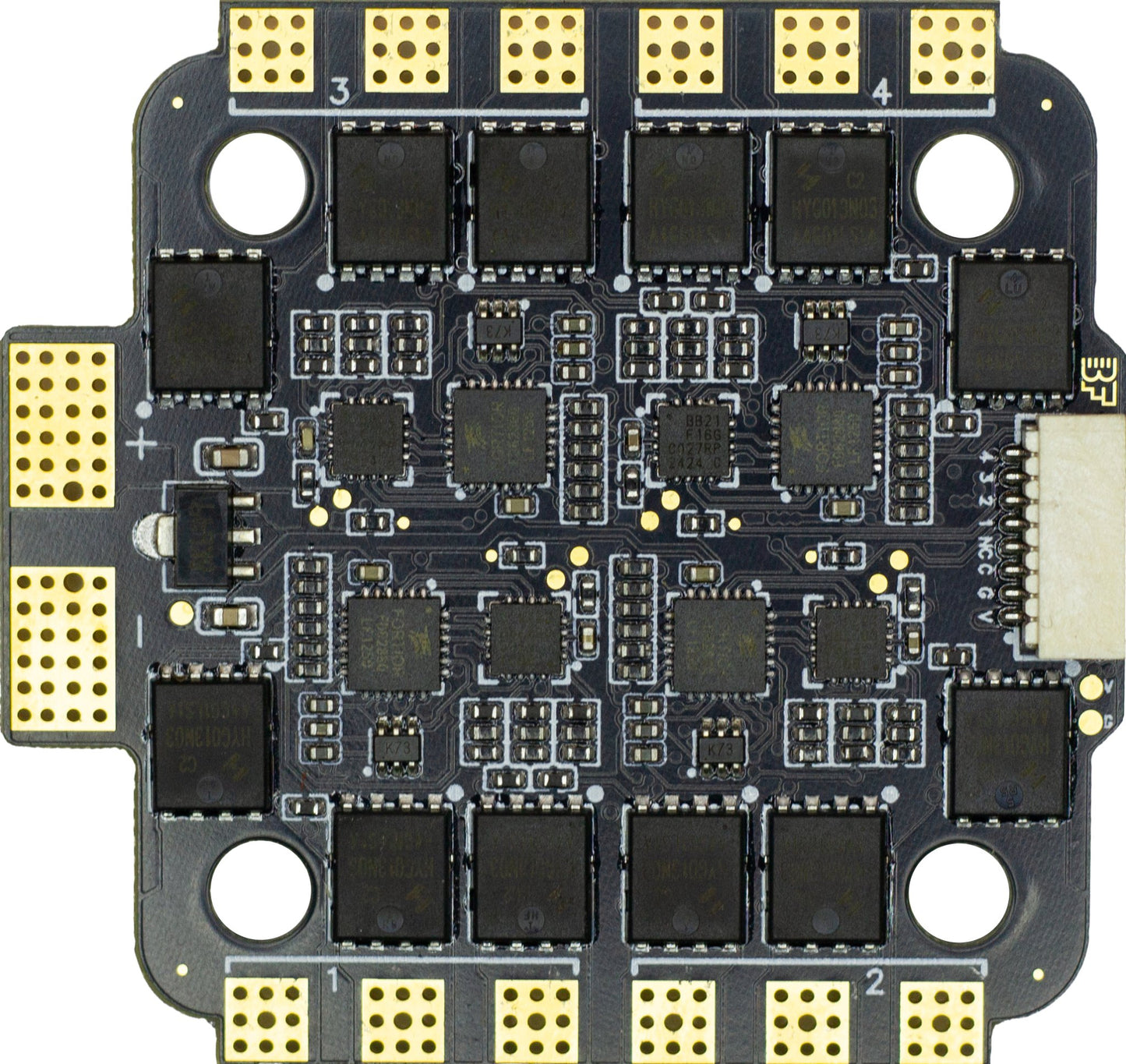

VISHNU 50 MK-III (ESC) Highlights:
- High Current Capability: 50A continuous current, 70A burst.
- Firmware: BLHeli_S / BlueJay
- Wide Voltage Range: Supports 2-6S input.
- DShot300/600 Ready: For smooth, responsive motor control.
- Advanced Current Sensor: Real-time power monitoring.
- Convenient Mounting: 30.5x30.5mm hole pattern with M3 size.
- Made in India Quality: Emphasizes local craftsmanship.
Perfect for both drone enthusiasts and professionals, the Darkmatter Stack 450 is designed to dominate the skies.
Please scroll down for more details.

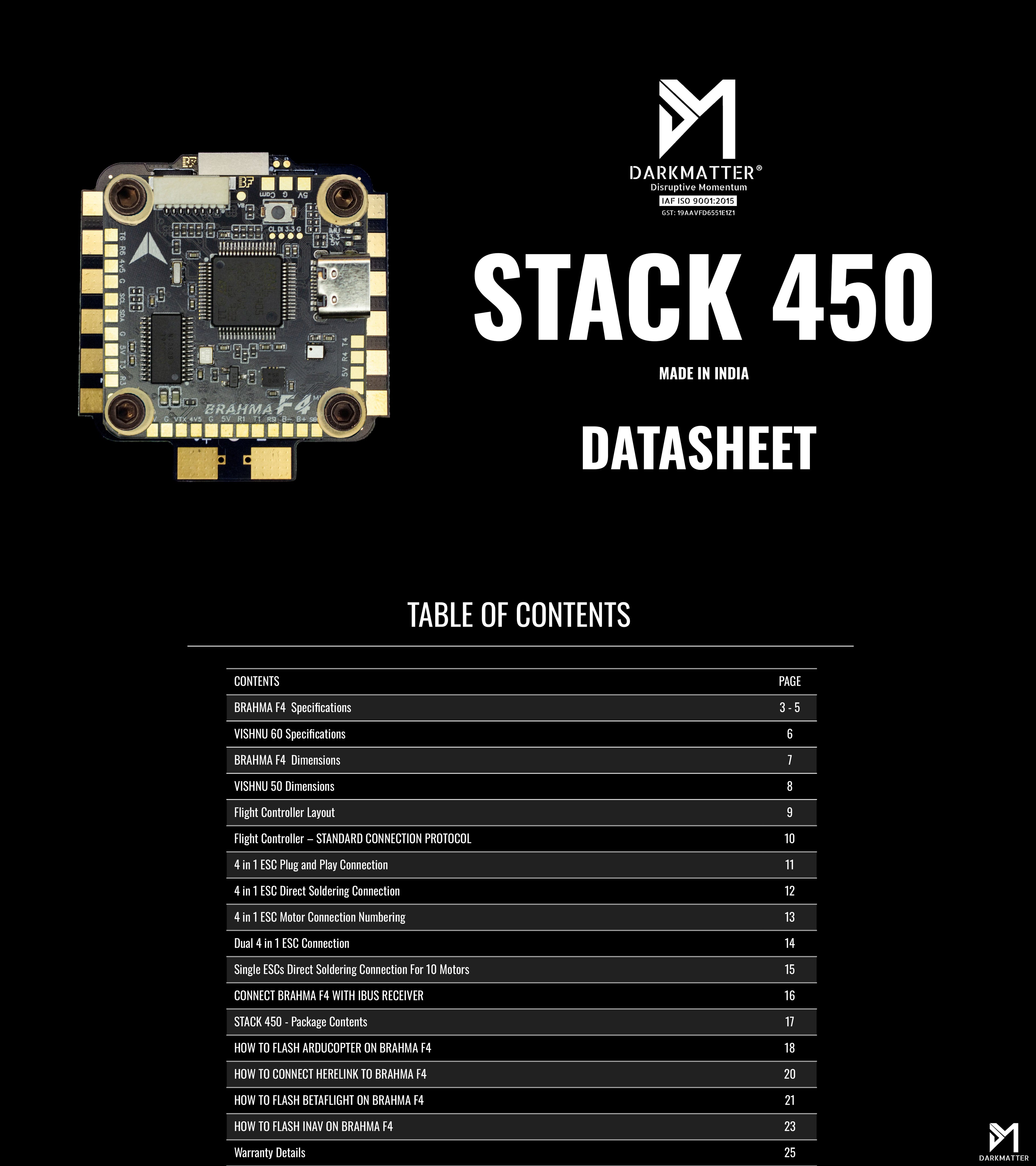

DATASHEET
DATASHEET
Firmwares
Firmwares

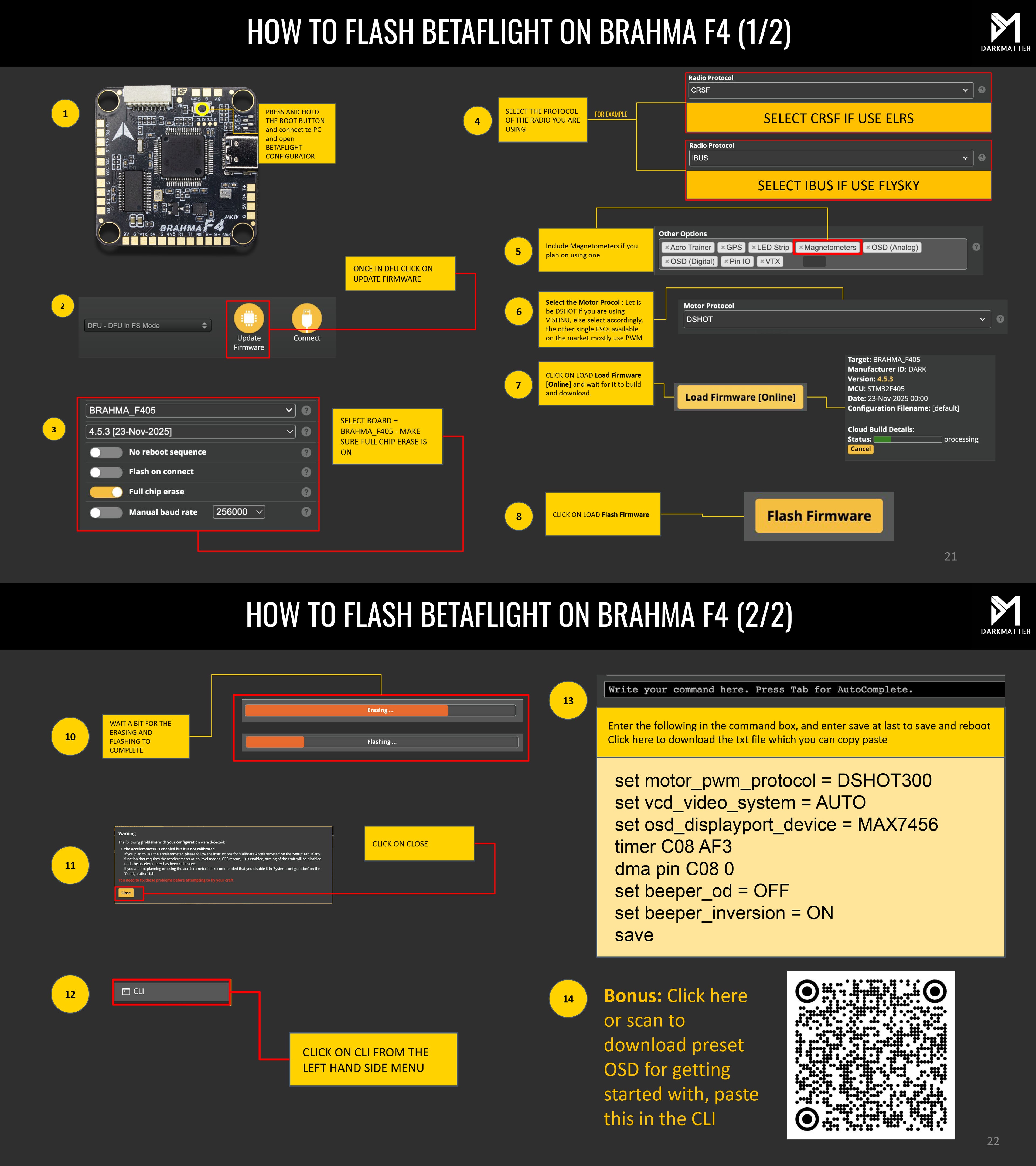

- BetaFlight: Official Firmware can be flashed directly from the configurator by choosing the board BRAHMA_F405

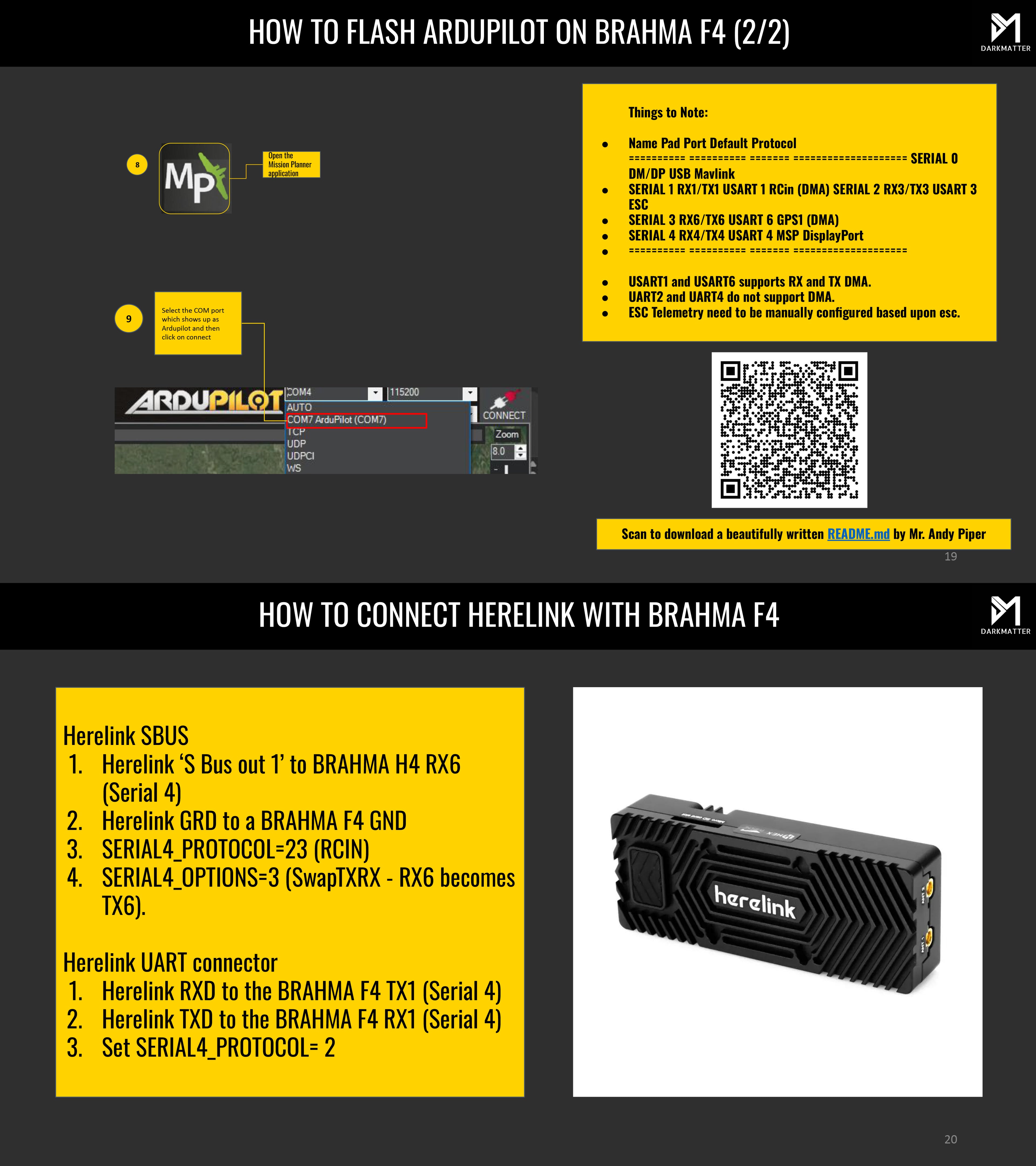

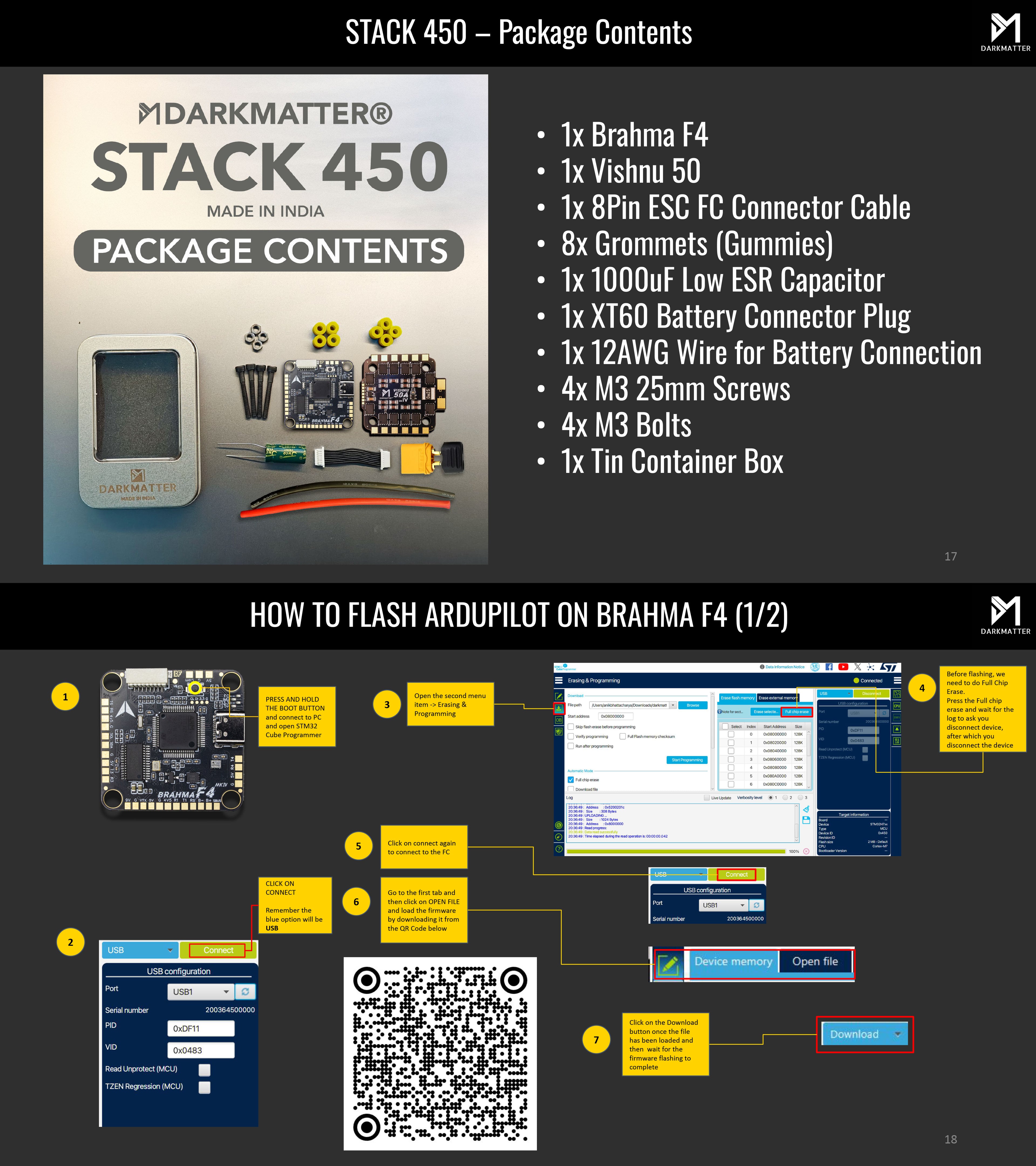

- Ardupilot: Download Darkmatter® Brahma F4 Ardupilot - ArduCopter Firmware
Share







Meet India's First F405 Stack For FPV Drones
Sholder pads came off during soldering. Compass connectivity issue, barometer glitch.
best
I recently bought the stack 450 and I absolutely loved it it performs great but Dark matter now need to improve it's packaging.Overall a great product looking forward to more electronics from them
Brahma F4 FC and Vishnu 4 in 1 ESC are high-quality, made-in-India products that have greatly improved my drone's performance. Awesome experience with DarkMatter and great community support!
High recommended for anyone building FPV drones!
