Vishnu 60 PRO
The actual 3D design of the ESC. Turn it over and look at it from any side.
Where the Vishnu 60 PRO goes.
Four M3 screws come up through the frame on the standard 30.5 × 30.5 mm pattern. Scroll to build it in.
Grommets first.

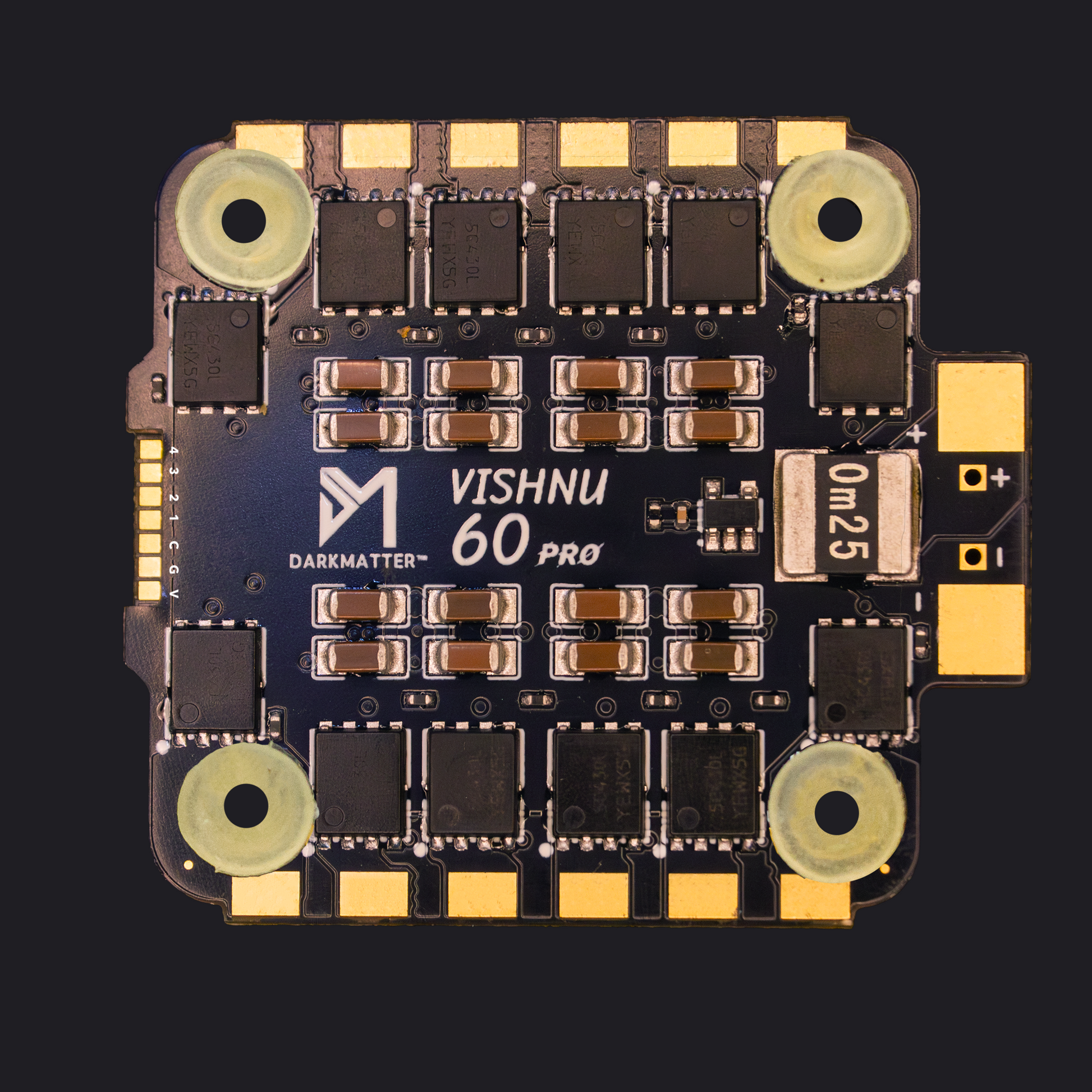

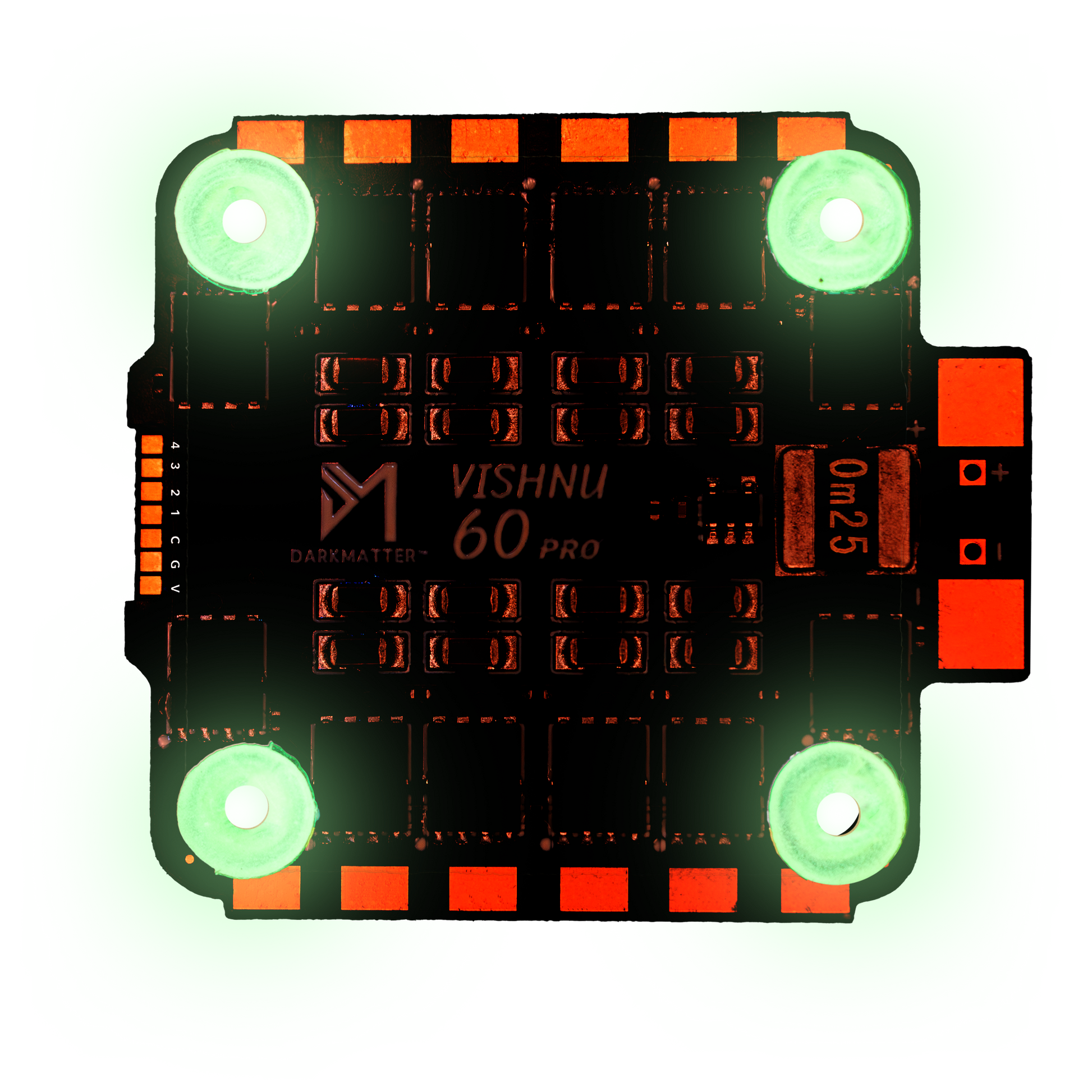

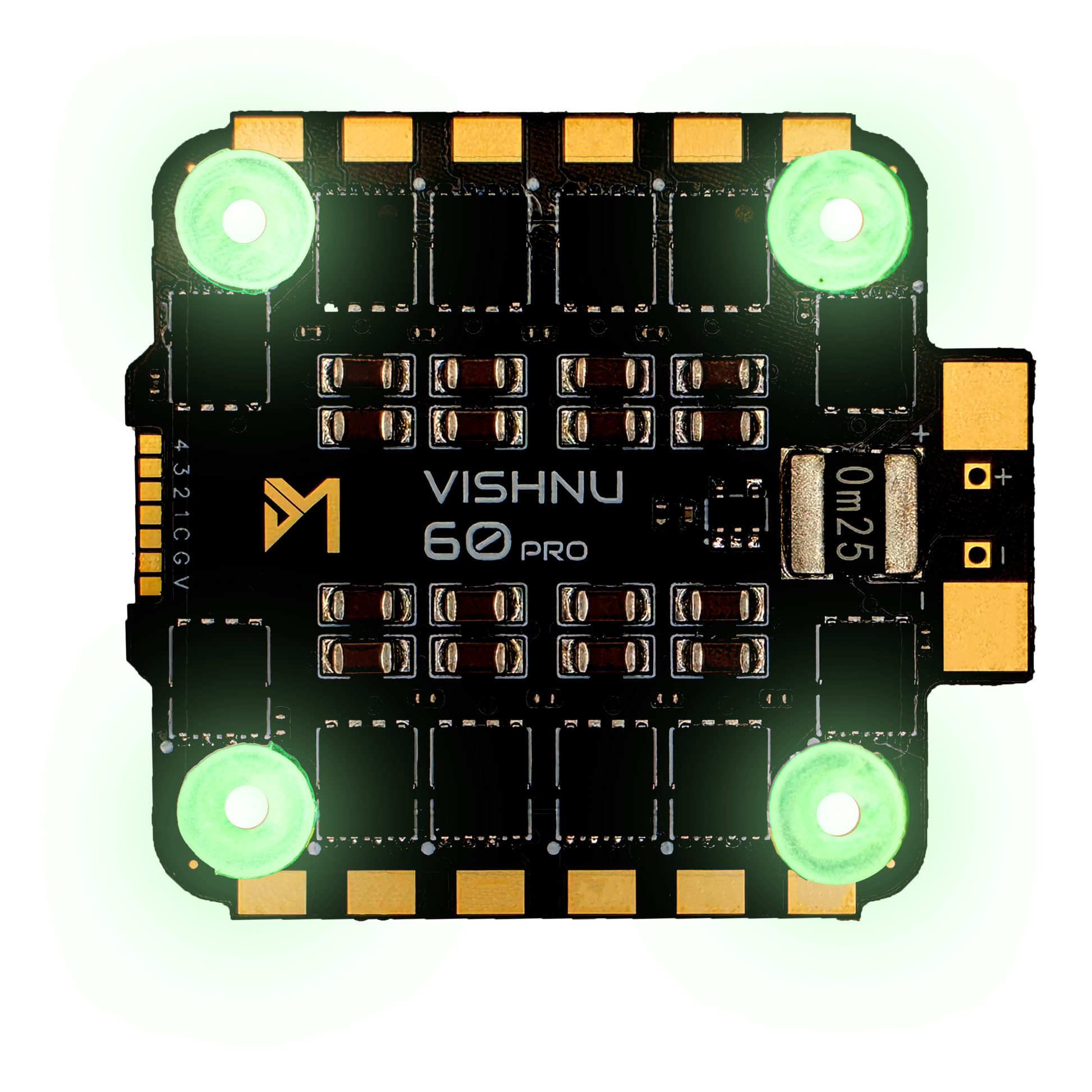

A soft TPE grommet presses into each mounting hole, so frame vibration stays out of the gyros. We injection-mould them ourselves.
Vishnu, then Brahma.
The Vishnu 60 PRO slides down the screws first. The Brahma H7 sits on top. Shown here under a Brahma H7.
Four nuts. One cable.
An 8-pin cable links the two boards. Tighten four nuts, close the frame, and you are wired.
One stack.
Many machines.
Four ESCs.
One board.
Scroll to fly across the real board model.

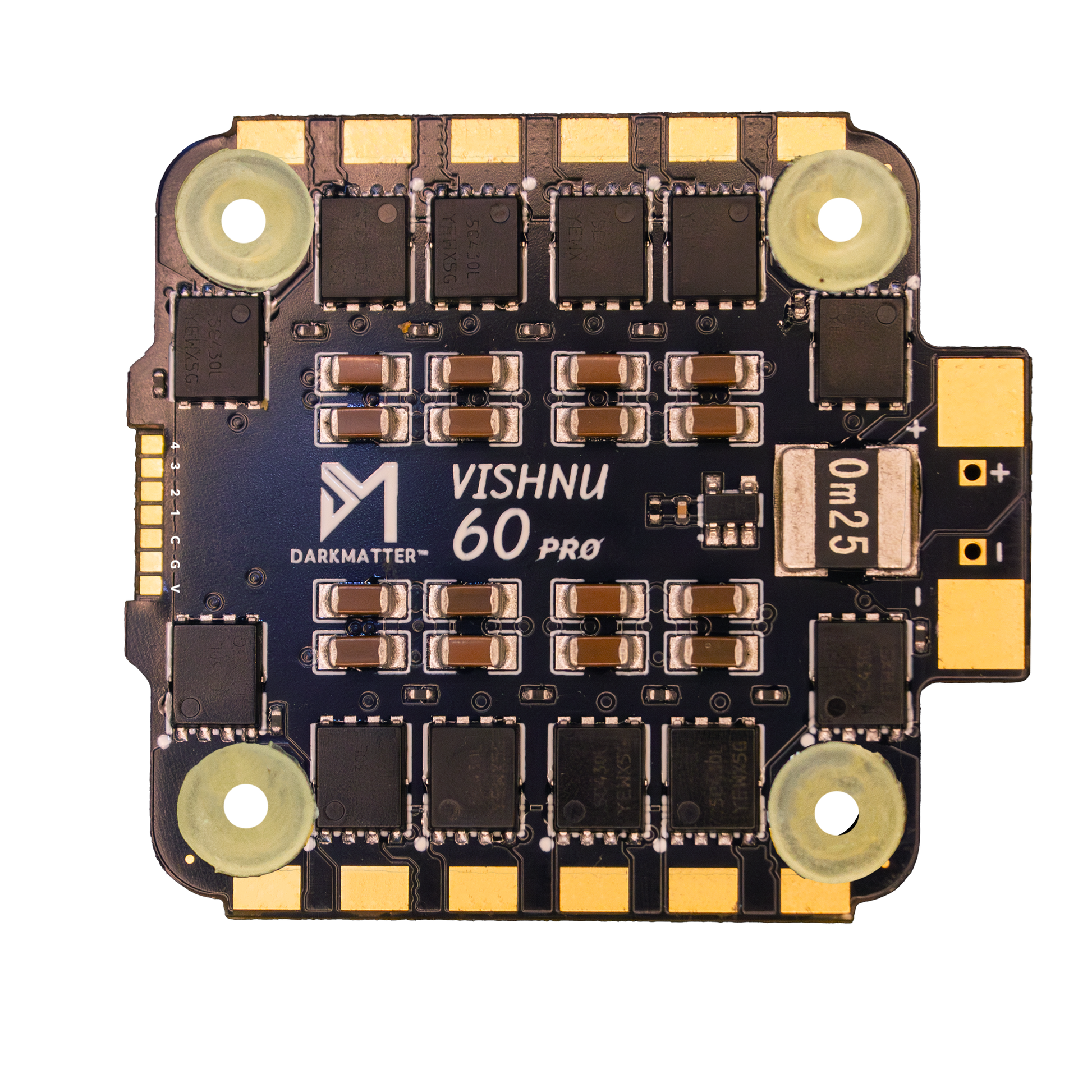

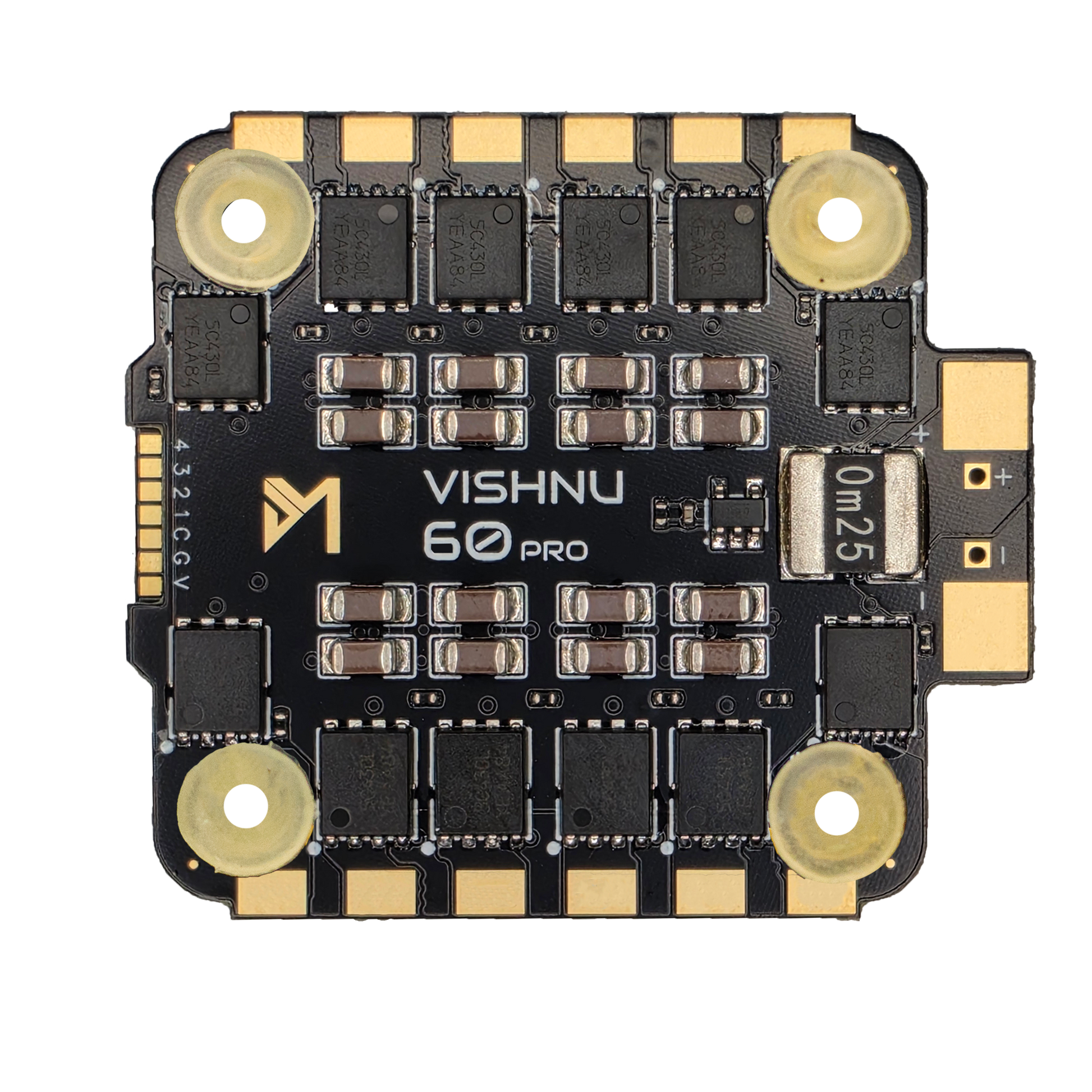

24 MOSFETs
Six for every motor, split across both sides of the board to spread the heat.
Four drivers
One microcontroller and gate driver per motor, running BLHeli_S or BlueJay.
One 8-pin plug
Four motor signals, current and battery voltage on a single cable to any Brahma.
2S-6S LiPo or Li-ion
Wide solder pads for the battery leads.
Three pads per motor
Numbered 1 to 4 on the board, so wiring is hard to get wrong.

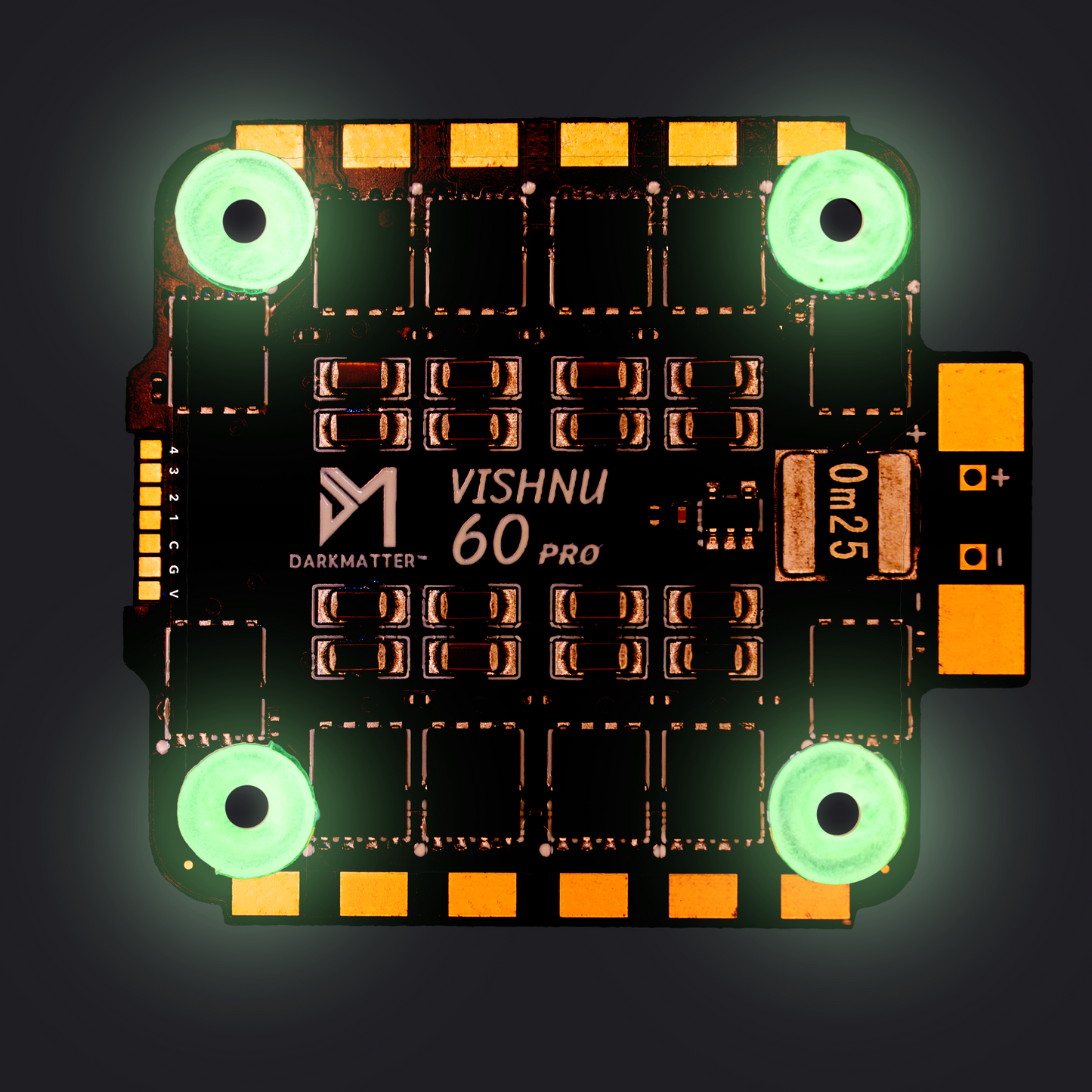

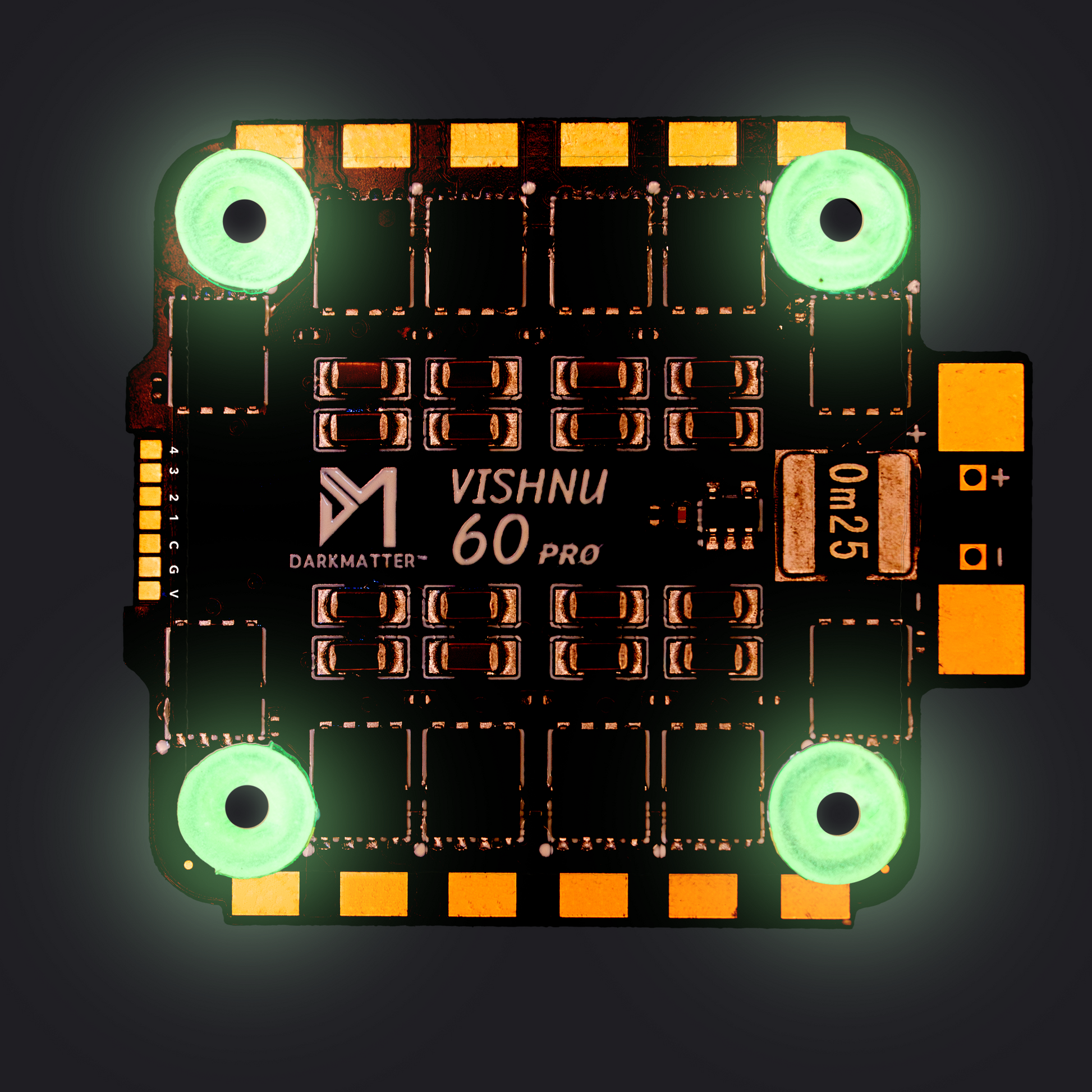

VISHNU
60 PRO
Gold-finished and marked.
Current sensor
A precision shunt measures the whole pack current for the flight controller.
Capacitor bank
Rows of ceramic capacitors right at the MOSFETs keep the rail clean.
Make your ESC sing.
On BlueJay, the Vishnu plays a startup tune through the motors. Compose yours here, then paste it into ESC Configurator.
In ESC Configurator: connect the Vishnu, read settings, open the melody editor, paste, then write. Custom tunes need BlueJay firmware. The sound here is a preview; your motors will sound rougher.
Vishnu 60 PRO specifications
A 4-in-1 ESC rated at 60A continuous per channel and 90A burst, for 2S-6S builds. BLHeli_S or BlueJay, DShot300/600 and a built-in current sensor.
| Type | 4-in-1 ESC |
|---|---|
| Continuous current | 60A per channel, 240A in total |
| Burst current | 90A for 7 seconds |
| Firmware | BLHeli_S or BlueJay (JH_50) |
| Protocol | DShot300 / DShot600 |
| Input | 2S-6S LiPo or Li-ion |
| Current sensor | Built in |
| Motors | Maximum draw below 70–80A |
| Flight controller connection | Plug-and-play 8-pin cable |
| Mounting | 30.5 × 30.5 mm, 4 mm holes |
| Dimensions | 46 × 48.8 × 5.7 mm |
| Weight | 14 g |
| Operating temperature | −20 °C to 70 °C |
| Made in | Designed and manufactured in India (Bally, West Bengal) |
Book your Vishnu 60 PRO
Message us on WhatsApp. We reply with availability, price and delivery time, and help you pick the right parts for your build.
Vishnu 60 PRO user manual
Point at any label to see the wire and the part it belongs to. Step through the flashing guides. Zoom in on anything.
Point at a label or a wire to trace it. Click to keep it lit. Double-click to zoom.
Read the Vishnu 60 PRO manual as text

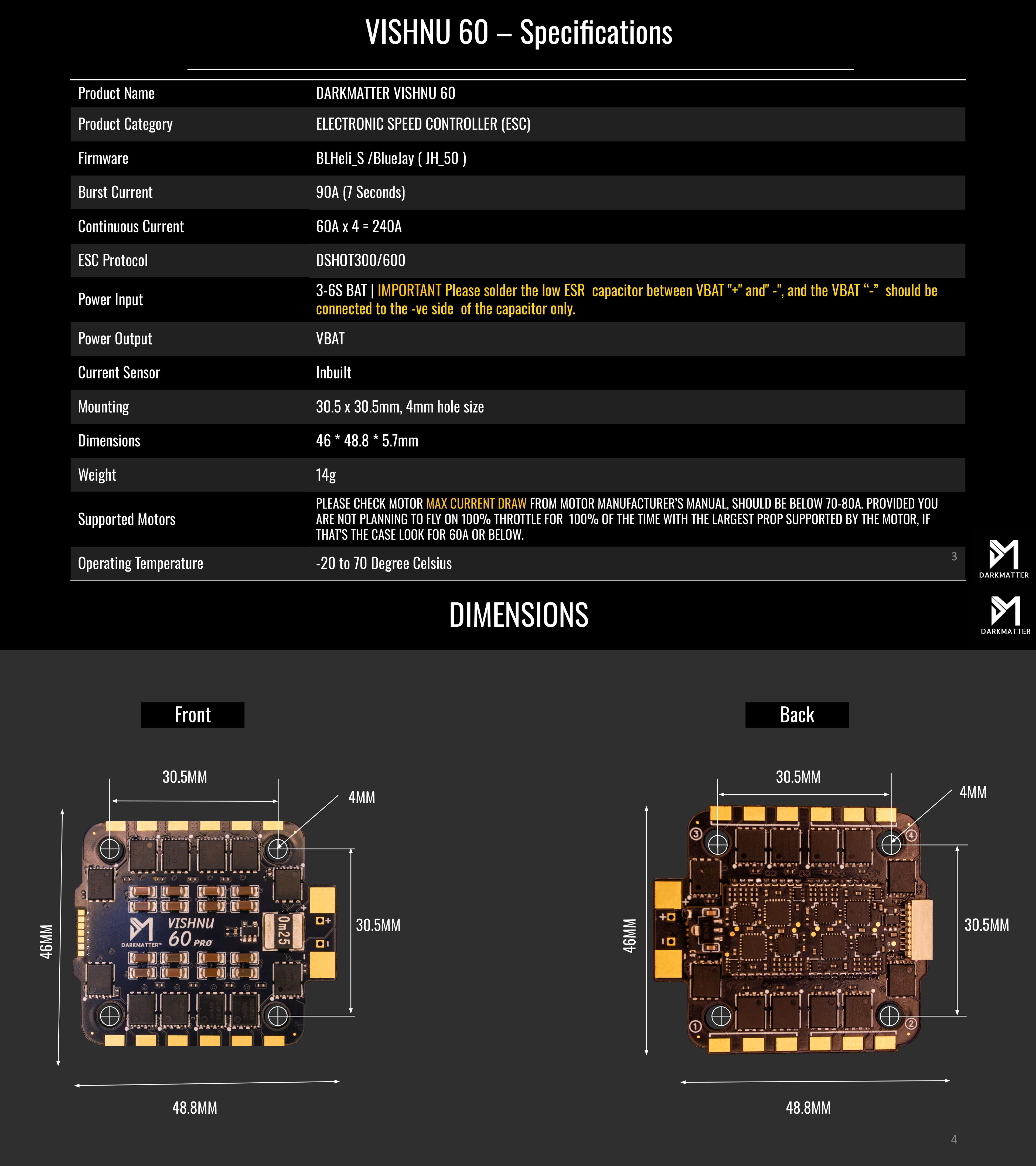

VISHNU 60 PRO: Specifications
| Product Name | Darkmatter® Vishnu 60 PRO |
|---|---|
| Product Category | ELECTRONIC SPEED CONTROLLER (ESC) |
| Firmware | BLHeli_S /BlueJay ( JH_50 ) |
| Burst Current | 90A (7 Seconds) |
| Continuous Current | 60A x 4 = 240A |
| ESC Protocol | DSHOT300/600 |
| Power Input | 2S-6S BAT | IMPORTANT Please solder the low ESR capacitor between VBAT "+" and" -", and the VBAT “-” should be connected to the -ve side of the capacitor only. |
| Power Output | VBAT |
| Current Sensor | Inbuilt |
| Mounting | 30.5 x 30.5mm, 4mm hole size |
| Dimensions | 46 * 48.8 * 5.7mm |
| Weight | 14g |
| Supported Motors | PLEASE CHECK MOTOR MAX CURRENT DRAW FROM MOTOR MANUFACTURER’S MANUAL, SHOULD BE BELOW 70-80A. PROVIDED YOU ARE NOT PLANNING TO FLY ON 100% THROTTLE FOR 100% OF THE TIME WITH THE LARGEST PROP SUPPORTED BY THE MOTOR, IF THAT'S THE CASE LOOK FOR 60A OR BELOW. |
| Operating Temperature | -20 to 70 Degree Celsius |
DIMENSIONS
Front · Back · 30.5MM · 4MM · 46MM · 48.8MM

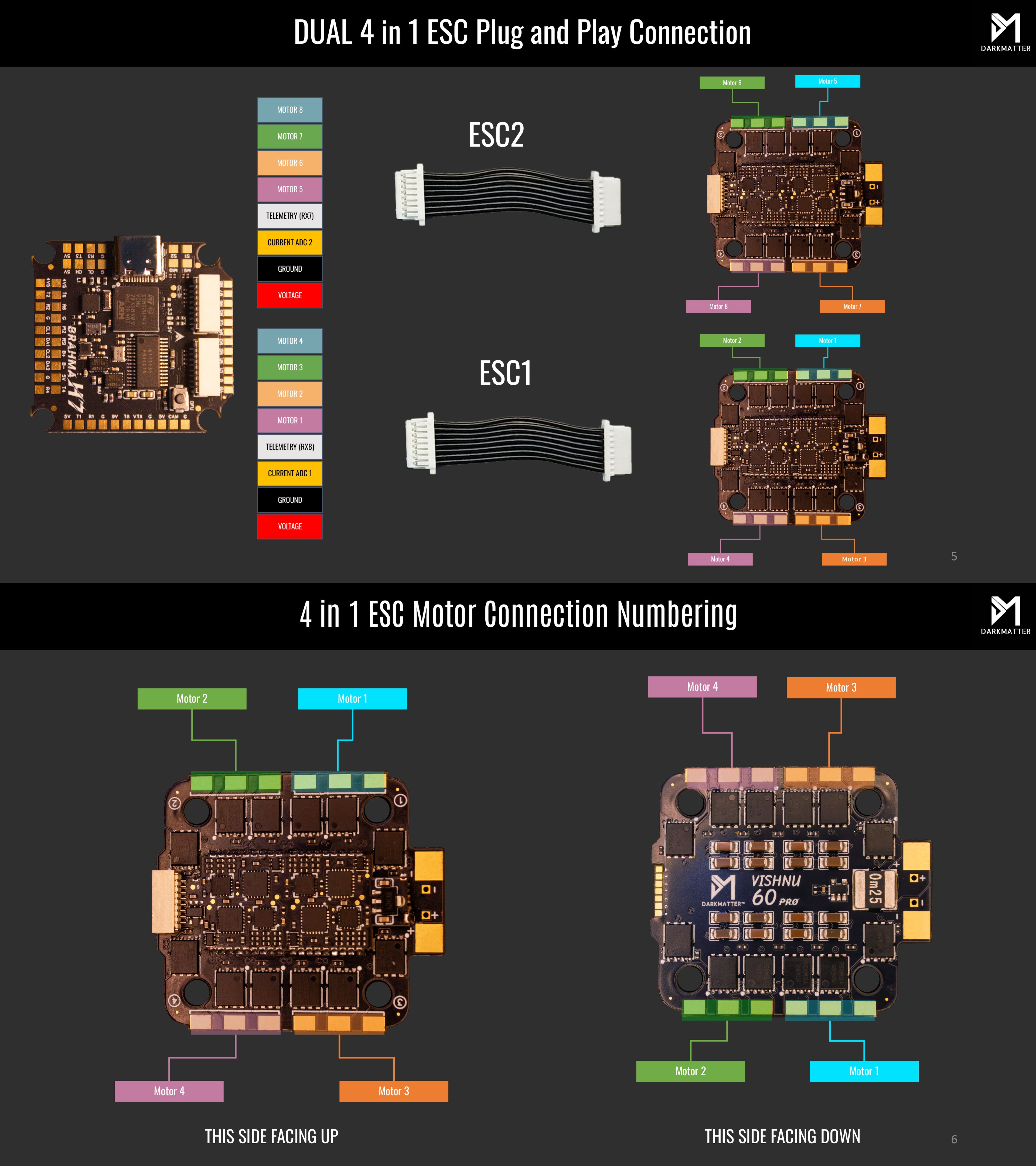

DUAL 4 in 1 ESC Plug and Play Connection
DUAL 4 in 1 ESC Plug and Play Connection · CURRENT ADC 1 · MOTOR 1 · MOTOR 2 · MOTOR 3 · MOTOR 4 · GROUND · VOLTAGE · TELEMETRY (RX8) · Motor 2 · Motor 4 · Motor 3 · Motor 1 · CURRENT ADC 2 · MOTOR 5 · MOTOR 6 · MOTOR 7 · MOTOR 8 · TELEMETRY (RX7) · Motor 6 · Motor 8 · Motor 7 · Motor 5 · ESC1 · ESC2
4 in 1 ESC Motor Connection Numbering
Motor 2 · Motor 4 · Motor 3 · Motor 1 · THIS SIDE FACING UP · THIS SIDE FACING DOWN

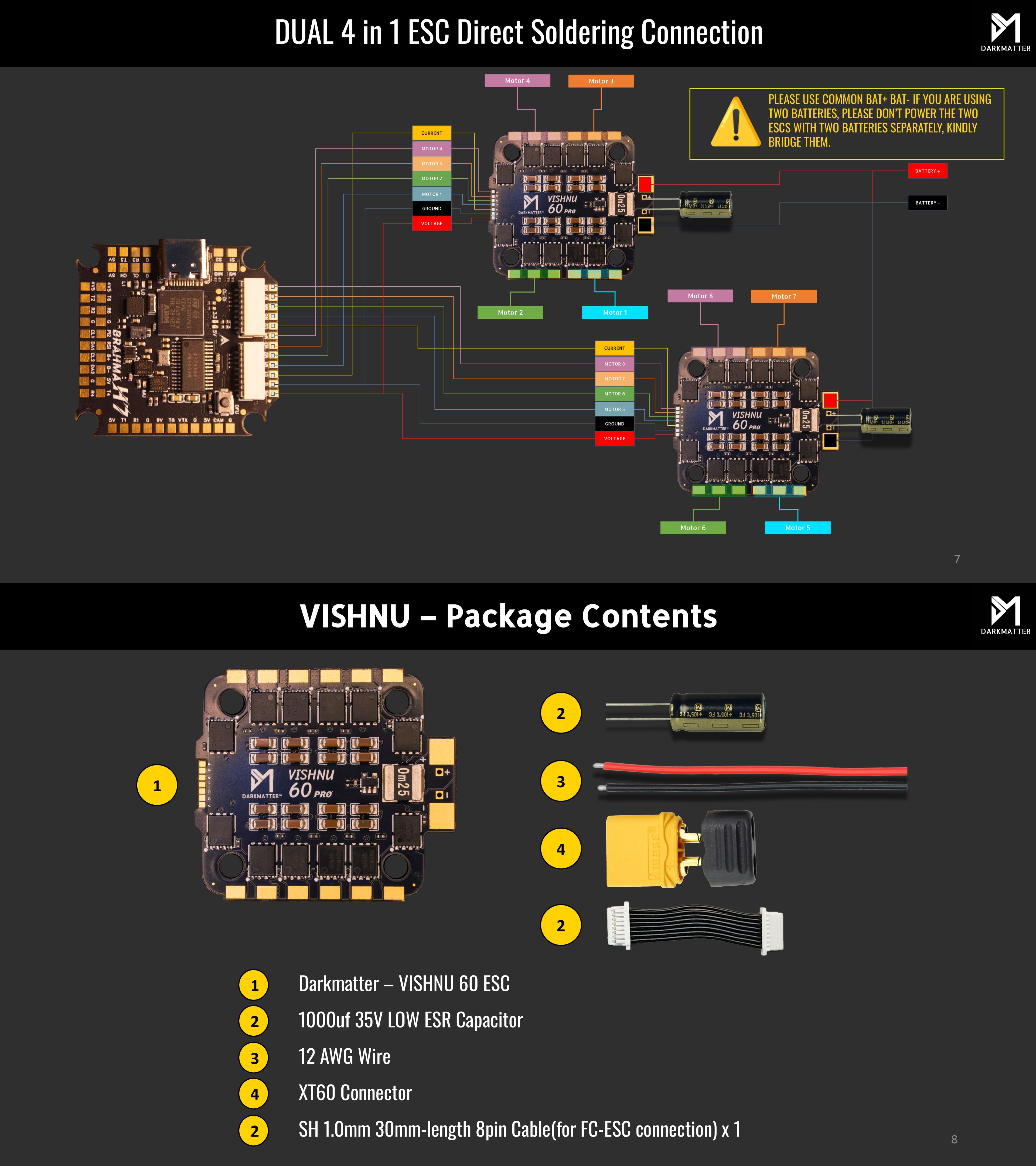

DUAL 4 in 1 ESC Direct Soldering Connection
Motor 6 · Motor 8 · Motor 7 · Motor 5 · CURRENT · MOTOR 8 · MOTOR 7 · MOTOR 6 · MOTOR 5 · GROUND · VOLTAGE · Motor 2 · Motor 4 · Motor 3 · Motor 1 · MOTOR 4 · MOTOR 3 · MOTOR 2 · MOTOR 1 · BATTERY + · BATTERY - · PLEASE USE COMMON BAT+ BAT- IF YOU ARE USING TWO BATTERIES, PLEASE DON’T POWER THE TWO ESCS WITH TWO BATTERIES SEPARATELY, KINDLY BRIDGE THEM. · ⚠️
VISHNU: Package Contents
Darkmatter – VISHNU 60 PRO ESC · 1000uf 35V LOW ESR Capacitor · 12 AWG Wire · XT60 Connector · SH 1.0mm 30mm-length 8pin Cable(for FC-ESC connection) x 1
• Warranty Period: The VISHNU 60 PRO ESC comes with a 6-month warranty for any manufacturing defects from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover • Any physical damage to the product due to usage like water damage, tampered components • Burnt circuit due to wrong wiring or overloading or act of God e.g. a wet grass leaf landing on the electronics and shorting the PWR and GND, or a red ant exploring things at the wrong point in time. • Burning ESC due to spinning motors without propellers beyond 15% during initial testing for motor direction. • Burning ESC due to arming the drone without propellers in Angle mode and expecting it to stop spinning by lowering the throttle, which it will not, as the FC is trying hard to level but it can't, as you guessed it, there is no propeller. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage and the points stated above. If the product is eligible, we will provide a replacement at no additional cost and support you for your build. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +918017193277.
• Warranty Period: The VISHNU 60 PRO ESC comes with a 6-month warranty for any manufacturing defects from the date of purchase. • Proof of Purchase: Please retain and provide a copy of the purchase invoice for warranty claims. • Exclusions: The warranty does not cover • Any physical damage to the product due to usage like water damage, tampered components • Burnt circuit due to wrong wiring or overloading or act of God e.g. a wet grass leaf landing on the electronics and shorting the PWR and GND, or a red ant exploring things at the wrong point in time. • Burning ESC due to spinning motors without propellers beyond 15% during initial testing for motor direction. • Burning ESC due to arming the drone without propellers in Angle mode and expecting it to stop spinning by lowering the throttle, which it will not, as the FC is trying hard to level but it can't, as you guessed it, there is no propeller. • Warranty Process: If a claim is made within the warranty period, we will examine the PCB for physical damage and the points stated above. If the product is eligible, we will provide a replacement at no additional cost and support you for your build. Your satisfaction and product performance are our top priorities. For any warranty-related inquiries, please contact us at +918017193277. · VISHNU 60 PRO - 6 Months Warranty
